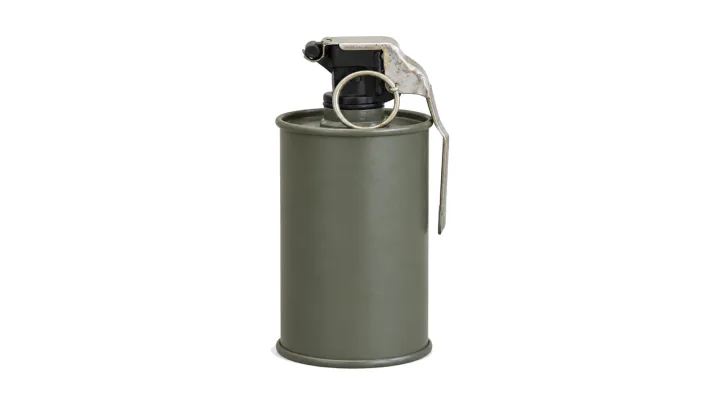

BRZ Incendiary Hand Grenade
Incendiary hand grenade with steel body loaded with 530 g of thermite mixture burning 25 s at 2475 K, able to burn through 5 mm plate.
- Diameter
- 60 mm
- Height
- 151 mm
- Mass of the grenade
- 670 +/- 5 g
Supply domain
Grenades & 40 mm
This domain lists 66 line items: hand-thrown grenades, muzzle-launched rifle grenades, rounds for underbarrel and automatic grenade launchers, low-velocity 40x46 mm rounds, medium-velocity 40x51 mm rounds, shoulder-launched 40 mm rounds, and signal and riot-control cartridges of 26.5 mm and 38 mm. Each entry lists whichever of the designation, calibre and mass its data sheet records, together with the range, delay, burning or smoke figures given there and, where the source states it, the packing quantity used for shipment planning.
- Line items
- 66
- Calibres
- 11
- Natures
- 7
- Standards
- NATO · Eastern · Police
By calibre
Fragmentation, incendiary and anti-armour / anti-armor hand grenades
Explore this groupThe M-75 and M-84 are fragmentation hand grenades built on a plastic body loaded with steel balls and closed by a mechanical delay fuze. The BRK is a shaped-charge grenade quoted against armour / armor, the BRZ carries a thermite mixture in a steel body, and the TG-1 carries a thermobaric mixture in an aluminium body. Every record states a designation, the principal dimensions and the mass of the filling, and for four of the five the delay time of the fuze. Packing is quoted per model wherever the source data sheet records it.

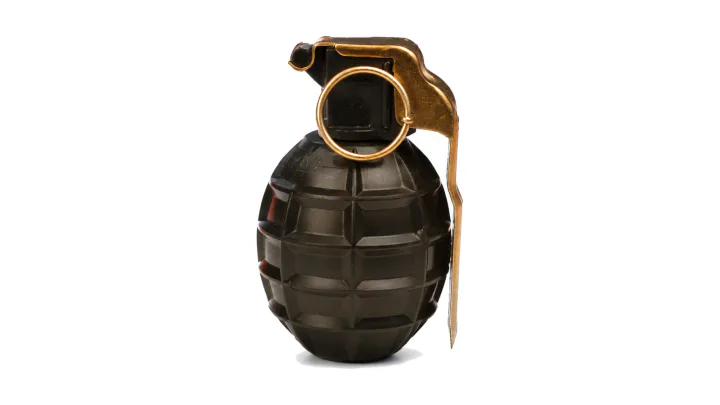

M-75
M-75 hand grenade
M-75 fragmentation hand grenade with a 36 g plastic-explosive charge, a plastic body containing 2.5–2.9 mm steel balls and a mechanical 3–4,4 s delay fuze.
- Fuze
- mechanical, 3–4,4 s delay
- Grenade mass
- 355 g
- Dimensions
- Ø 57 × 89 mm
M-84

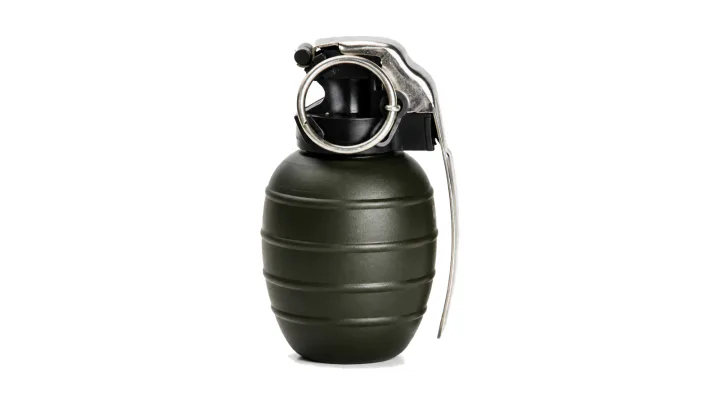

M-84 Hand Grenade
Fragmentation hand grenade with plastic body loaded with steel balls, 95 g plastic explosive charge and mechanical delay fuze.
- Mass
- 480 g
- Fuze
- Mechanical with delay of 3.0 to 5.7 s
- Dimensions
- dia 60 x 115 mm
TG-1

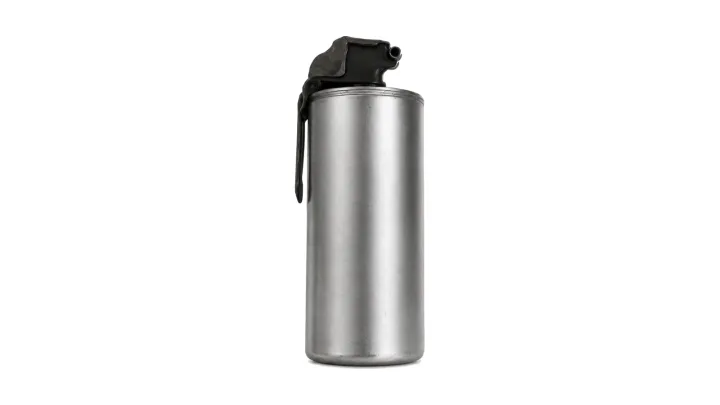

TG-1 Thermobaric Hand Grenade
Thermobaric hand grenade with aluminium body loaded with 0.3 kg of thermobaric mixture, for use in enclosed and semi-enclosed spaces.
- Height
- 133 mm
- Diameter
- 60 mm
- Excessive pressure in shock front at 1 m
- not less than 1 atm (98.07 kPa)
BRK
BRK shaped-charge anti-tank hand grenade
A hand-thrown shaped-charge grenade intended to disable or destroy tanks and other stationary or moving armour, defeating the armour with its shaped-charge jet and acting on the interior with the remaining hot gases, and requiring no tube or launcher.
- Mass
- 1 kg
- Length
- 399 mm
- Warhead diameter
- 74.5 mm
Smoke hand grenades and smoke pot grenades
Explore this groupThis group holds the screening grenades of the domain: a 45 mm grenade of 250 g offered in white, red, green, orange, yellow and blue smoke, a 53 mm grenade of 450 g, the 81 mm GD2 of 2340 g and the 82 mm smoke pot M79 of 1500 g. Every record gives calibre, mass, length and a delay time. The GD2 and the M79 additionally quote smoke duration, screen height and diameter and a range figure; the two smaller items are listed by calibre alone, without a model designation.
—

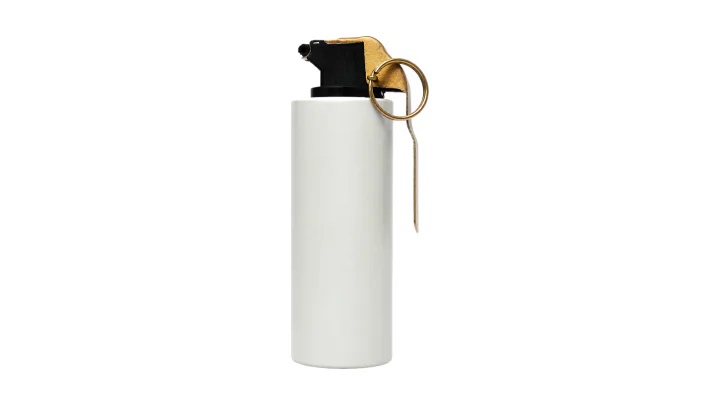

45 mm smoke hand grenade
45 mm hand grenade producing white or coloured smoke after a delay of 2.5 to 5 seconds.
- Mass
- 250 g
- Caliber
- 45 mm
- Length
- 136 mm
—

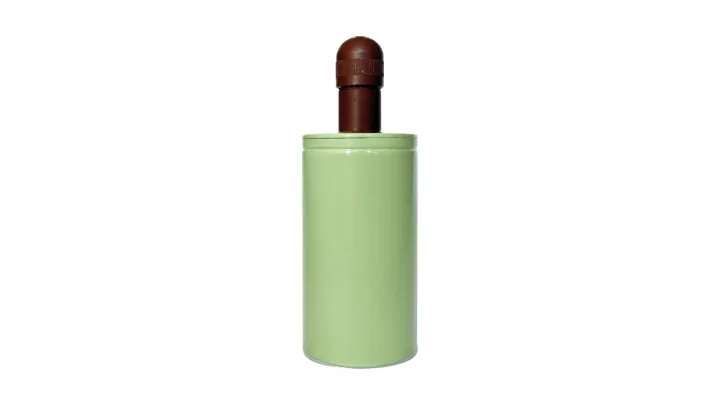

53 mm smoke hand grenade
53 mm hand grenade weighing 450 g that produces smoke after a delay of 3.5 to 5.5 seconds.
- Mass
- 450 g
- Caliber
- 53 mm
- Length
- 165 mm
GD2

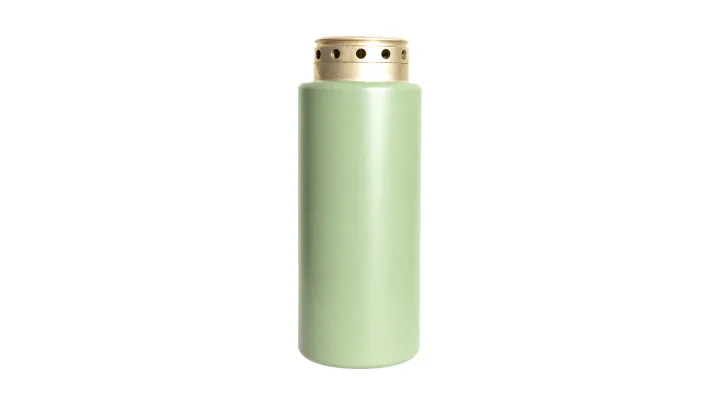

81 mm smoke hand grenade GD2
81 mm smoke grenade GD2 that after a delay of about 9.5 seconds emits smoke for 100 seconds, building a screen 3 to 10 m high and 10 to 30 m across at ranges up to 250 m.
- Caliber
- 81 mm
- Grenade mass
- 2340 g
- Length
- 217 mm
M79

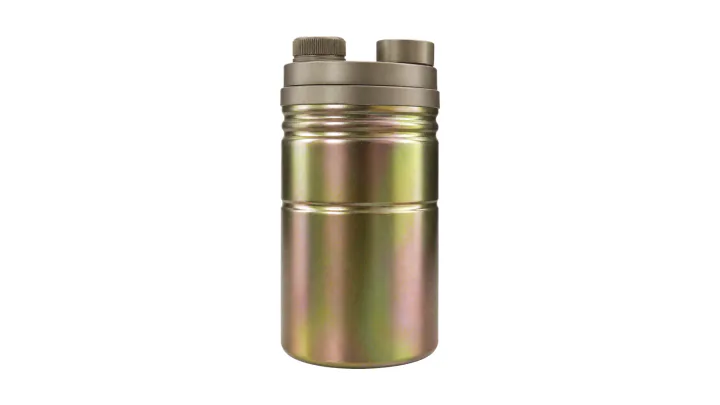

82 mm smoke pot grenade M79
An 82 mm smoke pot grenade for creating smoke curtains, fired from 82 mm smoke box launchers or activated manually with a mechanical fuze.
- Calibre
- 82 mm
- Grenade mass
- 1500 g
- Length
- 150 mm
CS smoke and stun and flash hand grenades
Explore this groupThree hand-thrown items are grouped here: a 40 mm grenade with a three-part CS smoke charge of 265 g, the 40 mm three-part stun and flash grenade M13 of 415 g, and a 45 mm stun and flash grenade of 145 g. Each record quotes calibre, mass, length, a delay time and an operating temperature range. The two stun and flash items quote a sound intensity of 120 dB; the CS item quotes a smoke duration of 20 s in place of that figure. Only the M13 carries a model designation.
—
40 mm three-part CS smoke hand grenade
A 40 mm hand grenade with a three-part CS smoke charge burning for about 20 seconds, used by special forces of the army and the police for anti-terrorist actions and for preventing and disabling riots.
- Mass
- 265 g
- Calibre
- 40 mm
- Length
- 170 mm
M13
40 mm three-part stun and flash hand grenade M13
A 40 mm hand grenade with a three-part flash-bang charge that produces a 120 dB report and flash to temporarily disable people in enclosed and open areas, used by special military and police forces for anti-terrorist actions, riot control and the prevention of disorder.
- Mass
- 415 g
- Calibre
- 40 mm
- Length
- 164 mm
—

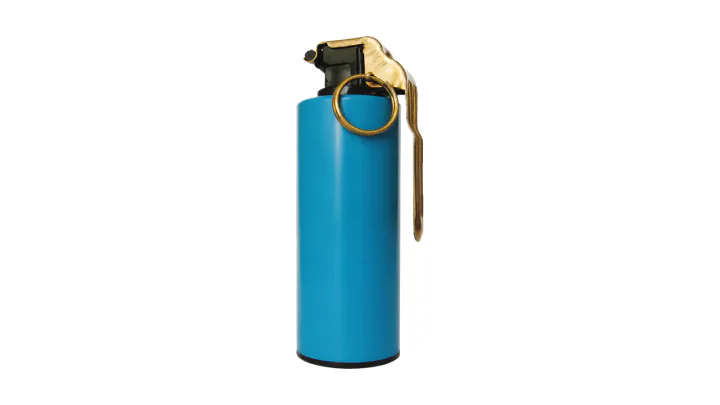

45 mm stun and flash hand grenade
A 45 mm hand grenade producing a 120 dB report and flash to temporarily disable people in enclosed and open areas, used by special military and police forces for anti-terrorist actions, riot control and the prevention of disorder.
- Mass
- 145 g
- Calibre
- 45 mm
- Length
- 138 mm
High explosive and anti-armour / anti-armor rifle grenades
Explore this groupThese seven line items are launched from the muzzle of a rifle fitted with a grenade attachment. Five are bullet-trap grenades listed against ball ammunition, the 30 mm M99 and M91 P1 and the 40 mm M02, M03 and M08; the 30 mm fragmentation M60 P1 and the 60 mm anti-tank M60 P1 are listed against a 7.62 mm grenade cartridge. Every record gives calibre, a muzzle velocity and a maximum range for each launching cartridge named, and most add a length, the explosive mass and a fuze figure.
M60 P1

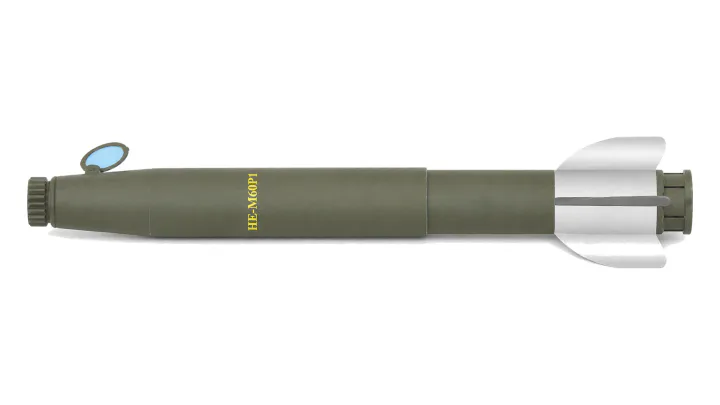

30 mm Fragmentation Rifle Grenade
30 mm fragmentation rifle grenade launched by a 7.62 mm grenade cartridge, effective range 200 m and maximum range 400 m.
- Effective range
- 200 m
- Calibre
- 30 mm
- Grenade mass
- 520 g
M99
30 mm HE Bullet-Trap Rifle Grenade
30 mm bullet-trap high explosive rifle grenade with 65 g charge and 10 m lethal radius, launched by ball ammunition without a blank.
- Calibre
- 30 mm
- Explosive mass
- 65 g
- Length
- 315 mm
M91 P1

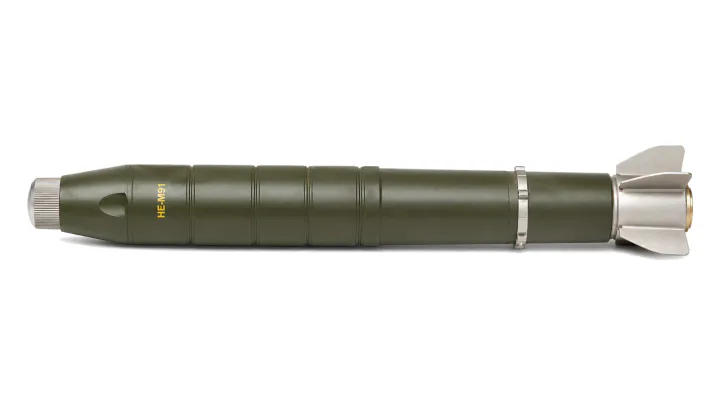

30 mm HE bullet-trap rifle grenade M91 P1
A 30 mm fragmentation rifle grenade with a bullet trap, fired from the muzzle with ball ammunition and fitted with an impact superquick fuze.
- Mass
- 555 g
- Fuze
- impact, superquick action (UT - M91, P1)
- Caliber
- 30 mm
M03

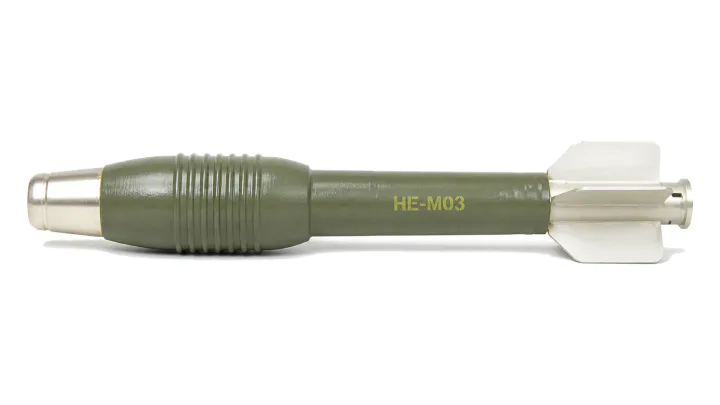

40 mm HE Bullet-Trap Rifle Grenade
40 mm bullet-trap high explosive rifle grenade with 48 g charge, 10 m lethal radius and self-destructing fuze.
- Calibre
- 40 mm
- Grenade mass
- 450 g
- Explosive mass
- 48 g
M02
40 mm HE bullet-trap rifle grenade M02
A 40 mm fragmentation rifle grenade with a bullet trap and an impact superquick fuze with 15 s self-destruction, weighing 450 g.
- Mass
- 450 g
- Fuze
- impact, superquick action, self destruction (UT - M00, SD)
- Caliber
- 40 mm
M08

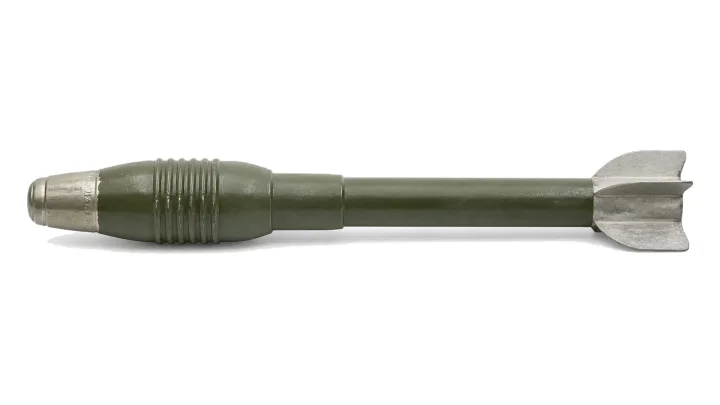

40 mm HEDP Bullet-Trap Rifle Grenade
40 mm bullet-trap high explosive dual purpose rifle grenade with 42 g charge and 10 m lethal radius.
- Calibre
- 40 mm
- Grenade mass
- 405 g
- Explosive mass
- 42 g
M60 P1

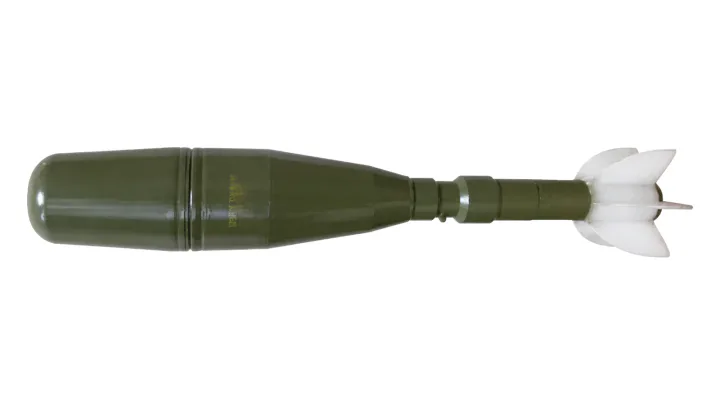

60 mm Anti-Tank Rifle Grenade
60 mm shaped-charge anti-tank rifle grenade penetrating 200 mm of homogeneous armour, effective range 150 m.
- Effective range
- 150 m
- Calibre
- 60 mm
- Grenade mass
- 610 g
Smoke, illuminating and practice rifle grenades
Explore this groupThis group covers the rifle grenades whose payload screens, lights or trains rather than fragments. The 40 mm smoke grenades M04 and M62 each quote a delay of 7.5 s and 80 s of smoke; the 40 mm parachute illuminating grenades M08 and M62 each quote a star burning 25 s at 80000 cd with the parachute opening at 250 m when fired at 45 degrees; and the 30 mm target practice M99 matches the mass and dimensions of the high explosive M99. Every record gives length, operating temperature and a packing quantity.
M99
30 mm TP Bullet-Trap Rifle Grenade
30 mm bullet-trap target practice rifle grenade matching the mass and dimensions of the HE M99 grenade.
- Calibre
- 30 mm
- Length
- 315 mm
- Muzzle velocity with 5.56x45 mm SS 109
- 58 m/s
M08
40 mm Illuminating Bullet-Trap Rifle Grenade
40 mm bullet-trap parachute illuminating rifle grenade burning 25 s at 80000 cd, parachute opening at 250 m when fired at 45 degrees.
- Calibre
- 40 mm
- Grenade mass
- 500 g
- Length
- 370 mm
M62
40 mm Illuminating Rifle Grenade M62
40 mm parachute illuminating rifle grenade of 400 g burning 25 s at 80000 cd, parachute opening at 250 m when fired at 45 degrees.
- Calibre
- 40 mm
- Grenade mass
- 400 g
- Length
- 330 mm
M04
40 mm Smoke Bullet-Trap Rifle Grenade
40 mm bullet-trap smoke rifle grenade emitting for 80 s after a delay of 7.5 s.
- Calibre
- 40 mm
- Grenade mass
- 580 g
- Length
- 370 mm
M62
40 mm Smoke Rifle Grenade M62
40 mm smoke rifle grenade of 475 g launched by a 7.62 mm grenade cartridge to 350 m, with 7.5 s delay.
- Calibre
- 40 mm
- Grenade mass
- 475 g
- Length
- 330 mm
High explosive, dual purpose and incendiary underbarrel launcher rounds
Explore this groupThese six 40 mm rounds are listed for underbarrel grenade launchers. Four are high explosive, the M03 and M06 and the bounding M07 and M12; the M04 is a dual purpose round quoted at 60 mm of steel plate penetration, and one incendiary round with 80 g of incendiary mixture is listed without a model designation. Every record names the GP-25 launcher, gives a muzzle velocity between 75 and 78 m/s and a maximum range of 400 m, and states the arming distance or muzzle safety distance of its fuze.
M03

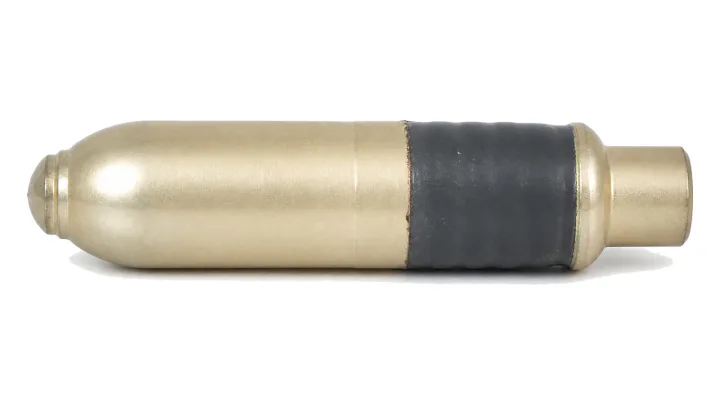

40 mm HE Underbarrel Grenade Round
40 mm high explosive round for underbarrel grenade launchers, with self-destructing fuze, lethal radius 6 m and range 400 m.
- Max range
- 400 m
- Muzzle velocity
- 78 m/s
- Calibre
- 40 mm
M06

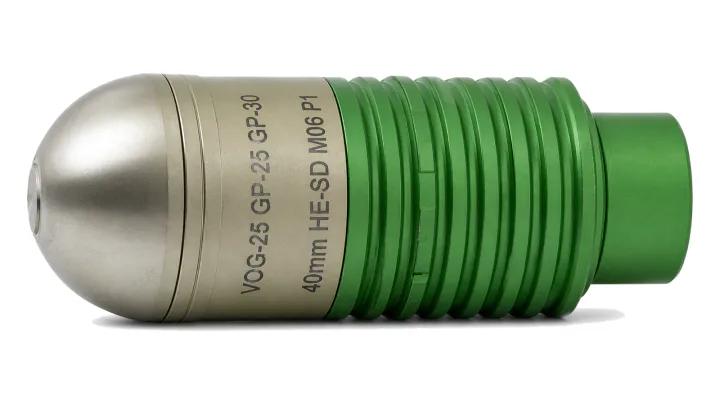

40 mm HE Underbarrel Grenade Round M06
40 mm high explosive underbarrel launcher round differing from the M03 in a shorter fuze arming distance of 10 to 40 m.
- Max range
- 400 m
- Muzzle velocity
- 78 m/s
- Calibre
- 40 mm
M12

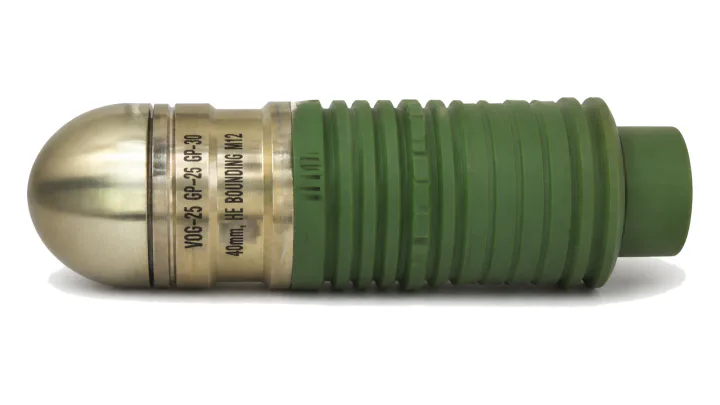

40 mm HE bounding underbarrel grenade round M12
A 40 mm high-explosive bounding round for the GP-25 and GP-30 underbarrel grenade launchers that bounces and detonates in the air to increase fragment effect against personnel and against technical and material means.
- Max range
- 400 m
- Muzzle velocity
- 78 m/s
- Calibre
- 40 mm
M04

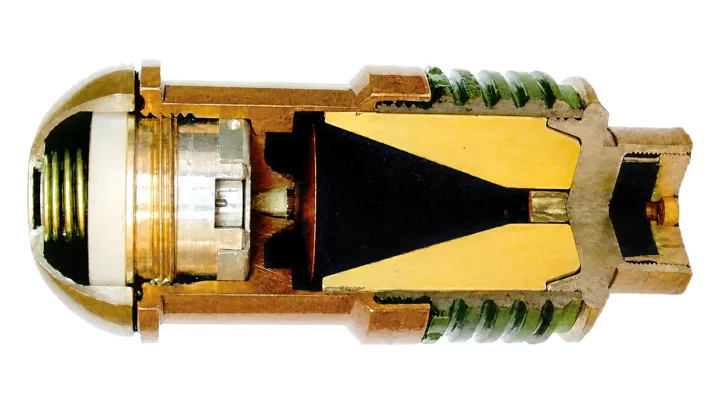

40 mm HEDP Underbarrel Grenade Round
40 mm high explosive dual purpose underbarrel launcher round penetrating 60 mm of steel plate with a lethal radius of at least 5 m.
- Max range
- 400 m
- Muzzle velocity
- 78 m/s
- Calibre
- 40 mm

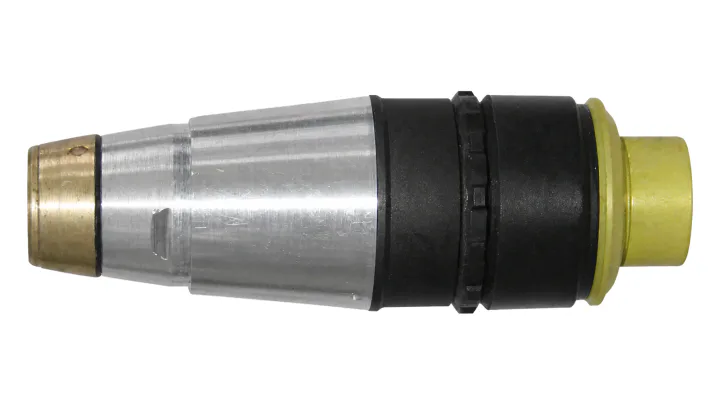

M07
40 mm bounding HE underbarrel grenade round M07
A 40 mm round with a blasting bounding projectile designed for use against personnel in open and sheltered space, fired from the GP-25 and GP-30 under-barrel grenade launchers fitted to AK-pattern rifles (AK-74, AKS-74, AKM, AK-101) and to M21 rifles, directly from 50 to 400 m and indirectly on a curved trajectory from 200 to 350 m.
- Muzzle velocity
- 75 m/s
- Fuze
- UT, M07
- Caliber
- 40 mm
—

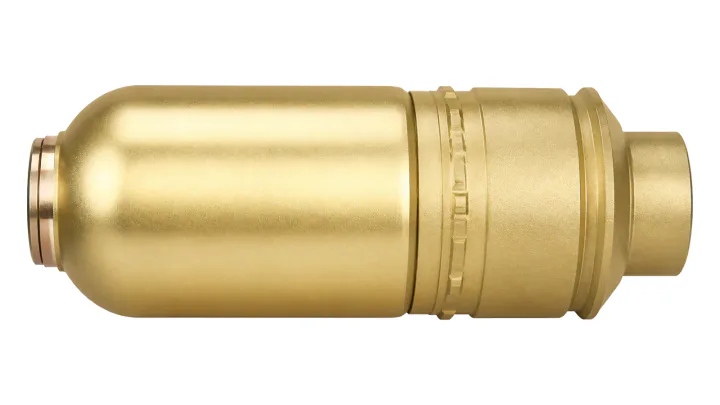

40 mm incendiary underbarrel grenade round
A 40 mm round with an incendiary projectile intended for setting fire to easily inflammable materials and for wounding personnel, its fragments of incendiary mixture acting at distances up to 5 m, fired from the 40 mm GP-25 under-barrel grenade launcher fitted to AK-pattern rifles (AK-74, AKS-74, AKM, AK-101) and to M21 rifles, directly from 50 to 400 m and indirectly on a curved trajectory from 200 to 350 m.
- Muzzle velocity
- 76.5 m/s
- Fuze
- UT, M02 SP
- Caliber
- 40 mm
Smoke, illuminating and practice underbarrel launcher rounds
Explore this groupThree 40 mm underbarrel rounds carry a payload other than a high explosive charge. The M04 smoke round emits for 30 s in white, red, green or yellow at ranges of 50 to 400 m; the M04 illuminating round deploys a parachute star burning 20 s at 80000 cd; and the M03 practice round carries a rubber head of 80 Shore hardness and matches service ballistics to 400 m. All three records name the 40 mm GP-25, GP-30 and BGP-40 underbarrel launchers and an operating range of -30 to +50 degrees C.
M04

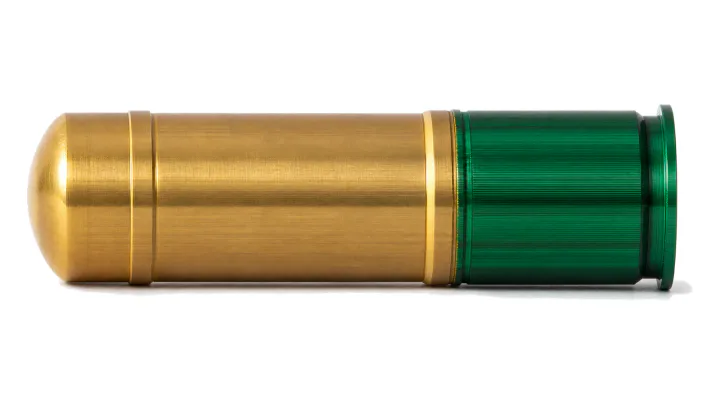

40 mm Illuminating Parachute Underbarrel Round
40 mm parachute illuminating round for underbarrel launchers, burning 20 s at 80000 cd from 182 +/- 30 m when fired at 85 degrees.
- Calibre
- 40 mm
- Delay time
- 2.5 to 3.5 s
- Burning time of star
- 20 s
M03

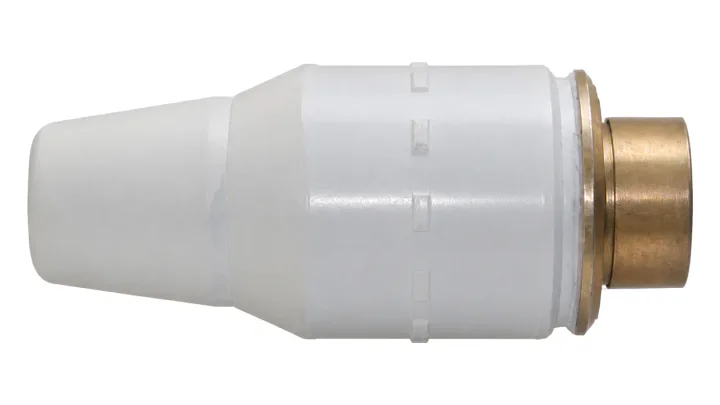

40 mm Practice Underbarrel Grenade Round
40 mm practice round for underbarrel grenade launchers with rubber head of 80 Shore hardness, matching HE ballistics to 400 m.
- Max range
- 400 m
- Muzzle velocity
- 78 m/s
- Calibre
- 40 mm
M04
40 mm Smoke Underbarrel Grenade Round
40 mm smoke round for underbarrel launchers producing 30 s of white, red, green or yellow smoke at 50 to 400 m.
- Muzzle velocity
- 76 m/s
- Calibre
- 40 mm
- Round mass
- 232 g
30 mm rounds for automatic grenade launchers
Explore this groupAll four line items belong to the M93 family of 30 mm rounds for automatic grenade launchers, in the P1 and P2 versions. Two are high explosive, the M93 P1 and the M93 P2; the other two are the practice-marker and the target practice M93 P1. Every record quotes a round mass, a grenade mass, a muzzle velocity of 185 m/s and the same precision on a vertical target at 100 m, Vp and Vv at 0.08 m or less, over an operating range of -30 to +50 degrees C.
M93 P1
30 mm HE Grenade Launcher Round
30 mm high explosive automatic grenade launcher round with self-destructing fuze, lethal radius 6 m and maximum range 1700 m.
- Max range
- 1700 m
- Muzzle velocity
- 185 m/s
- Rate of fire
- min 350 rounds/min
M93 P2

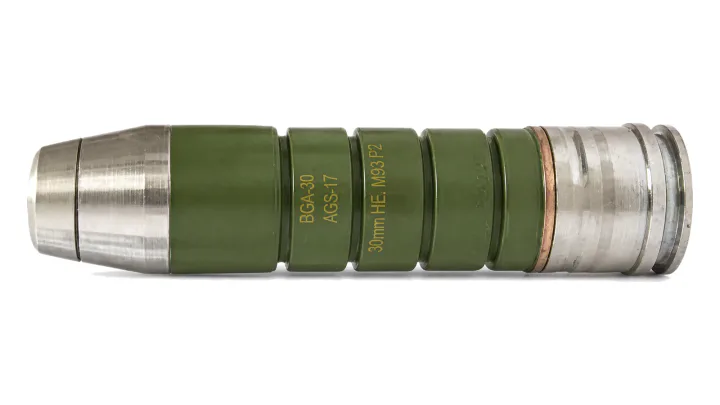

30 mm HE grenade launcher round M93 P2
A 30 mm high-explosive round for automatic grenade launchers (AGL-30 mm, BGA-30 mm, AGS-17, KBA-117 and similar weapons), intended for engaging ground targets in the open and in shelters at ranges up to 1700 m.
- Max range
- 1700 m
- Muzzle velocity
- 185 m/s
- Rate of fire
- min 350 rounds/min
M93 P1

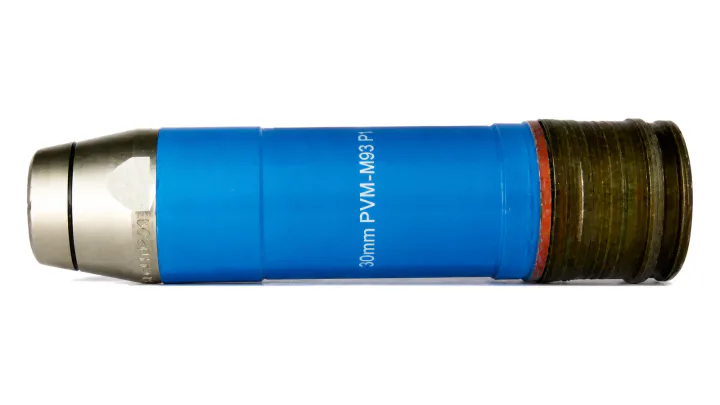

30 mm Practice-Marker Grenade Launcher Round
30 mm practice-marker automatic grenade launcher round matching the ballistics of the HE round, with self-destructing fuze.
- Max range
- 1700 m
- Muzzle velocity
- 185 m/s
- Calibre
- 30 mm
M93 P1

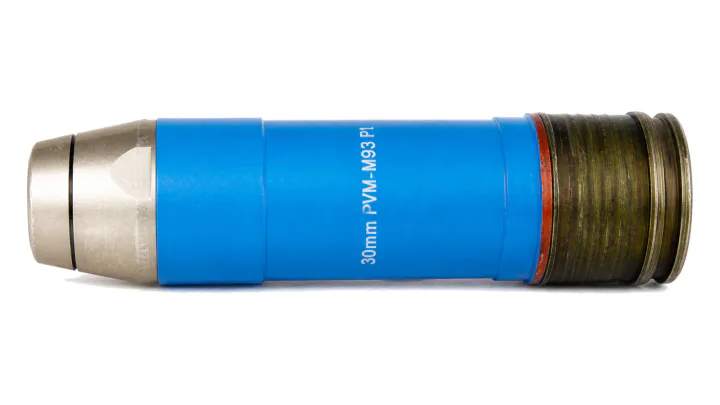

30 mm TP Grenade Launcher Round
30 mm target practice automatic grenade launcher round with the same mass and ballistics as the HE round.
- Muzzle velocity
- 185 m/s
- Calibre
- 30 mm
- Round mass
- 360 g
High explosive, dual purpose and thermobaric low-velocity launcher rounds
Explore this groupThese six line items are 40x46 mm low-velocity rounds. Four are high explosive: the M99 and M17 with a fuze arming at 14 to 27 m, and the M99 P1 and M14 with a self-destructing fuze arming at 8 to 30 m. The M99 dual purpose round adds penetration of 60 mm of steel plate, and the M18 is a thermobaric round quoted by overpressure and zone of destruction. Every record states a round or grenade mass; the five with a range figure quote a maximum of 400 m.
M18

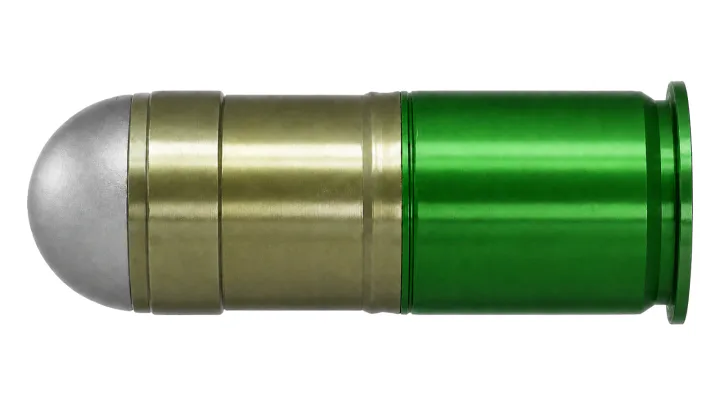

40 mm x 46 thermobaric round M18
A 40 mm x 46 thermobaric round that acts with high temperature and a shock wave against personnel in shelters and in the open, and against light armoured and non-armoured vehicles.
- Calibre
- 40 mm
- Round mass
- 210 g
- Grenade mass
- 160 g
M99

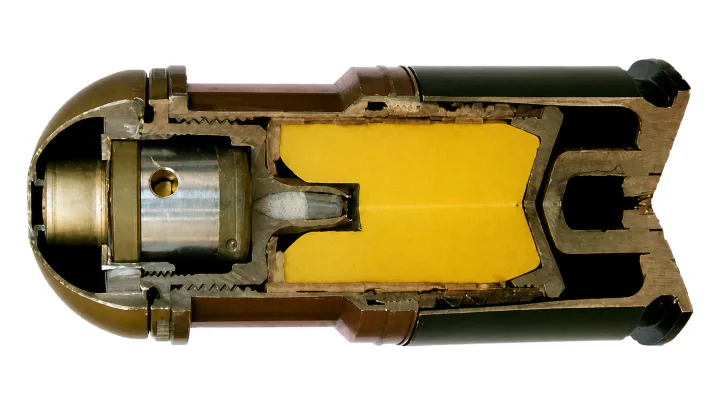

40x46 mm HE Grenade Launcher Round
40x46 mm low-velocity high explosive round with 48 g explosive charge, lethal radius at least 5 m and maximum range 400 m.
- Max range
- 400 m
- Muzzle velocity
- 78 m/s
- Calibre
- 40x46 mm

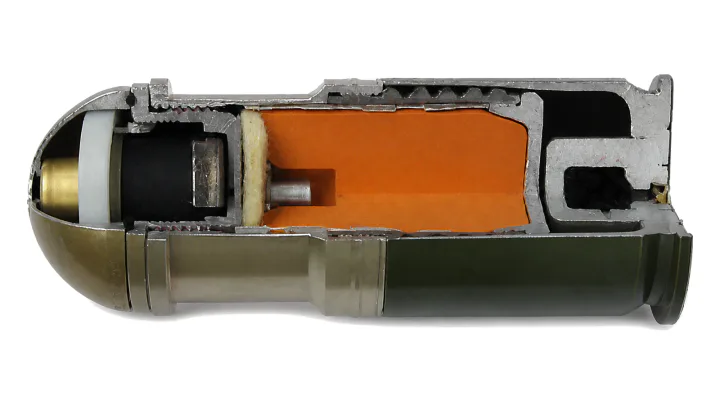

M17
40x46 mm HE Grenade Launcher Round M17
40x46 mm low-velocity high explosive round for targets in the open and in shelters at utility ranges from 50 m to 400 m.
- Max range
- 400 m
- Muzzle velocity
- 78 m/s
- Calibre
- 40x46 mm
M99 P1

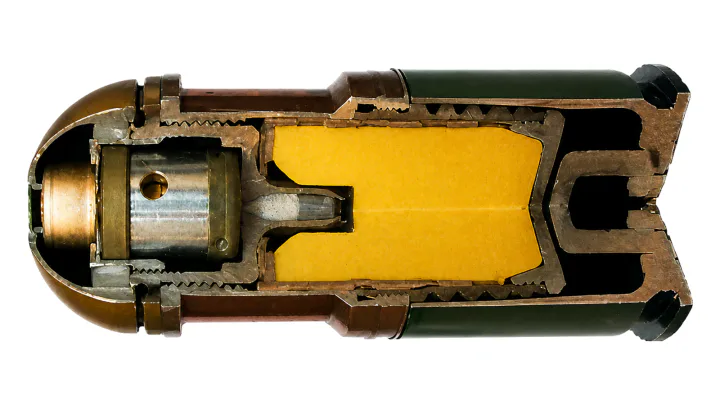

40x46 mm HE-SD Grenade Launcher Round
40x46 mm low-velocity high explosive round with self-destructing fuze acting 12 to 20 s after firing.
- Max range
- 400 m
- Calibre
- 40x46 mm
- Round mass
- 245 g
M14

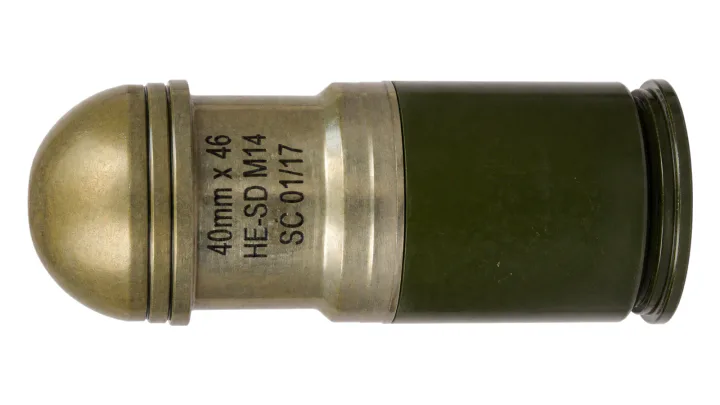

40x46 mm HE-SD grenade launcher round M14
A 40 mm x 46 low-velocity high-explosive round with a self-destruct fuze, intended for firing from NATO-standard 40 mm low-velocity grenade launchers against targets in the open and in shelters at ranges from 50 m to 400 m.
- Max range
- 400 m
- Muzzle velocity
- 78 m/s
- Calibre
- 40 mm
M99

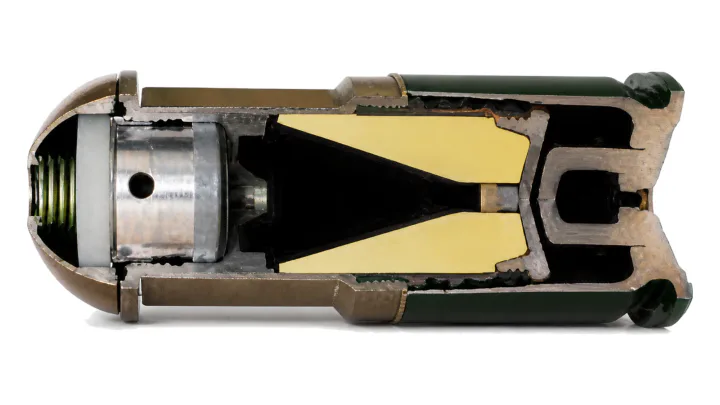

40x46 mm HEDP Grenade Launcher Round
40x46 mm low-velocity high explosive dual purpose round penetrating 60 mm of steel plate with a lethal radius of at least 5 m.
- Max range
- 400 m
- Muzzle velocity
- 78 m/s
- Calibre
- 40x46 mm
Smoke, illuminating and practice rounds for low-velocity launchers
Explore this groupEight 40x46 mm rounds carry a screening, illuminating or training payload. Three are smoke: the white M99 emitting for 30 s, the CS M99 emitting for 20 s and the three-part CS M11 used from 50 to 150 m. The M04 illuminating round deploys a parachute star burning 20 s at 80000 cd. Four are training rounds, the practice M99, the smoke, flash and marker TPSFM M04, the marking TP M07 and the TP-T M18 with a 4 s tracer. Every record quotes round mass, grenade mass and length.
M99

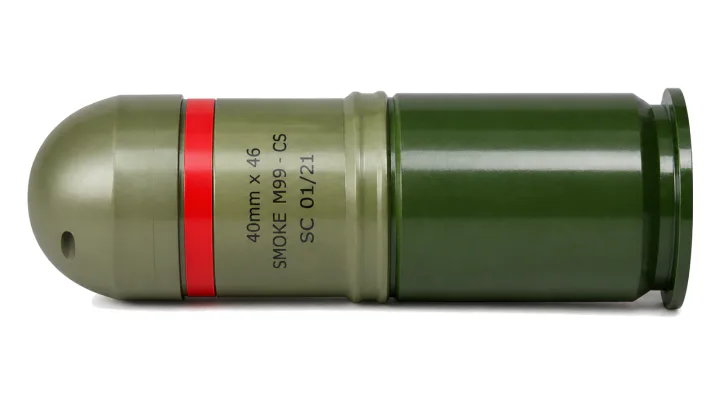

40x46 mm CS Smoke Round
40x46 mm CS irritant smoke round emitting for 20 s, used at ranges from 50 m to 400 m.
- Muzzle velocity
- 76 m/s
- Calibre
- 40x46 mm
- Round mass
- 210 g
M04

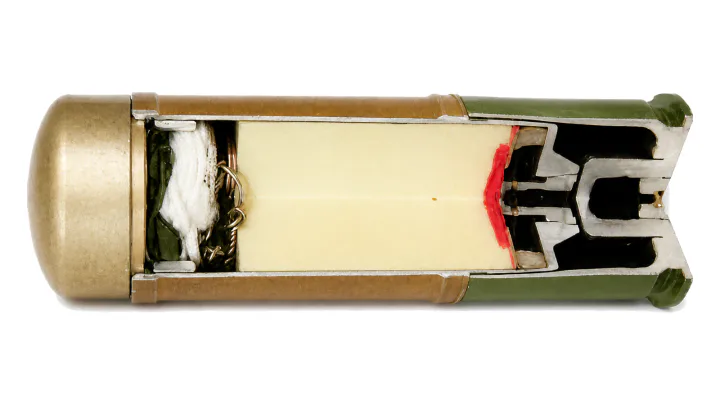

40x46 mm Illuminating Parachute Round
40x46 mm parachute illuminating round burning 20 s at 80000 cd, deploying at 182 +/- 30 m when fired at 85 degrees.
- Calibre
- 40x46 mm
- Round mass
- 250 g
- Grenade mass
- 200 g
M99
40x46 mm Practice Grenade Launcher Round
40x46 mm practice round replicating the mass and ballistics of the HE M99 round out to 400 m.
- Max range
- 400 m
- Muzzle velocity
- 78 m/s
- Calibre
- 40x46 mm
M07
40x46 mm TP M07 practice-marking round
A training-marking round whose orange marking powder breaks on hitting the target or the ground to show the hit location, used for training and determining firing procedures with 40x46 mm grenade launchers.
- Calibre (mm)
- 40
- Round mass (g)
- 230
- Grenade mass (g)
- 180
M18

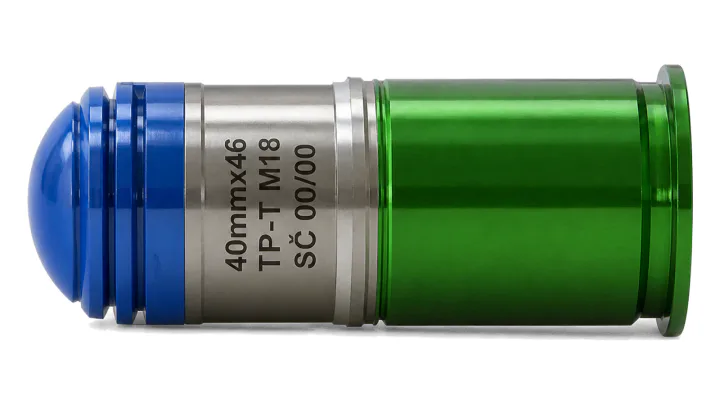

40x46 mm TP-T M18 practice-marking round with tracer
A training-practice round with tracer and orange marking powder that breaks on hitting the target or the ground to mark the hit location, used for training and determining firing procedures with 40x46 mm grenade launchers.
- Calibre (mm)
- 40
- Round mass (g)
- 235
- Grenade mass (g)
- 185
M04

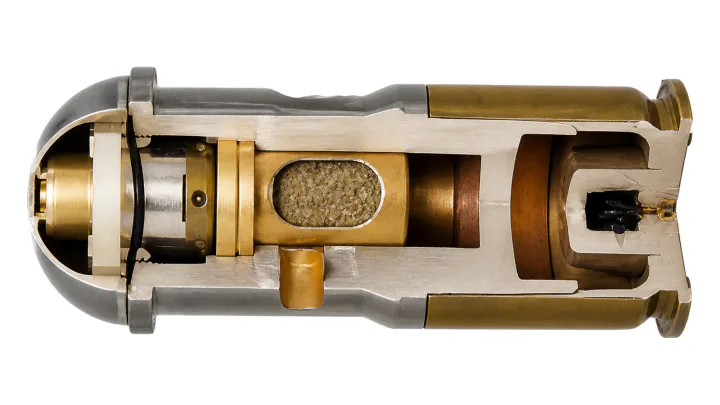

40x46 mm TPSFM Practice Round
40x46 mm target practice smoke, flash and marker round replicating service ballistics to 400 m.
- Max range
- 400 m
- Muzzle velocity
- 78 m/s
- Calibre
- 40x46 mm
M11
40x46 mm Three-Part CS Smoke Round
40x46 mm CS irritant smoke round separating into three smoke elements, emitting for 20 s at ranges of 50 to 150 m.
- Calibre
- 40x46 mm
- Round mass
- 200 g
- Grenade mass
- 155 g
M99
40x46 mm White Smoke Round
40x46 mm white smoke screening round emitting for 30 s at ranges from 50 m to 400 m.
- Muzzle velocity
- 76 m/s
- Calibre
- 40x46 mm
- Round mass
- 236 g
Kinetic impact and sound and flash rounds for low-velocity launchers
Explore this groupThese six 40x46 mm rounds are recorded for public order and anti-terrorist work rather than for high explosive effect. Three are kinetic: the impulse M05, the lighter impulse M13 P1 and a round loaded with 24 rubber balls of 15 mm, each quoted at about 120 J at 20 m. Two are sound and flash rounds, the M99 with a delay of 1 to 1.5 s and the M01 with an impact fuze, both at 120 dB. The Torment Type I M99 completes the group.
M05
40x46 mm Impulse Kinetic Round
40x46 mm kinetic impact round for riot control at 20 to 50 m, delivering about 120 J at 20 m.
- Calibre
- 40x46 mm
- Round mass
- 115 g
- Grenade mass
- 65 g
M13 P1
40x46 mm Impulse Kinetic Round M13 P1
Lightweight 40x46 mm kinetic impact round for suppression of riots at 20 to 50 m, delivering about 120 J at 20 m.
- Calibre
- 40x46 mm
- Round mass
- 102 g
- Grenade mass
- 52 g
—
40x46 mm Round with Rubber Balls
40x46 mm anti-riot round loaded with 24 rubber balls of 15 mm diameter, delivering about 120 J at 20 m.
- Calibre
- 40x46 mm
- Round mass
- 145 g
- Round length
- 122.5 mm
M99
40x46 mm Sound and Flash Round, Delay
40x46 mm sound and flash round with 1 to 1.5 s delay producing 120 dB, for anti-terrorist and riot control use.
- Calibre
- 40x46 mm
- Round mass
- 115 g
- Grenade mass
- 72 g
M01
40x46 mm Sound and Flash Round, Impact Fuze
40x46 mm sound and flash round with impact fuze producing 120 dB, for anti-terrorist and riot control use from 50 to 400 m.
- Muzzle velocity
- 78 m/s
- Calibre
- 40x46 mm
- Round mass
- 235 g
M99
40x46 mm Torment Type I Round
40x46 mm Torment Type I round with 192 g grenade and a muzzle velocity of 90 m/s.
- Muzzle velocity
- 90 m/s
- Calibre
- 40x46 mm
- Round mass
- 245 g
Medium-velocity 40x51 mm launcher rounds
Two 40 mm x 51 line items are listed at a muzzle velocity of 120 m/s, above the low-velocity rounds of the same domain. The M16 is a high explosive round with a self-destruct fuze, quoted at 320 g with a 225 g projectile, 42 g of explosive, arming at 10 to 60 m and a maximum range of 800 m. The M25 is a shrapnel round carrying 160 heavy-metal pellets of 4 mm, quoted from 25 to 50 m for the six-shot 40 mm/6 M11D multi-shot grenade launcher. Both operate from -30 to +50 degrees C.
M16
40 mm x 51 HE-SD round M16
A 40 mm x 51 medium-velocity high explosive round with a self-destruct fuze, fired at targets in the open and in shelters at ranges from 60 to 800 m.
- Max range
- 800 m
- Muzzle velocity
- 120 m/s
- Projectile mass
- 225 g
M25
40x51 mm shrapnel round M25
A 40 mm x 51 shrapnel round for the six-shot 40 mm/6 M11D multi-shot grenade launcher, carrying 160 heavy-metal pellets for use against personnel in shelters and in the open and against non-armoured objects on the ground and in the air between 25 m and 50 m.
- Muzzle velocity
- 120 m/s
- Projectile mass
- max 225 g
- Calibre
- 40 mm
Shoulder-launched fragmentation and shaped-charge rounds
Two line items are listed for a 40 mm shoulder-launched grenade launcher, each pairing a round designation with its grenade: OG-7VMZ with OG-7MZ and PG-7VN with PG-7N. Both records quote a launcher calibre of 40 mm, a warhead calibre wider than the tube, a propellant charge weight of 0.375 kg, a rate of fire of 4 to 6 rounds per minute and a safe operational temperature range of -40 to +50 degrees C. Round weight, muzzle velocity, direct fire range and case quantity are stated per model.
OG-7VMZ with OG-7MZ
40 mm OG-7VMZ Fragmentation Round
40 mm shoulder-launched fragmentation round with 42 mm warhead producing over 1200 fragments, maximum range 1000 m.
- Maximum range
- 1000 m
- Muzzle velocity
- 152 m/s
- Rate of fire
- 4 to 6 rds/min
PG-7VN with PG-7N
40 mm PG-7VN HEAT Round
40 mm shoulder-launched shaped-charge round with 72.3 mm warhead penetrating 400 mm of armour, sighting range 500 m.
- Muzzle velocity
- 140 m/s
- Rate of fire
- 4 to 6 rds/min
- Grenade launcher calibre
- 40 mm
Signalling / signaling and riot control cartridges, 26.5 mm and 38 mm
Explore this groupThese five line items are cartridges fired from a signal pistol rather than from a grenade launcher. The 26.5 mm ABC/LP 57 combines a white-red-white flare with an acoustic signal; the four 38 mm cartridges comprise three P1 kinetic items, loaded with rubber balls, a single rubber baton or a three-part rubber baton, and the S&F sound and flash cartridge. Every record states cartridge mass, cartridge length, an operating temperature range and a packing quantity, and every 38 mm record names the 38 mm signal pistol or 38 mm multi-purpose gun.
ABC/LP 57
26.5 mm ABC/LP 57 signal cartridge
A 26.5 mm signal cartridge for the 26 mm signal pistol that combines a white-red-white flare rising to 175-225 m with a 115 dB acoustic signal.
- Caliber
- 26.5 mm
- Cartridge mass
- 115 g
- Cartridge length
- 170 mm
P1
38 mm Cartridge with Rubber Balls
38 mm kinetic impact cartridge loaded with rubber balls for riot control, usable from -42 to +63 deg C.
- Calibre
- 38 mm
- Cartridge mass
- 120 g
- Cartridge length
- 122.5 mm
P1
38 mm Cartridge with Single Rubber Baton
38 mm kinetic impact cartridge with a single 98 mm rubber baton projectile, maximum range 120 +/- 20 m.
- Max range
- 120 +/- 20 m
- Calibre
- 38 mm
- Cartridge mass
- 186 g
P1
38 mm Cartridge with Three-Part Rubber Baton
38 mm kinetic impact cartridge with a three-part rubber baton projectile of 43 g, maximum range 100 +/- 20 m.
- Max range
- 100 +/- 20 m
- Projectile mass
- 43 g
- Calibre
- 38 mm
S&F
38 mm Sound and Flash Cartridge
38 mm sound and flash cartridge for crowd control, producing 120 dB after a delay of 1.7 to 2.3 s.
- Calibre
- 38 mm
- Cartridge mass
- 175 g
- Grenade mass
- 125 g
