M62
40 mm Smoke Rifle Grenade M62
40 mm smoke rifle grenade of 475 g launched by a 7.62 mm grenade cartridge to 350 m, with 7.5 s delay.
Also written: 40

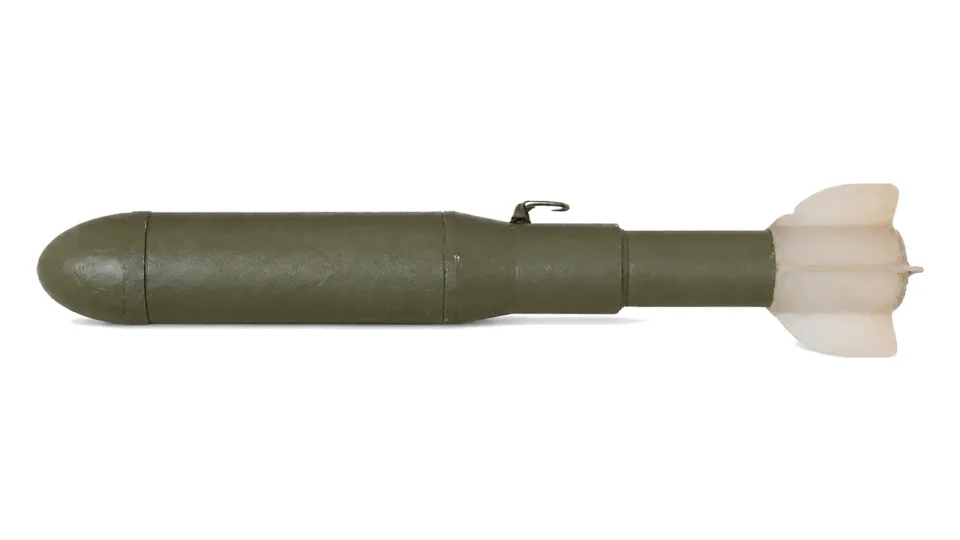

Enlarge 40 mm Smoke Rifle Grenade M62
Specification
| Calibre | 40 mm |
|---|---|
| Grenade mass | 475 g |
| Length | 330 mm |
| Muzzle velocity with 7.62 mm grenade cartridge | 70 m/s |
| Max range with 7.62 mm grenade cartridge | 350 m |
| Delay time | 7.5 s |
| Smoke time | 80 s |
| Operating temperature | -30 to +50 deg C |
| Weapon compatibility | 7.62 mm semi-automatic and automatic rifles and 5.56 mm automatic rifles with grenade attachment |
| Packing | 40 grenades in a tin box, box in a wooden case, 12 cases on a pallet |
All data provided for information purposes; final specification is defined per contract.
