M08
40 mm Illuminating Bullet-Trap Rifle Grenade
40 mm bullet-trap parachute illuminating rifle grenade burning 25 s at 80000 cd, parachute opening at 250 m when fired at 45 degrees.
Also written: 40

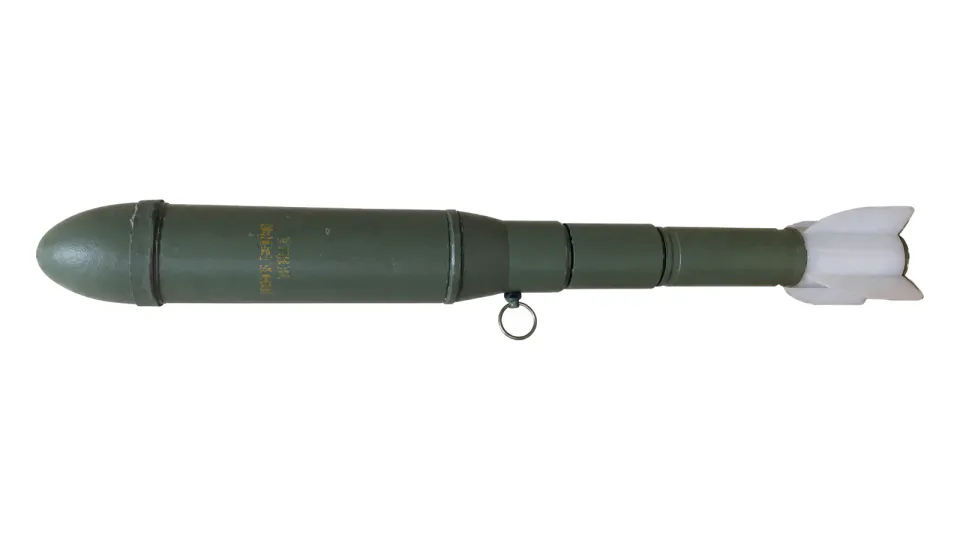

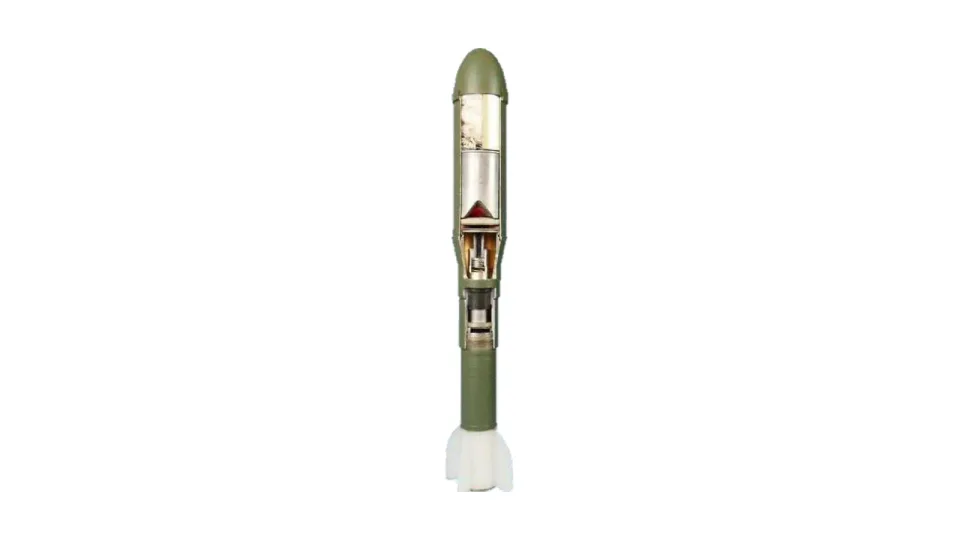

Show 40 mm Illuminating Bullet-Trap Rifle Grenade, view 1 of 2Show 40 mm Illuminating Bullet-Trap Rifle Grenade, sectioned view
Enlarge 40 mm Illuminating Bullet-Trap Rifle GrenadeEnlarge 40 mm Illuminating Bullet-Trap Rifle Grenade, sectioned view
Specification
| Calibre | 40 mm |
|---|---|
| Grenade mass | 500 g |
| Length | 370 mm |
| Range of parachute opening at firing under 45 deg | 250 m |
| Delay time | 4.3 to 5.1 s |
| Burning time of star | 25 s |
| Light intensity of star | 80000 cd |
| Operating temperature | -30 to +50 deg C |
| Weapon compatibility | 7.62 mm semi-automatic and automatic rifles and 5.56 mm automatic rifles with grenade attachment |
| Packing | 39 grenades in a tin box, box in a wooden case, 12 cases on a pallet |
All data provided for information purposes; final specification is defined per contract.
