M05
40x46 mm Impulse Kinetic Round
40x46 mm kinetic impact round for riot control at 20 to 50 m, delivering about 120 J at 20 m.
Also written: 40 mm LV, 40 mm NATO low velocity, 40 mm grenade, 40 x 46, 40X46, 40mm LV, 40x46

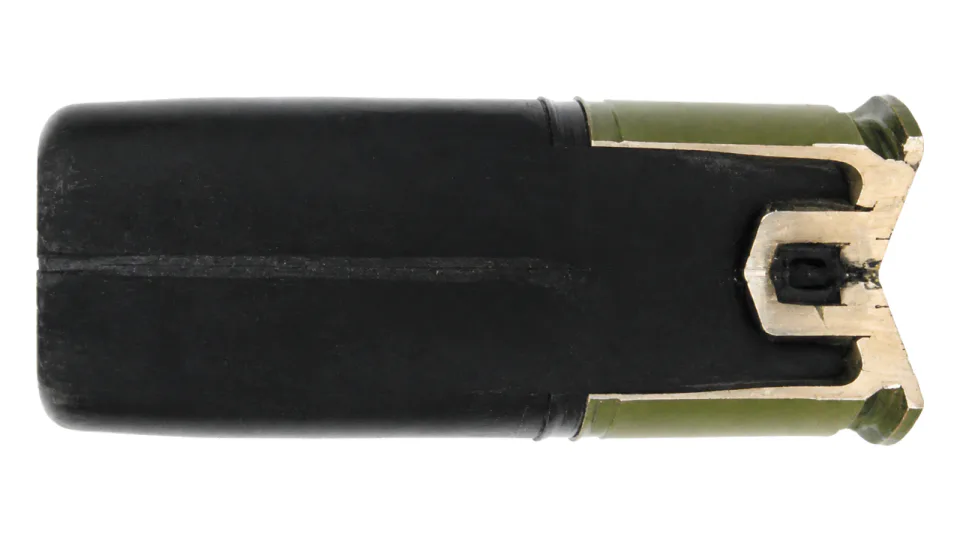

Enlarge 40x46 mm Impulse Kinetic Round
Specification
| Calibre | 40x46 mm |
|---|---|
| Round mass | 115 g |
| Grenade mass | 65 g |
| Round length | 108 mm |
| Firing range | 20 to 50 m |
| Precision on vertical target at 20 m | Vp <= 0.15 m, Vv <= 0.15 m |
| Kinetic energy at 20 m | approx. 120 J |
| Operating temperature | -30 to +50 deg C |
| Weapon compatibility | M203, M79 and similar 40 mm low-velocity grenade launchers |
| Packing | 1 round per polyethylene bag, 162 bags in a wooden case, 16 cases on a pallet |
All data provided for information purposes; final specification is defined per contract.
