Use this category to compare medium-calibre rounds by complete cartridge dimensions, not projectile diameter alone. The catalogue includes 20x102, 20x110, 20x110RB, 23x115, 23x152B, 30x165, 30x173, 40x311 and 40x365 mm families. Because 20 mm and 30 mm systems use different case lengths and rim configurations, every family keeps its full designation. High-explosive, armour-piercing, practice, blank, illuminating, smoke and other specialised line items remain separated rather than grouped under a generic calibre label.
The item page carries the available technical data, images and revisioned English datasheet. Platform compatibility is not inferred from calibre alone and must be confirmed against the stated weapon system, destination, quantity and end use. Standard labels are shown only when present in the source catalogue. Quotations are issued to government end-users and licensed entities subject to the applicable export licence, transaction review and verified End-User Certificate.
Forty-six line items carry a high-explosive nature. The designation families run 20 mm x 102, 20 mm x 110, 20 mm x 110RB, 23 mm x 115, 23 mm x 152B, 30 mm x 165, 30 mm x 173, 30 mm x 210B, 30 mm x 220, 37 mm x 252, 40 mm x 311, 40 mm x 365, 57 mm x 348 and 57 mm x 438, in plain HE, tracer HE-T, incendiary HEI, HEI-T and pre-fragmented PFHE suffixes. Every record states a projectile mass, a muzzle velocity and an operating temperature band; explosive mass and fuze figures appear where the source records them.
20x102 mm high-explosive round with a 100 g projectile carrying 10.7 g of explosive, muzzle velocity 1030 m/s, for the M621 gun.
20x102 mm high-explosive incendiary round with a 100 g projectile carrying 10.7 g of filling, muzzle velocity 1030 m/s, for the M621 gun.

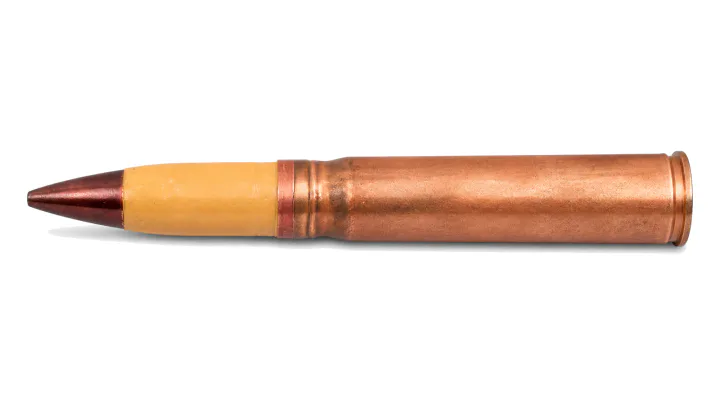

20x110 mm Hispano-pattern high-explosive round, 130 g projectile with 11 g explosive, self-destructing fuze, muzzle velocity 850 m/s.
20x110 mm Hispano-pattern high-explosive tracer round, 135 g projectile with 6 g explosive and 3.2 s tracer.

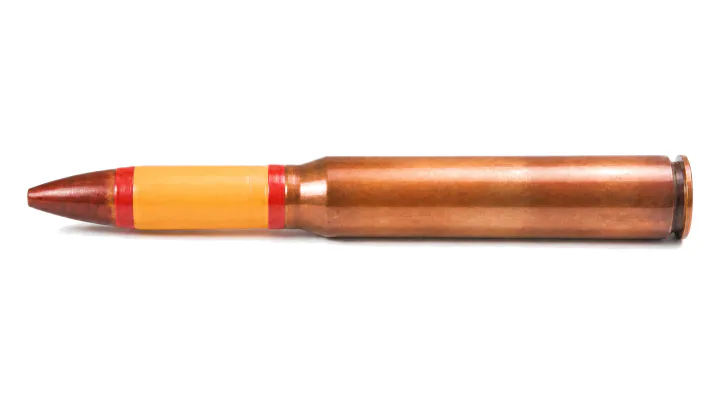

20x110 mm Hispano-pattern high-explosive incendiary round, 130 g projectile with 11 g filling and self-destructing fuze.

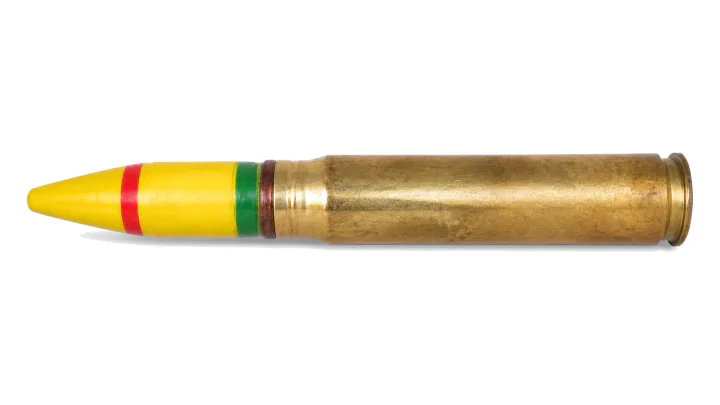

20x110 mm Hispano-pattern high-explosive incendiary tracer round, 135 g projectile with 6 g filling and 3.2 s tracer.

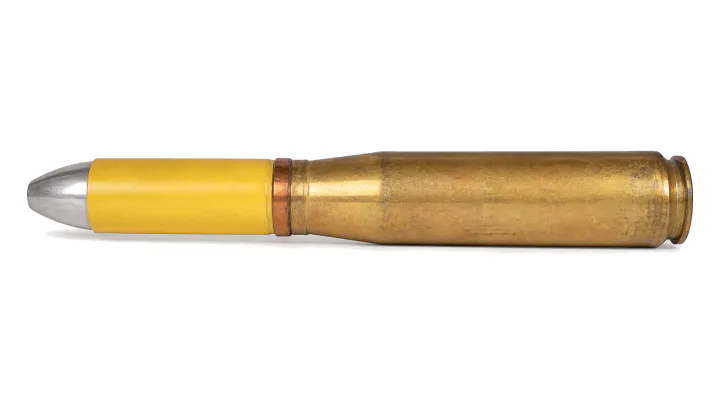

20x110RB mm high-explosive round, 119 g projectile with 10.3 g explosive and self-destructing fuze, for the MK-IV Oerlikon gun.
20x110RB mm high-explosive tracer round with a 122 g projectile and 6.8 g explosive filling.
20x110RB mm high-explosive incendiary round, 119 g projectile with 10.3 g filling and self-destructing fuze.

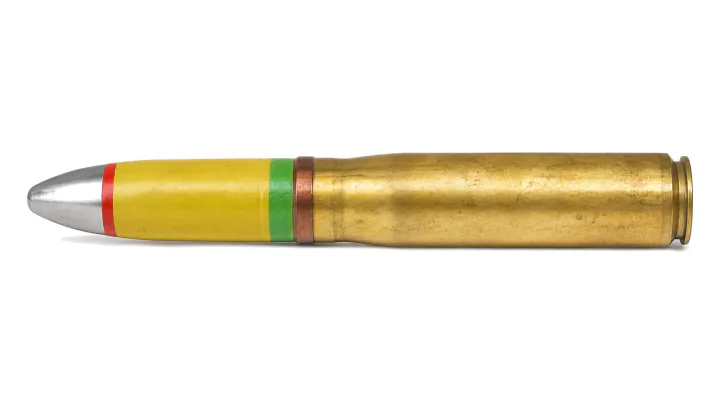

20x110RB mm high-explosive incendiary tracer round with a 122 g projectile and 6.8 g explosive-incendiary filling.

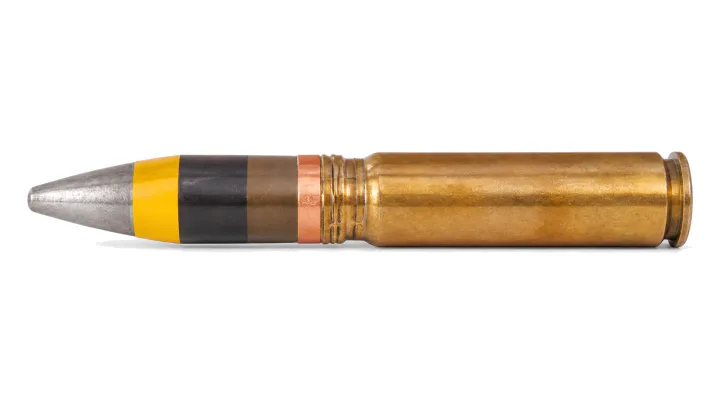

23x115 mm high-explosive round, 174 g projectile with 16.3 g explosive at 720 m/s, for GSh-23L and GSh-23LU aircraft guns.

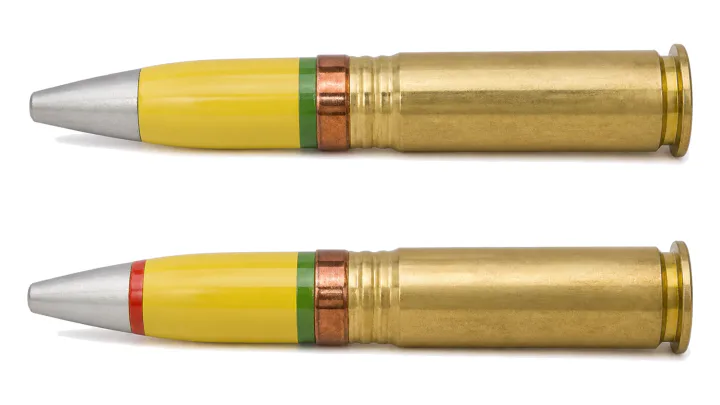

A 23 mm x 115 round for aircraft guns, made up of a brass cartridge case with a percussion gun primer, a propellant charge and a high-explosive tracer projectile with a point-detonating fuze; the HEI-T variant is loaded with explosive-incendiary and tracer composition.
23x115 mm high-explosive incendiary round, 174 g projectile with 16.3 g filling at 720 m/s, for GSh-23L and GSh-23LU aircraft guns.
23x152B mm high-explosive round, 182 g projectile with 19.6 g explosive and self-destructing fuze, muzzle velocity 970 m/s.
A 23 mm x 152B round for antiaircraft guns, made up of a steel cartridge case with a percussion gun primer, a propellant charge and a high-explosive tracer projectile fitted with a point-detonating fuze with mechanical self-destruction; the HEI-T variant is loaded with explosive-incendiary and tracer composition.
23x152B mm high-explosive incendiary round, 182 g projectile with 19.6 g filling and self-destructing fuze, muzzle velocity 970 m/s.
30x165 mm high-explosive round in the aircraft gun loading, 389 g projectile with approx. 49 g explosive at 860 m/s.

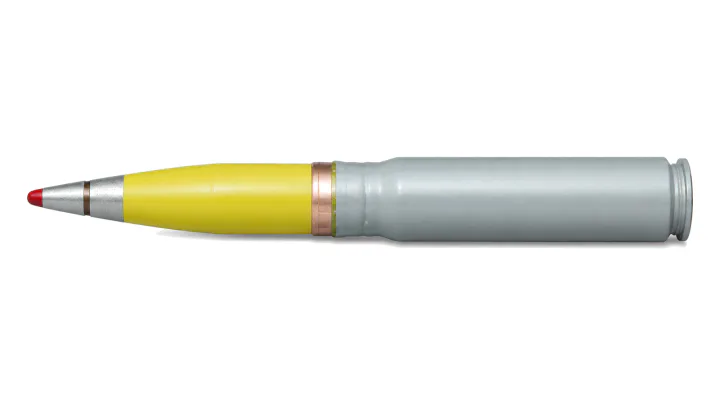

30x165 mm high-explosive round in the autocannon loading, 389 g projectile with approx. 49 g explosive at 960 m/s, self-destructing fuze.
30x165 mm high-explosive tracer round in the autocannon loading, 386 g projectile with 11.5 g explosive at 960 m/s.

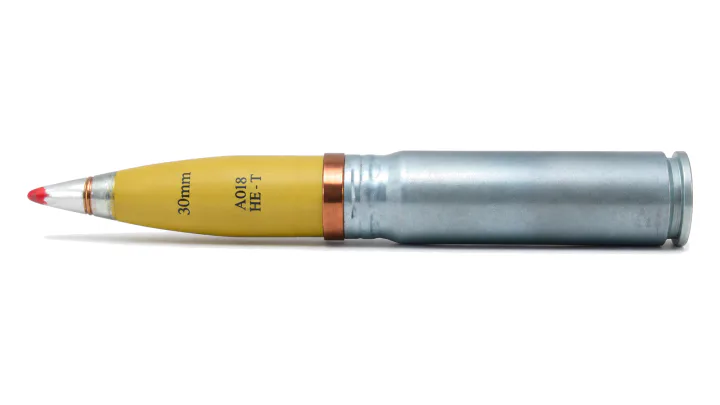

30x165 mm high-explosive tracer round for AO-18 and AK-630M guns, 386 g projectile with 11.5 g explosive and 10 s tracer.
30x165 mm high-explosive incendiary round in the aircraft gun loading, 389 g projectile with approx. 49 g filling at 860 m/s.

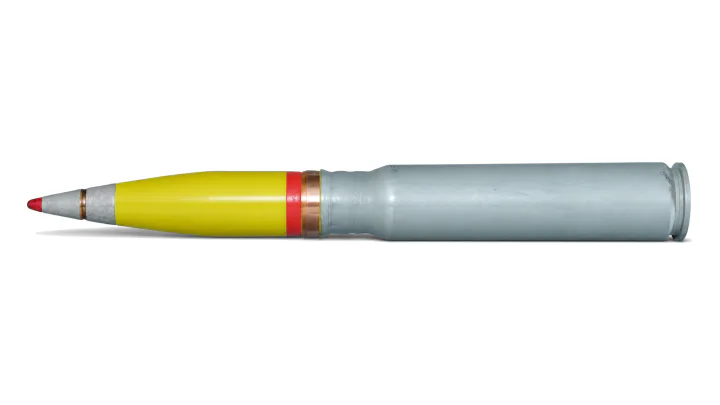

30x165 mm high-explosive incendiary round in the autocannon loading, 389 g projectile with approx. 49 g filling at 960 m/s, self-destructing fuze.

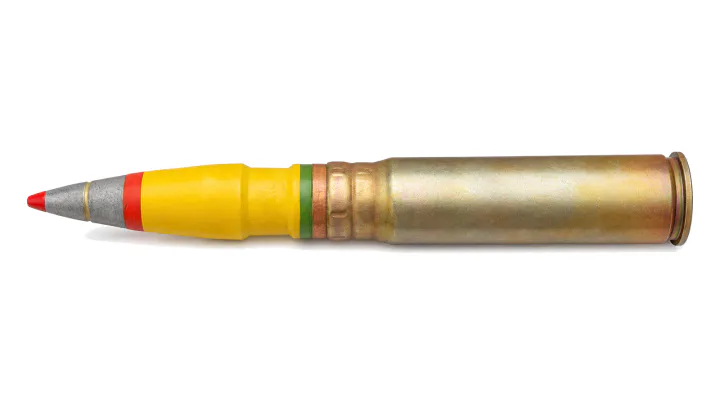

30x165 mm high-explosive incendiary tracer round in the autocannon loading, 386 g projectile with 11.5 g filling at 960 m/s.

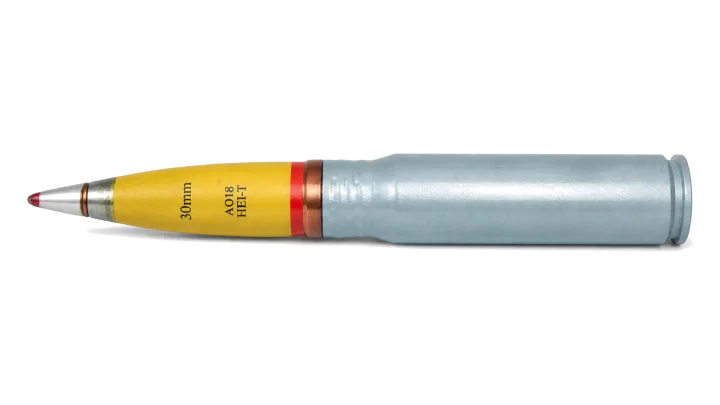

30x165 mm high-explosive incendiary tracer round for AO-18 and AK-630M guns, 386 g projectile with 11.5 g filling and 10 s tracer.
30x173 mm high-explosive round, 357 g projectile with approx. 36.9 g explosive at 1100 m/s, self-destructing fuze, for the MK30-2 and 30 mm TA M12 guns.
A 30 mm x 173 high-explosive tracer round for the MK30-2 gun and the domestic 30 mm TA M12 gun, fitted with a point-detonating fuze with delayed action and pyrotechnical self-destruction; the HEI-T version is loaded with explosive-incendiary and tracer compositions.
30x173 mm high-explosive incendiary round, 357 g projectile with approx. 36.9 g filling at 1100 m/s, for the MK30-2 and 30 mm TA M12 guns.

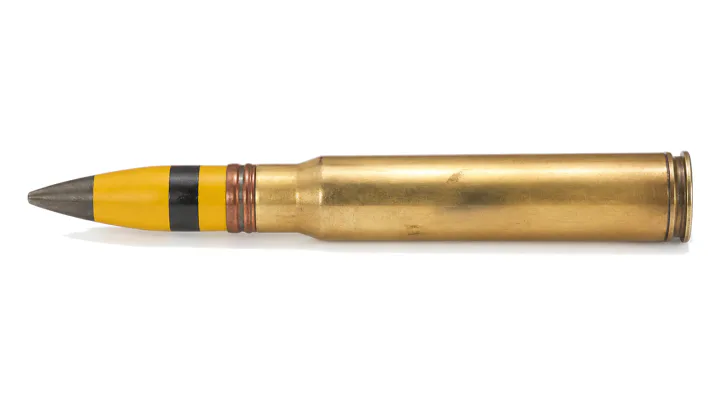

30x210B mm high-explosive round, 356 g projectile with 39.7 g explosive at 1045 to 1070 m/s, for AK-230 and M86 guns.
30x210B mm high-explosive incendiary round, 356 g projectile with 39.7 g filling at 1045 to 1070 m/s, for AK-230 and M86 guns.

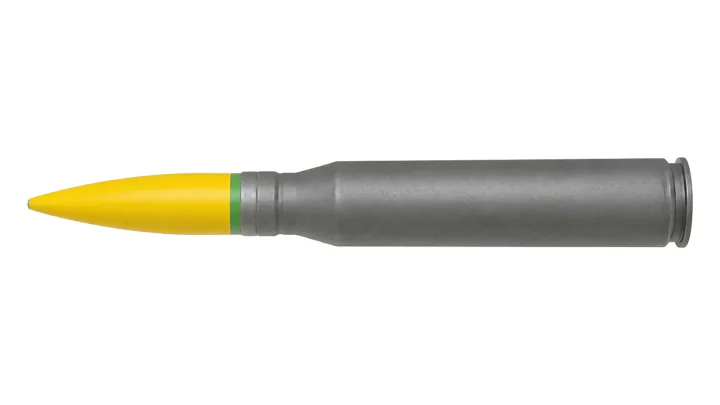

30x220 mm high-explosive tracer round, 435 g projectile with 35.7 g explosive at 997 m/s, for the 30/2 M53/59 gun.

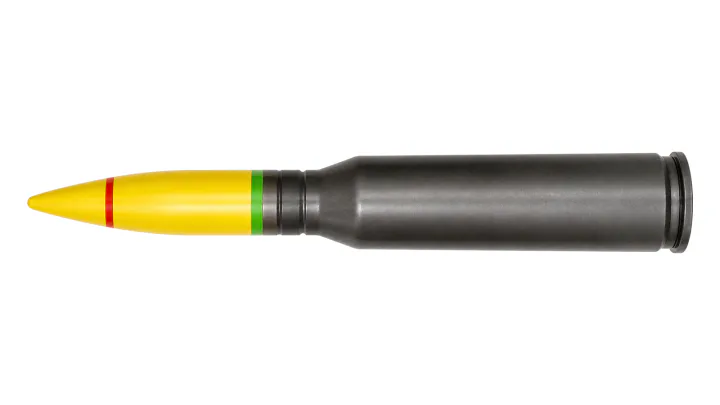

30x220 mm high-explosive incendiary tracer round, 435 g projectile with 35.7 g filling at 997 m/s, for the 30/2 M53/59 gun.

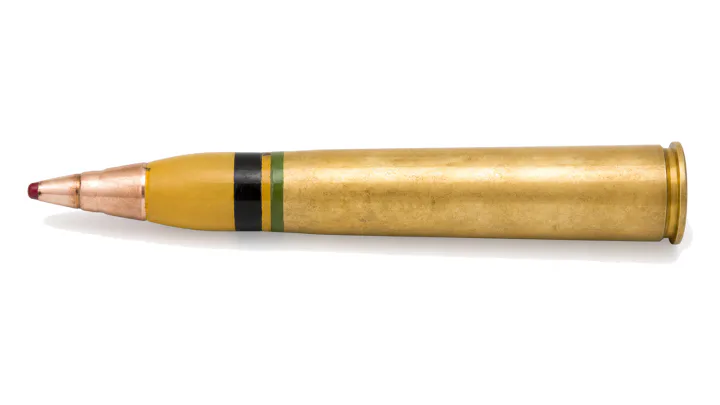

37x252 mm high-explosive tracer round, 732 g projectile with approx. 35.6 g explosive at 866 m/s, for the 37 mm M1939 gun.

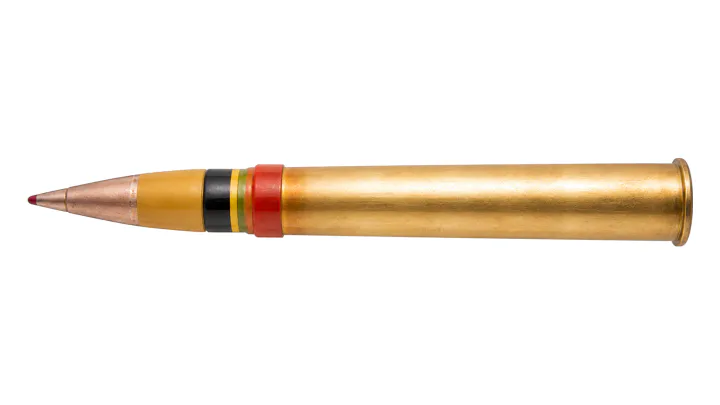

37x252 mm high-explosive incendiary tracer round, 732 g projectile with approx. 35.6 g filling at 866 m/s, for the 37 mm M1939 (SU) gun.

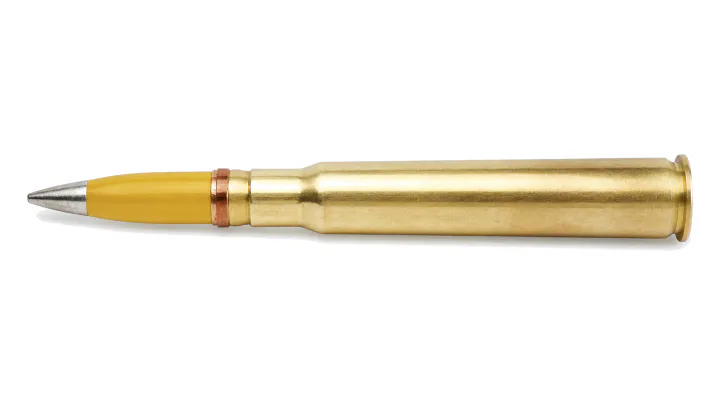

40x311 mm high-explosive round, 910 g projectile with 80 g explosive at 880 m/s, self-destructing fuze, for the 40 mm L/60 gun.

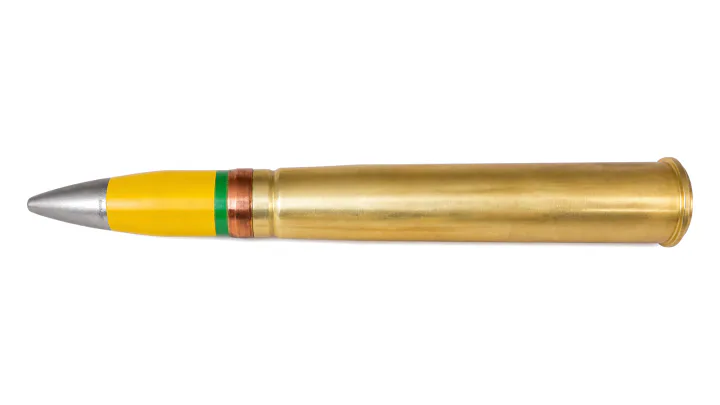

40x311 mm high-explosive tracer round, 910 g projectile with 78 g explosive and 5 s tracer, for the 40 mm L/60 gun.

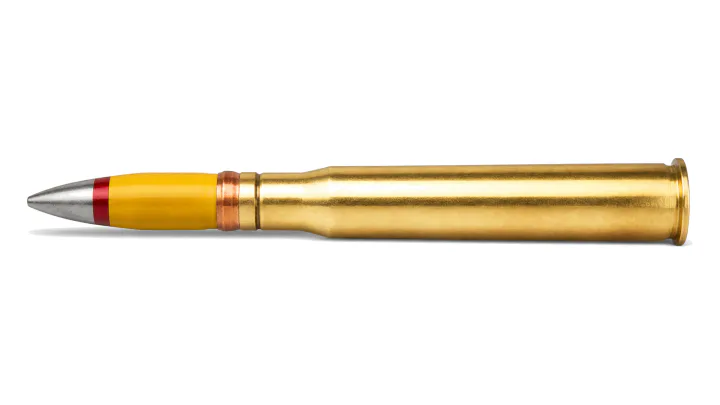

40x311 mm high-explosive incendiary round, 910 g projectile with 80 g filling at 880 m/s, for the 40 mm L/60 gun.
40x311 mm high-explosive incendiary tracer round, 910 g projectile with 78 g filling and 5 s tracer, for the 40 mm L/60 gun.

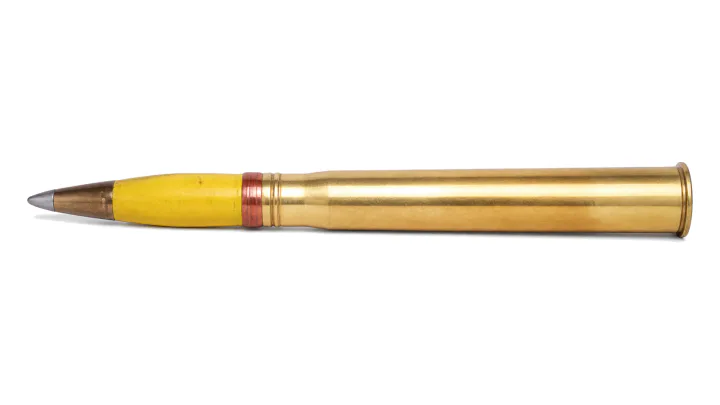

40x365 mm high-explosive round, 964 g projectile with 95 g explosive at 1005 m/s, self-destructing fuze, for the 40 mm L/70 gun.

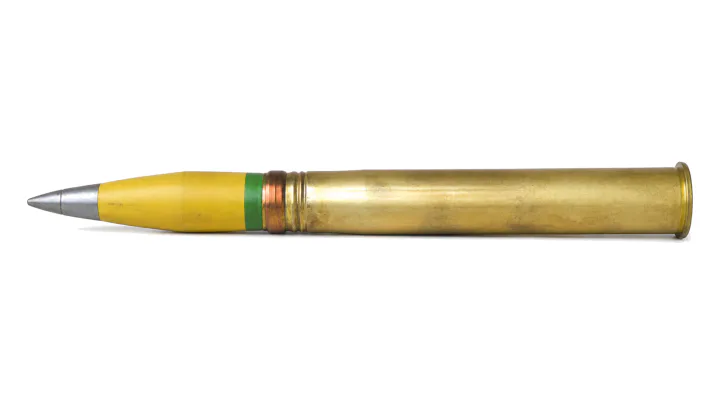

40x365 mm high-explosive tracer round, 964 g projectile with 83 g explosive and 4 s tracer, for the 40 mm L/70 gun.

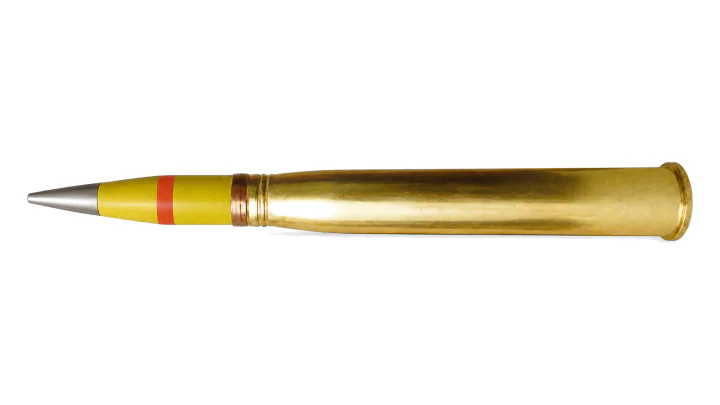

40x365 mm high-explosive incendiary round, 964 g projectile with 95 g filling at 1005 m/s, for the 40 mm L/70 gun.
40x365 mm high-explosive incendiary tracer round, 964 g projectile with 83 g filling and 4 s tracer, for the 40 mm L/70 gun.

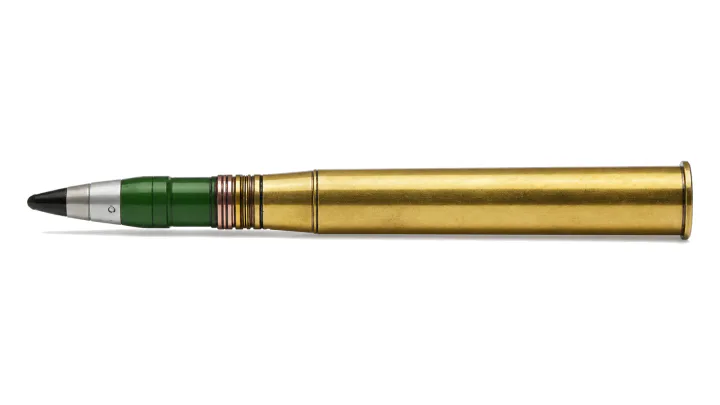

An anti-drone round for the 40 mm L/70 gun, made up of a brass cartridge case with percussion gun primer, propellant charge and a pre-fragmented high explosive projectile lined with tungsten balls, fitted with a point-detonating remote-settable electronic time fuze with electronic self-destruction.

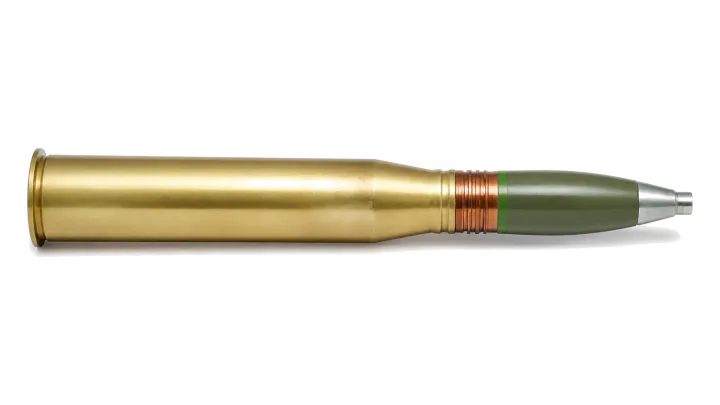

57x348 mm high-explosive tracer round, 2850 g projectile with 153 g explosive at 1000 m/s, for S/68 and S/60 guns.

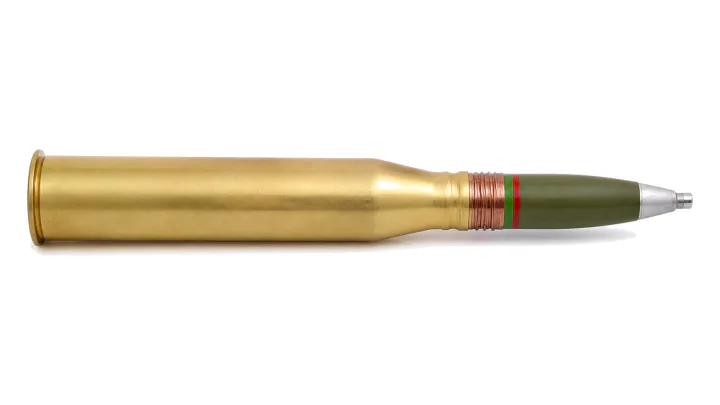

57x348 mm high-explosive incendiary tracer round, 2850 g projectile with 153 g filling at 1000 m/s, for S/68 and S/60 guns.

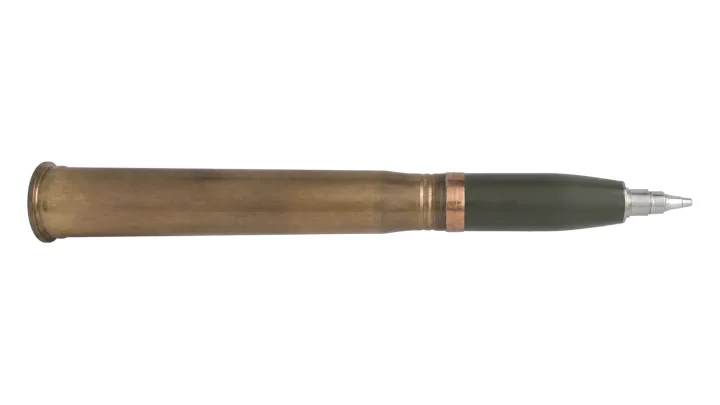

A 57 mm x 438 high-explosive round for the 57 mm L/70 Bofors antiaircraft gun, consisting of a brass cartridge case with electrical gun primer, propellant charge and an HE projectile fitted with a point-detonating fuze.
A 57 mm x 438 pre-fragmented high-explosive round for the 57 mm L/70 Bofors antiaircraft gun, with a brass cartridge case, electrical gun primer, propellant charge and a projectile lined with tungsten balls, loaded with explosive composition and fitted with a proximity fuze with electronic self-destruction.
Twenty-one line items sit in the armour-piercing family. Designations run 20 mm x 102, 20 mm x 110 and 20 mm x 110RB, 23 mm x 115, 23 mm x 152B, 30 mm x 165, 30 mm x 173 and 40 mm x 365, with the suffixes AP, AP-T, API, API-T, APHC-T, APFSDS-T, APHEI-HC and PELE. Every entry states a round mass and a muzzle velocity, nearly all add a projectile mass and an operating temperature band, and most quote a maximum gas pressure. Two records, 30 mm x 173 APFSDS-T and 30 mm x 165 PELE, are marked by the source as still in a development phase.

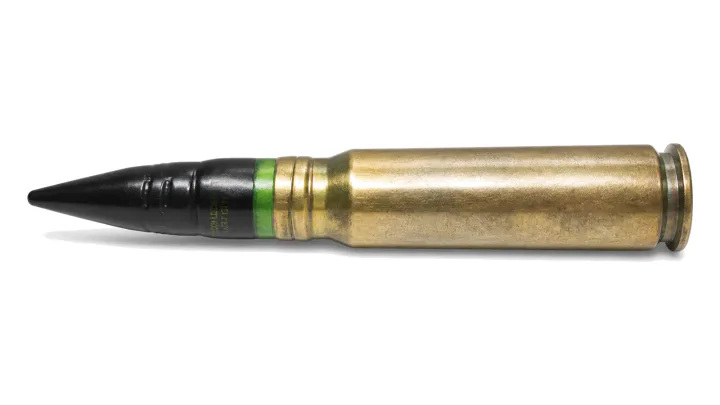

20x102 mm armour-piercing tracer round with a 108 g projectile at 1000 m/s muzzle velocity, for the M621 automatic gun.

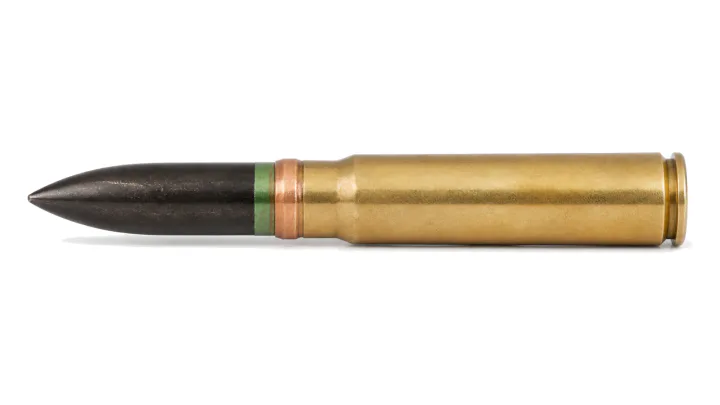

20x110 mm Hispano-pattern armour-piercing tracer round, 142 g projectile at 840 m/s, for M55 and HS 404 / HS 804 guns.

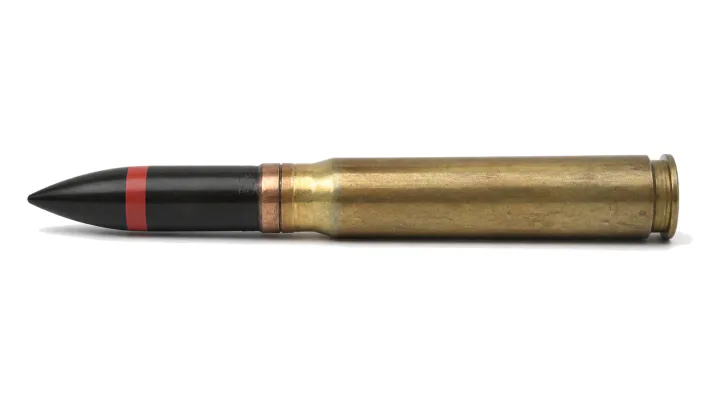

A 20 mm x 110 armour-piercing incendiary round for the 20 mm M55, HS 404 Hispano and HS 804 Hispano anti-aircraft guns, consisting of a brass cartridge case with percussion gun primer, propellant charge and an API projectile filled with incendiary composition.
Round consisting of a brass cartridge case with a percussion gun primer, propellant charge and an armour-piercing incendiary tracer projectile filled with incendiary and tracer compositions, with a tracer burning at least 2 seconds.
20x110RB mm armour-piercing tracer round, 142 g projectile at 800 m/s with at least 3.5 s tracer, for the MK-IV Oerlikon gun.

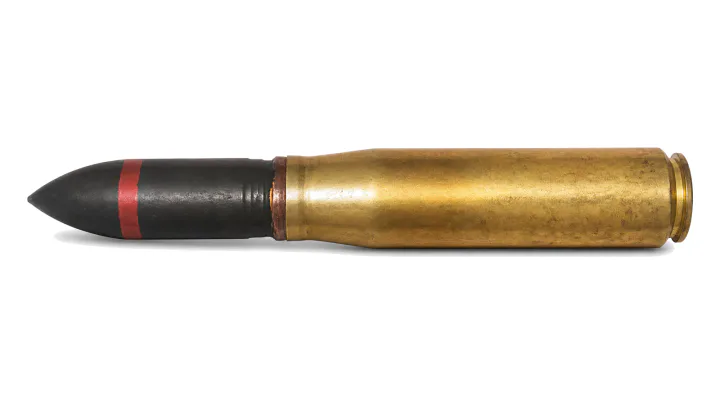

20x110RB mm armour-piercing incendiary round, 142 g projectile at 800 m/s, for the 20 mm MK-IV Oerlikon antiaircraft gun.

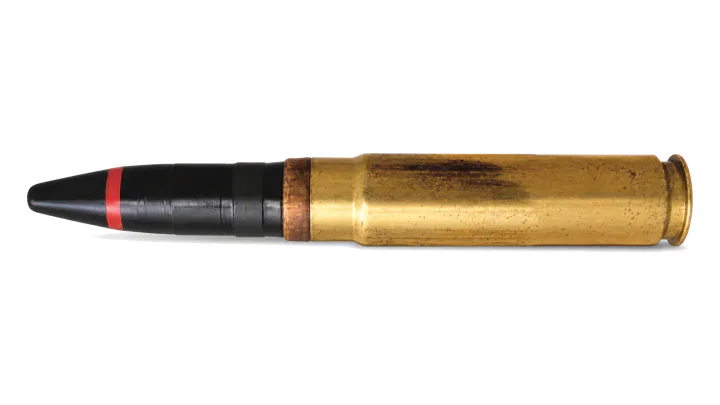

23x115 mm armour-piercing incendiary round with 5 g incendiary charge at 720 m/s, for GSh-23L, GSh-23LU and GSh-6-23 aircraft guns.

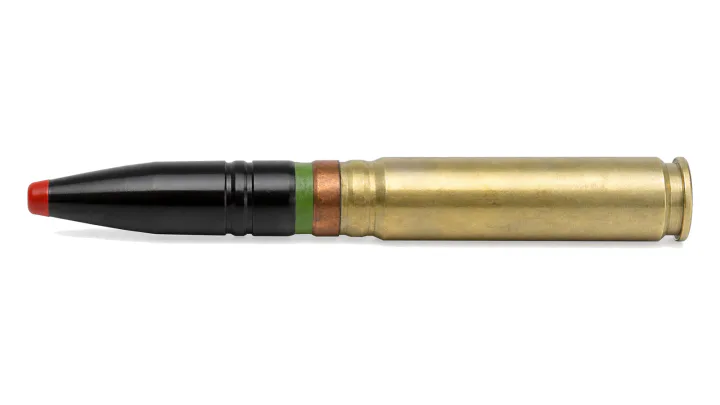

A 23 mm x 115 armour-piercing incendiary tracer round for aircraft guns, made up of a brass cartridge case with a percussion gun primer, a propellant charge and an armour-piercing projectile filled with incendiary and tracer composition.

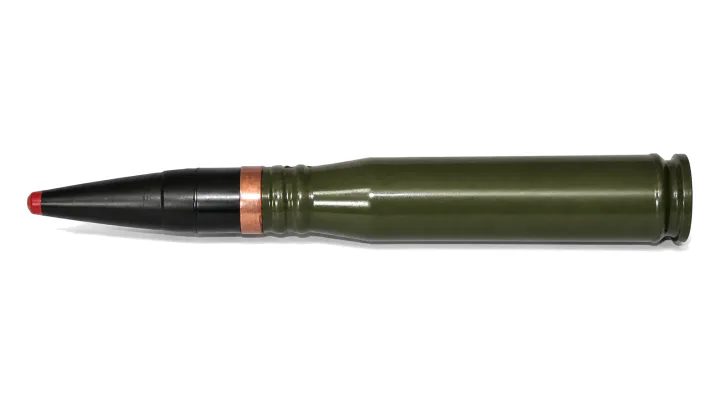

An armour-piercing incendiary round for the 23 mm ZU-23-2 and ZSU-23-4 antiaircraft guns, comprising a steel cartridge case with percussion gun primer, propellant charge and an incendiary-filled armour-piercing projectile.

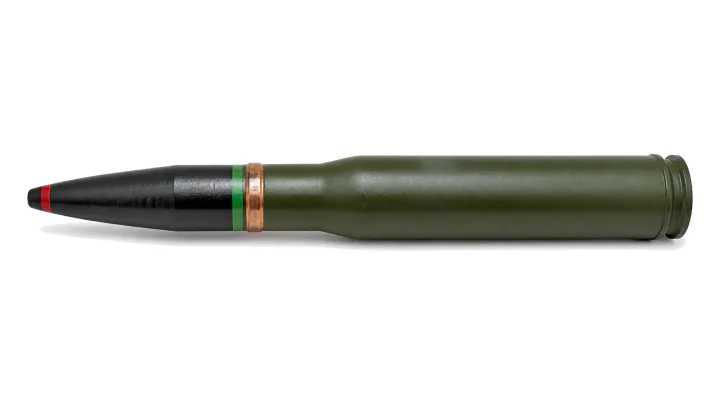

23x152B mm armour-piercing incendiary tracer round, 189 g projectile at 970 m/s with at least 3.5 s tracer, for ZU-23-2 and ZSU-23-4 guns.
30x165 mm armour-piercing round, 400 g projectile at 970 m/s, for the 2A72, 2A42 and 2A38M automatic guns.

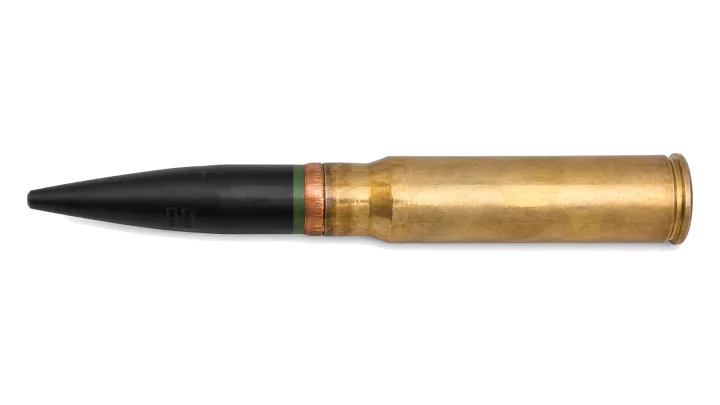

30x165 mm armour-piercing tracer round in the aircraft gun loading, 400 g projectile at 860 m/s with 3.5 s tracer.
30x165 mm armour-piercing tracer round in the autocannon loading, 400 g projectile at 970 m/s with 3.5 s tracer.

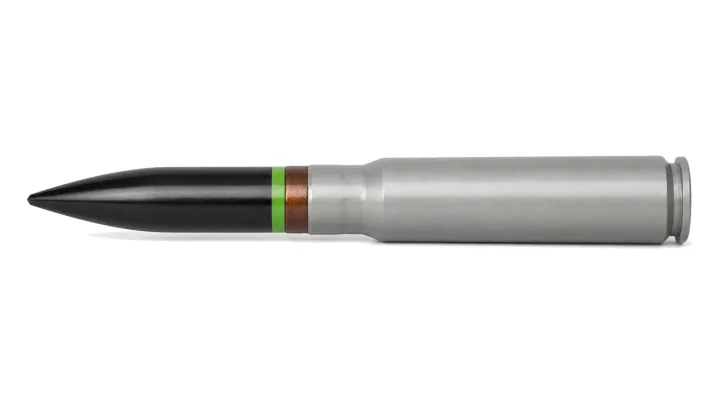

A 30 mm x 165 armour-piercing hard-core tracer round for the 2A42, 2A72 and 2A38M antiaircraft guns, with a tungsten carbide core giving double the penetration of older-generation armour-piercing projectiles.
A 30 mm x 165 round in an early development phase, consisting of a steel cartridge case with a percussion gun primer, propellant charge and a fragmenting armour-piercing projectile that acts as a penetrator with enhanced lateral effect.
A 30 mm x 173 armour-piercing round for the MK30-2 gun and the domestic 30 mm TA M12 gun, consisting of a steel cartridge case with percussion gun primer and booster, propellant charge and an armour-piercing projectile.
A 30 mm x 173 armour-piercing fin-stabilised discarding sabot tracer round, still in the development phase, whose sub-calibre tungsten alloy penetrator is launched by a lightweight discarding sabot, for the MK30-2 gun and the domestic 30 mm TA M12 gun.
A 30 mm x 173 armour-piercing high-explosive incendiary round with a hard-core penetrator and an impact base fuze with delay action, for the MK30-2 gun and the domestic 30 mm TA M12 gun.

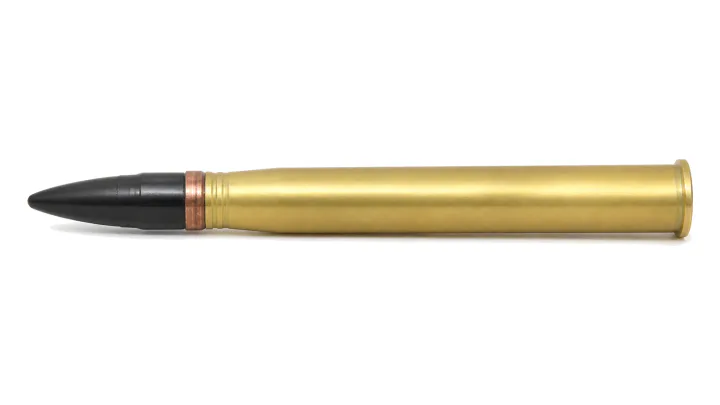

A 40 mm x 365 round consisting of a brass cartridge case with a percussion gun primer, propellant charge and an armour-piercing projectile.

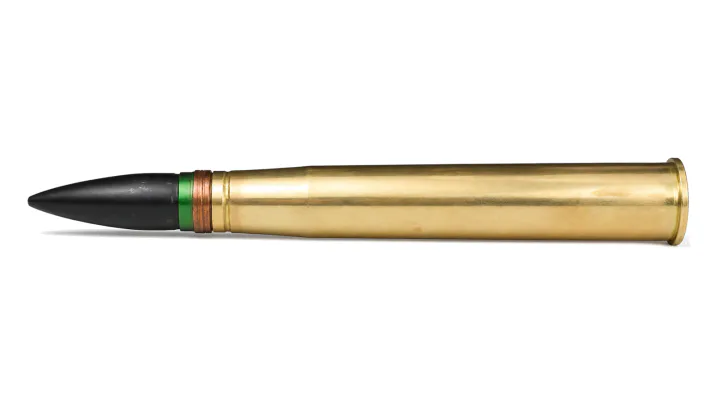

40x365 mm armour-piercing tracer round, 935 g projectile at 1025 m/s with 3 s tracer, for the 40 mm L/70 gun.

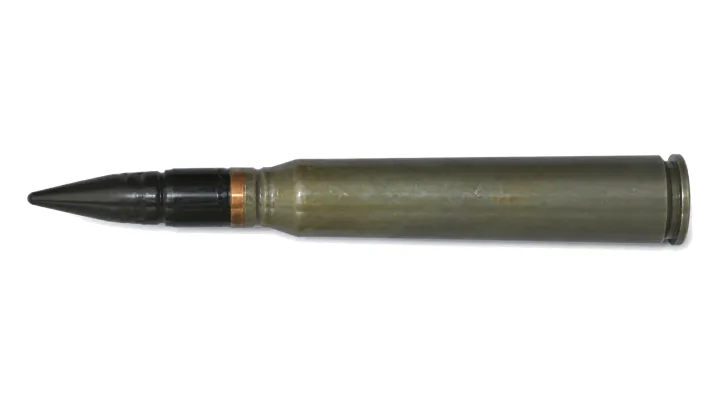

A 20 mm x 102 round with a brass cartridge case, electrical gun primer, propellant charge and an armour-piercing projectile, for the M621, M61A, M39 and M197 guns.
Eighteen line items carry the practice nature. Designation families run 20 mm x 102, 20 mm x 110, 20 mm x 110RB, 23 mm x 115, 23 mm x 152B, 30 mm x 165, 30 mm x 173, 40 mm x 311, 40 mm x 365 and 57 mm x 438, in the TP and tracer TP-T suffixes. Every record states a round mass, a muzzle velocity and an operating temperature band, and nearly all add a projectile mass. Two 20 mm x 110 records are written for the 20 mm subcalibre training barrels M78 and M79 rather than for a full-calibre gun.

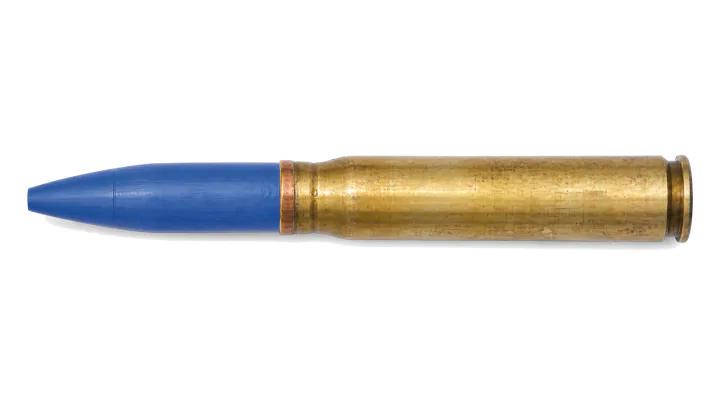

A 20 mm x 110 training round for the 20 mm subcalibre training barrels M78 and M79 fitted to larger weapons, whose projectile is loaded with flash composition and fitted with a point-detonating fuze with mechanical self-destruction.

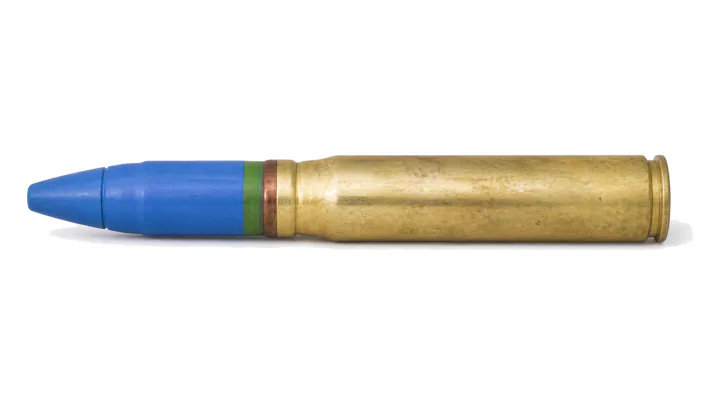

20x110 mm Hispano-pattern target-practice tracer round with an inert projectile and at least 3.2 s tracer, ballistically matched to service rounds.
A 20 mm x 110 training tracer round for the 20 mm subcalibre training barrels M78 and M79 fitted to larger weapons, whose projectile is loaded with flash and tracer composition and fitted with a point-detonating fuze with mechanical self-destruction.

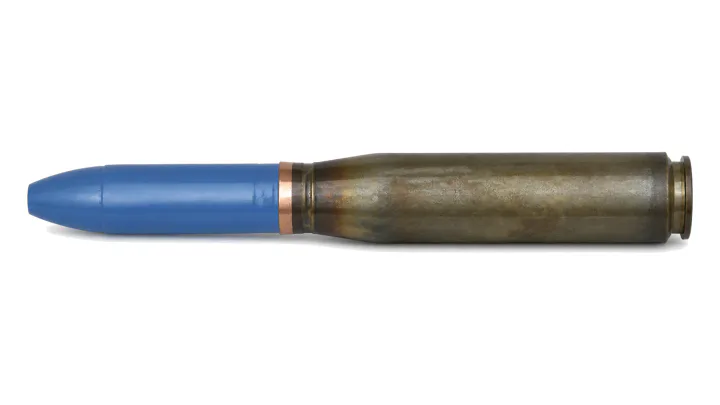

A 20 mm x 110RB target practice round made up of a brass cartridge case with a percussion gun primer, a propellant charge and a target practice projectile, for the 20 mm MK-IV Oerlikon antiaircraft gun.

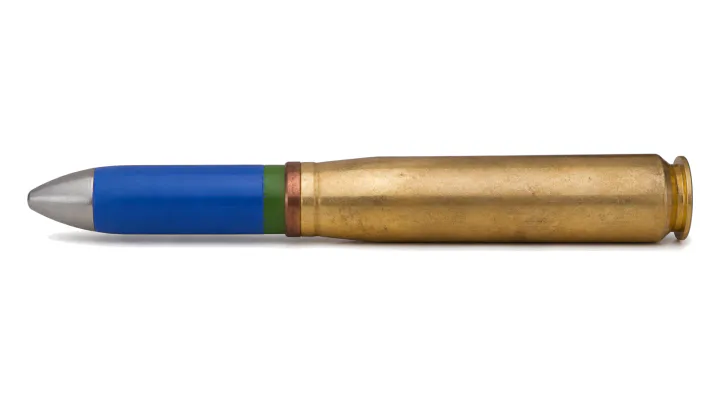

20x110RB mm target-practice tracer round with a 122 g inert projectile, matched to service ballistics.
A 23 mm x 115 target practice round for aircraft guns, made up of a brass cartridge case with a percussion gun primer, a propellant charge and a target practice projectile.
A 23 mm x 115 target practice tracer round for aircraft guns, made up of a brass cartridge case with a percussion gun primer, a propellant charge and a target practice projectile filled with tracer composition.
A target practice round for the 23 mm ZU-23-2 and ZSU-23-4 antiaircraft guns, consisting of a steel cartridge case with percussion gun primer, propellant charge and a target practice projectile.

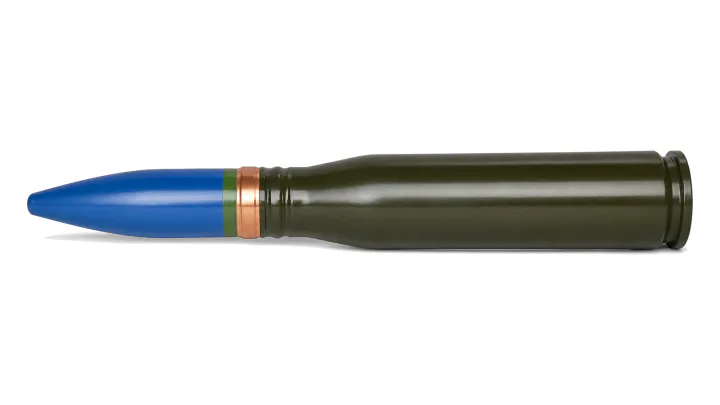

23x152B mm target practice tracer round, 191 g inert projectile at 970 m/s with at least 3.5 s tracer, for ZU-23-2 and ZSU-23-4 guns.
A 30 mm x 165 target practice round for the 2A42, 2A72 and 2A38M antiaircraft guns, consisting of a steel cartridge case with percussion gun primer, propellant charge and a target practice projectile.

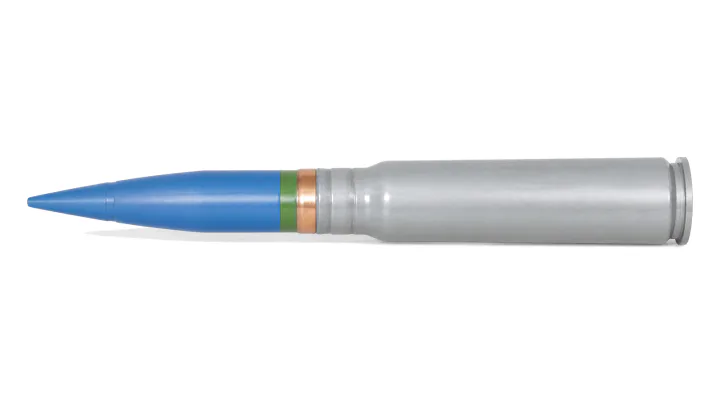

A 30 mm x 165 target practice tracer round for the 2A42, 2A72 and 2A38M antiaircraft guns, whose projectile is filled with tracer composition.
A 30 mm x 173 target practice round for the MK30-2 gun and the domestic 30 mm TA M12 gun, consisting of a steel cartridge case with percussion gun primer and booster, propellant charge and a target practice projectile.

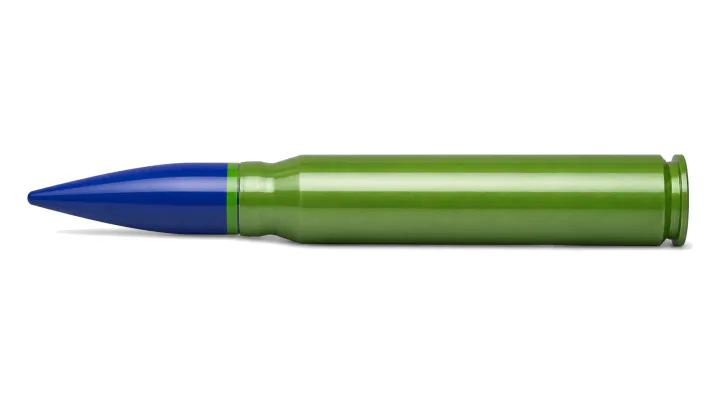

A 30 mm x 173 target practice tracer round for the MK30-2 gun and the domestic 30 mm TA M12 gun, whose low-cost training projectile is a steel shell body with tracer composition and a dummy fuze.

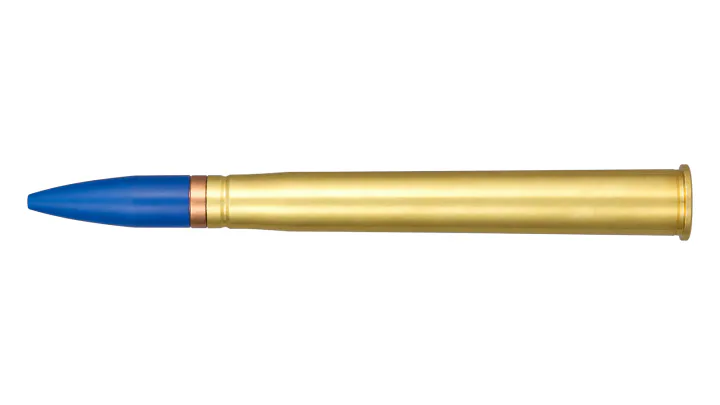

A 40 mm x 311 target practice round for the 40 mm L/60 anti-aircraft gun, consisting of a brass cartridge case with percussion gun primer, propellant charge and a target practice projectile.
A 40 mm x 365 round consisting of a brass cartridge case with a percussion gun primer, propellant charge and a target practice projectile.

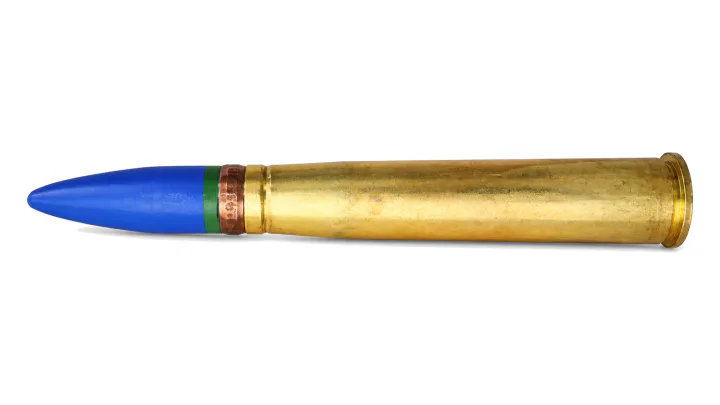

40x365 mm target practice tracer round, 964 g inert projectile at 1005 m/s with 4 s tracer, for the 40 mm L/70 gun.
A 57 mm x 438 target practice round for the 57 mm L/70 Bofors antiaircraft gun, consisting of a brass cartridge case with electrical gun primer, propellant charge and a target practice projectile.

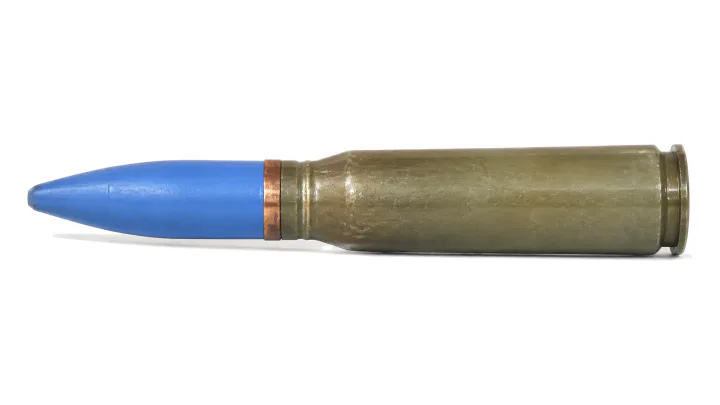

A 20 mm x 102 round with a brass cartridge case, electrical gun primer, propellant charge and a target practice projectile, for the M621, M61A, M39 and M197 guns.
Nine line items cover the pyrotechnic natures held in this domain. The designation families are LP 57 for the 26.5 mm single-star signal cartridge and the MN-01, MN-01/P and MN-01-T marks for the 38 mm cartridges; the 25 mm flambeau, the 26.5 mm trip flare, the 38 mm signalling cartridge, the 38 mm muzzle blast cartridge and the 38 mm shock and flash cartridge are listed without a separate mark. Every record states a calibre and a cartridge mass, and the 38 mm marks add the mass of their pyrotechnic, signalling or active composition.
A 25 mm hand-held illuminating flambeau 105 mm long weighing 77 g, burning after an 11 s delay at an illuminating intensity of 30000 cd.

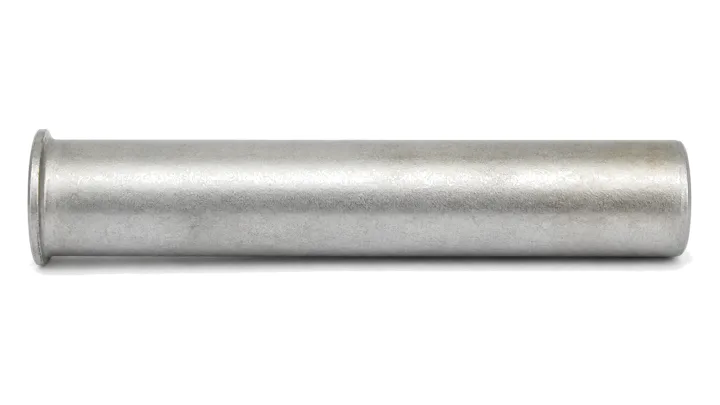

26.5 mm single-star signal cartridge for the 26 mm signal pistol, offered in red, green and white.

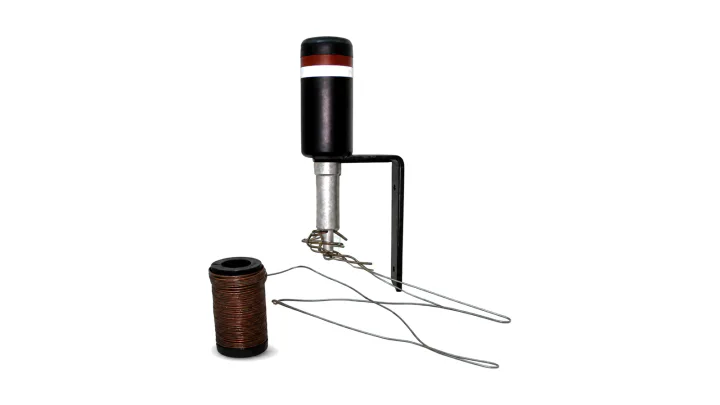

A 26.5 mm trip flare for the security and surveillance of areas, posts, dams and other facilities by day and night, giving a combined light and sound signal.

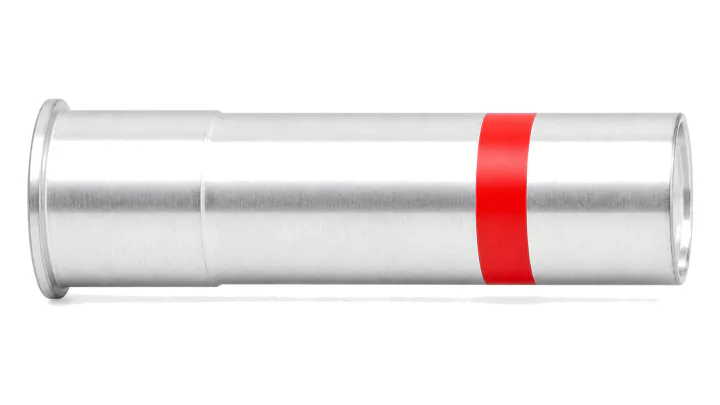

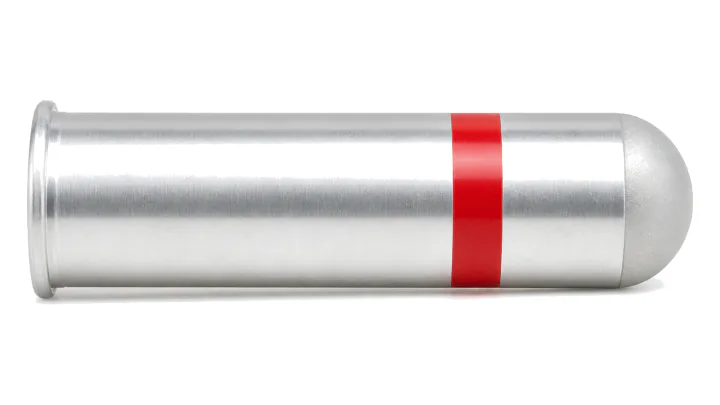

38 mm CS cartridge with a plastic penetrating head that breaks a barricade before the irritant charge is released behind it.
Thermal-generating 38 mm irritant cartridge producing a dense CS smoke cloud on the target for crowd control in open and closed areas.

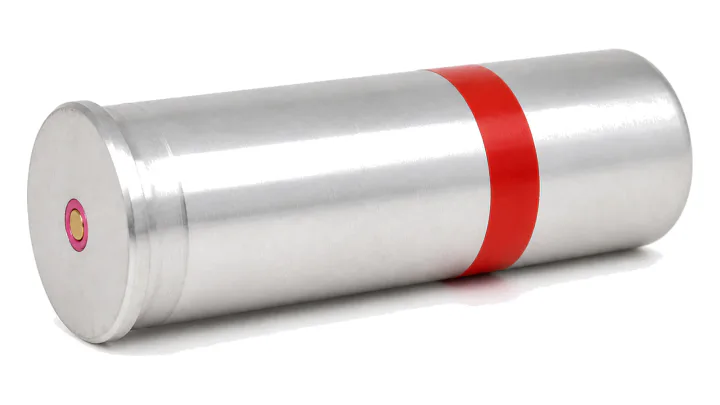

Close-contact 38 mm cartridge that discharges a powdered CS cloud directly from the weapon muzzle.

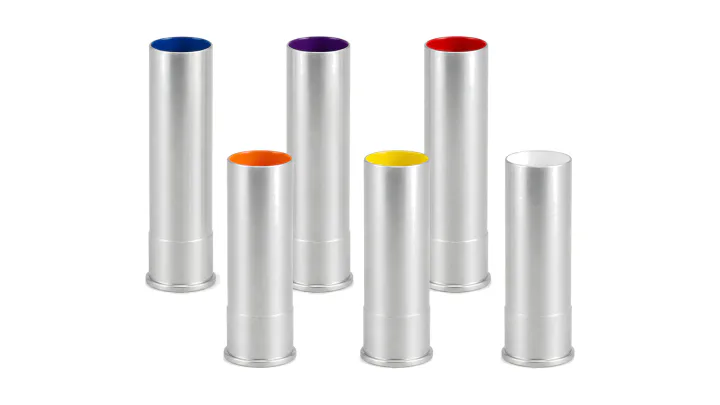

38 mm signalling and screening smoke cartridge in coloured or white fill, also available as a three-part dispersing version.

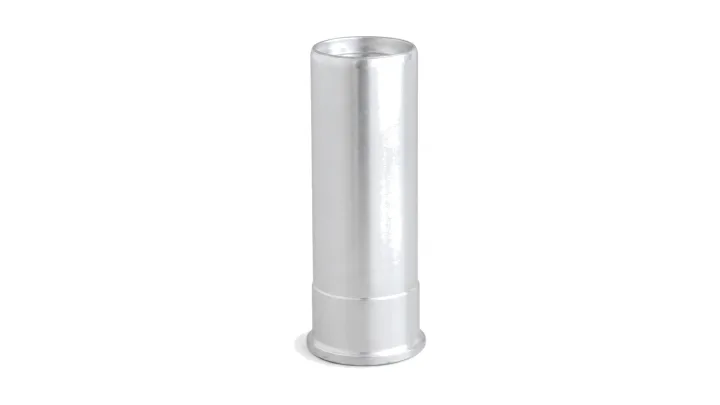

38 mm airburst distraction cartridge producing blast and flash above a crowd from a fragment-free carton shell.

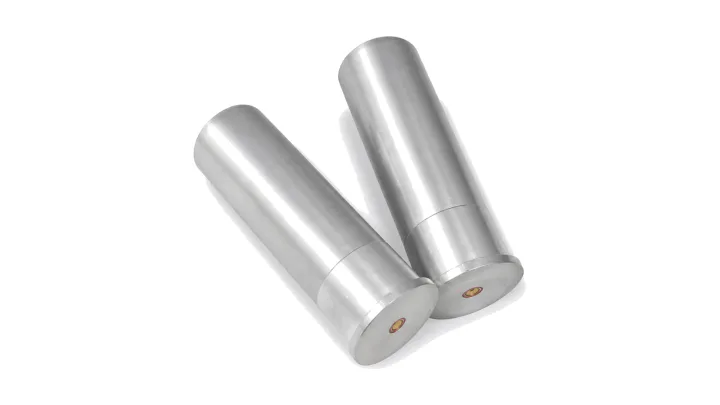

38 mm star signal cartridge for high intensity signalling and illumination on ground, at sea and in the air.

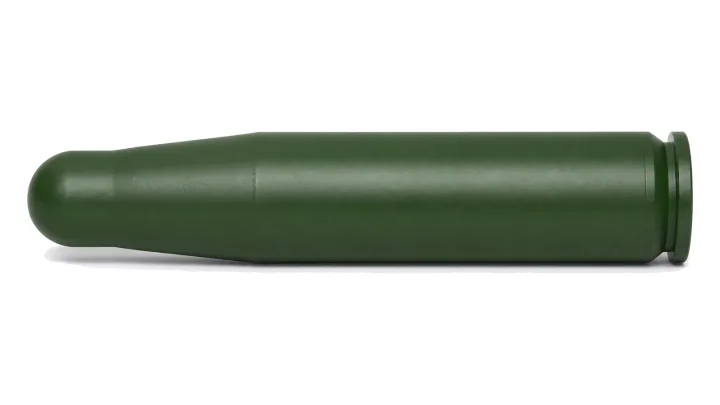

This is the residual group of the domain. It holds the blank designations 20 mm x 110 BLANK, 23 mm x 152B BLANK and 40 mm x 365 BLANK, the 38 mm eject cartridge, the 40 mm x 365 AHEAD round with its steel roller payload, and the two 38 mm kinetic marks MN-24 GK and MN-03 / MN-05. Every record states a calibre and a cartridge or round mass; beyond that the entries share little, so the figures that matter differ from line to line, from propellant charge mass on the blanks to payload description on the kinetic marks.

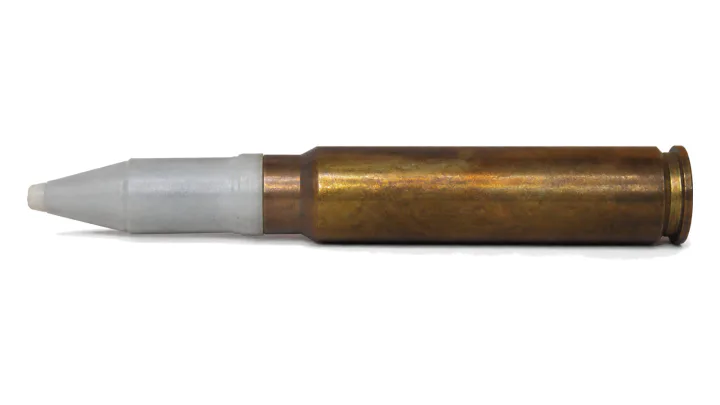

20x110 mm Hispano-pattern blank round for training and salute firing from M55 and HS 404 / HS 804 guns.
A non-lethal blank round for the 23 mm ZU-23-2 antiaircraft gun, made up of a steel cartridge case with percussion gun primer and a specially designed propellant charge that ensures proper gun functioning, intended for realistic force-on-force training and firearm familiarisation at low cost.
An anti-drone round for the 40 mm L/70 gun consisting of a brass cartridge case with percussion gun primer, propellant charge and an AHEAD projectile filled with steel rollers released by a small ejection charge, fitted with a point-detonating remote-settable electronic time fuze with electronic self-destruction.

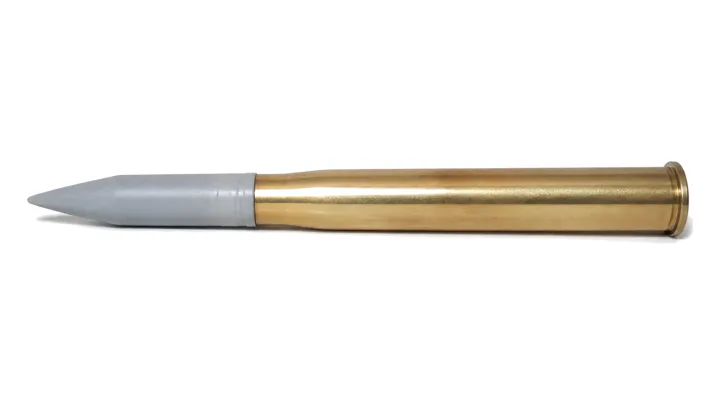

40x365 mm blank round for drill and salute firing from the 40 mm L/70 gun, maximum range 120 m.
38 mm black powder ejecting cartridge used to launch payload devices from a 38 mm weapon.
38 mm cartridge dispersing 24 rubber balls for area shock effect against aggressive individuals at short range.
38 mm kinetic cartridge firing a rubber flying-baton projectile, in one-part (MN-05) and three-part (MN-03) versions.
