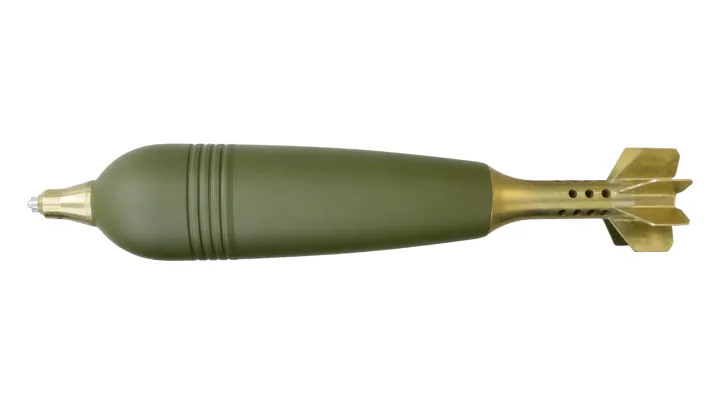

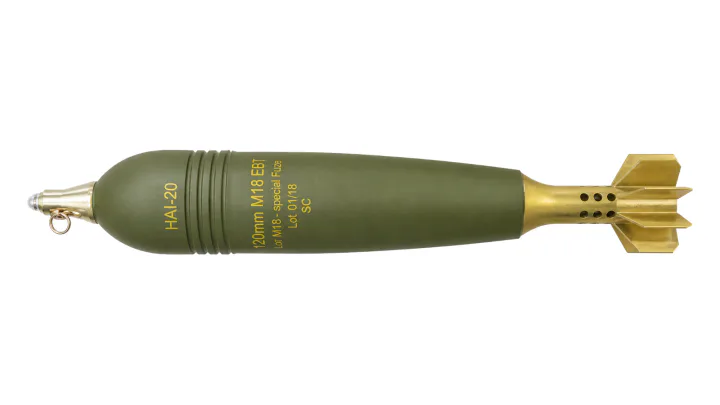

EBT M18
120 mm HE bomb EBT M18
High-explosive 120 mm bomb for destroying different targets on the ground, consisting of a body filled with high explosive, a stabilizer and the special fuze UT M18.
- Fuze
- UT M18
- Calibre (mm)
- 120
- Type
- HE SHELL
Supply domain
Mortar Bombs
The mortar-bomb catalogue is arranged around 60 mm, 81 mm, 82 mm, combined 81/82 mm and 120 mm requirements. Separate 81 mm and 82 mm designations are preserved where the source identifies one calibre, while 81/82 mm is used only for line items published for both. The range includes high-explosive, smoke, illuminating, practice, thermobaric and other designated variants, allowing a procurement team to move from a broad requirement to the relevant item page without treating unlike rounds as interchangeable.
Each item page carries the available technical data, images and revisioned English datasheet. NATO, Eastern and Both standard labels reflect the catalogue record and are not inferred from calibre. Compatibility with a mortar system, fuze, charge and firing table is confirmed against the stated requirement. Final configuration, packing, inspection, availability and delivery remain subject to destination, quantity, end use, export approval and a verified End-User Certificate. Supply enquiries are handled for government end-users and licensed entities.
- Line items
- 62
- Calibres
- 5
- Natures
- 5
- Standards
- NATO · Eastern · Both
By calibre
Related supply domains
High-explosive (HE) mortar bombs
Explore this typeThe high-explosive group covers twenty-five line items in 60 mm, 81 mm, 81/82 mm, 82 mm and 120 mm. Designation families include EBT M18, M62P8 to M62P11, M72, M72/M74, M72P3/M74P3, M72P4/M74P4, M73 and its P3 to P5 variants, M08 and M08 P1, M09P1, M91, Mk10, Mk10P1, Mk11, Mk11P1, Mk12-L, Mk12P1 and Mk12P1-L. Every entry states a calibre, a fuze designation and a maximum range figure, and most add a mass with fuze; fillings are trotyl (TNT) or hexolite (RDX/TNT) where the source names one.

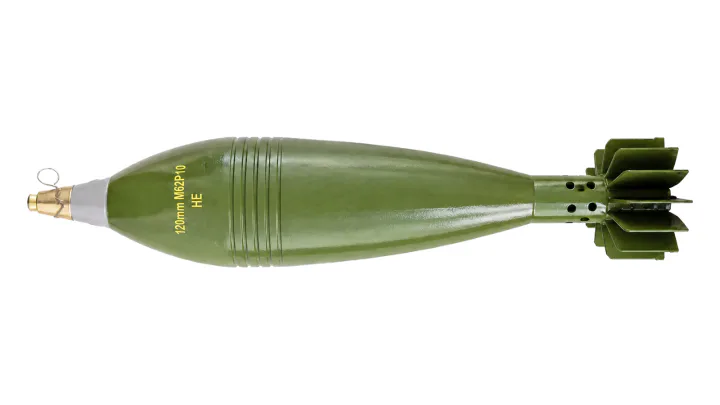

M62P10
120 mm M62P10 HE mortar bomb
120 mm high-explosive mortar bomb with 2400 g TNT fill and UT M68 P1 superquick fuze, reaching 6555 m.
- Maximum range
- 6555 m (120 mm mortar, barrel length 1500 mm)
- Fuze
- UT M68 P1, impact superquick action
- Length with fuze
- 593 mm

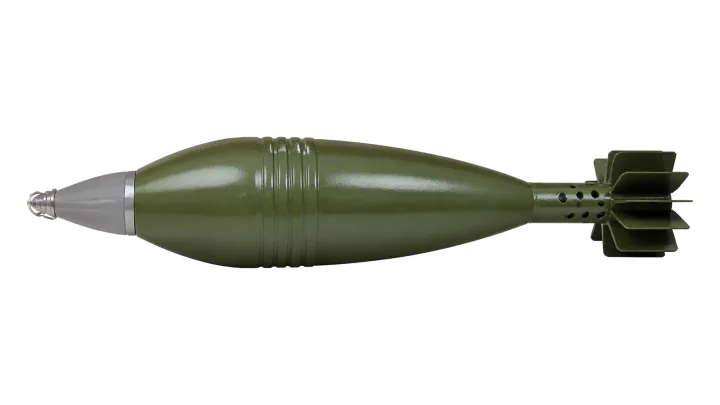

M62P11
120 mm M62P11 HE mortar bomb
120 mm high-explosive mortar bomb with 2400 g TNT fill and UT M88 P2 superquick fuze, reaching 7100 m.
- Maximum range
- 7100 m (120 mm mortar, barrel length 1500 mm)
- Fuze
- UT M88 P2, impact superquick
- Length with fuze
- 626 mm

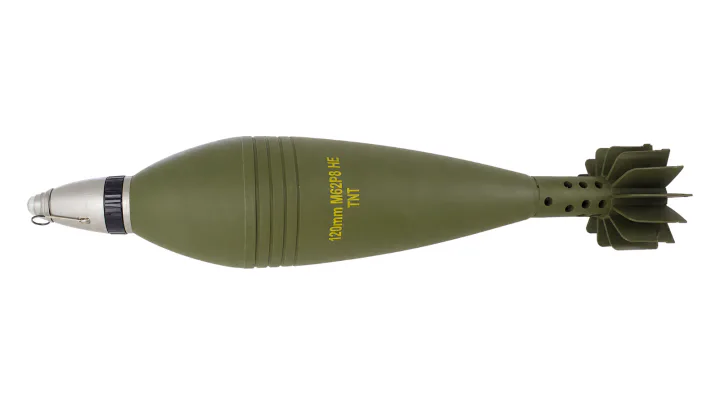

M62P8
120 mm M62P8 HE mortar bomb
120 mm high-explosive mortar bomb with 2.4 kg TNT fill and superquick-delay fuze, reaching 6555 m with 20 m killing radius.
- Maximum range
- 6555 m (120 mm mortar M75, barrel length 1500 mm)
- Fuze
- UTU M93P1, point detonating with delay
- Length with fuze
- 606 mm
M62P9
120 mm M62P9 HE mortar bomb
120 mm high-explosive mortar bomb with 2.4 kg TNT fill and UT M88 P2 superquick fuze, reaching 6555 m.
- Maximum range
- 6555 m (120 mm mortar M75, barrel length 1500 mm)
- Fuze
- UT M88 P2, impact superquick action
- Length with fuze
- 606 mm

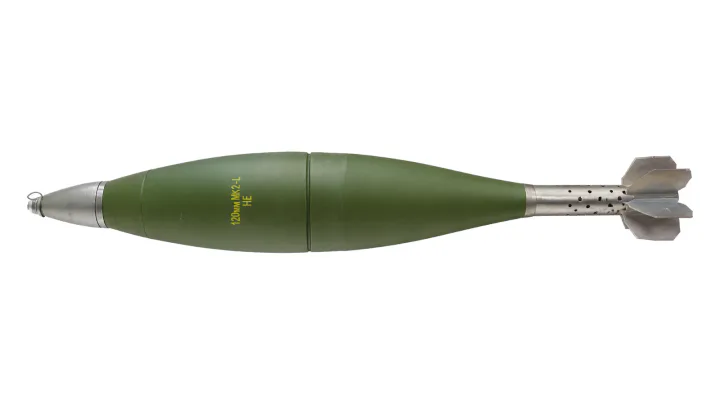

Mk12-L
120 mm Mk12-L HE mortar bomb
Long-range 120 mm high-explosive mortar bomb with 3100 g hexolite fill, reaching 9400 m from a 1900 mm barrel.
- Maximum range
- 9400 m (120 mm mortar M75, barrel length 1900 mm)
- Fuze
- UT M88 P2, impact superquick action
- Length with fuze
- 807 mm

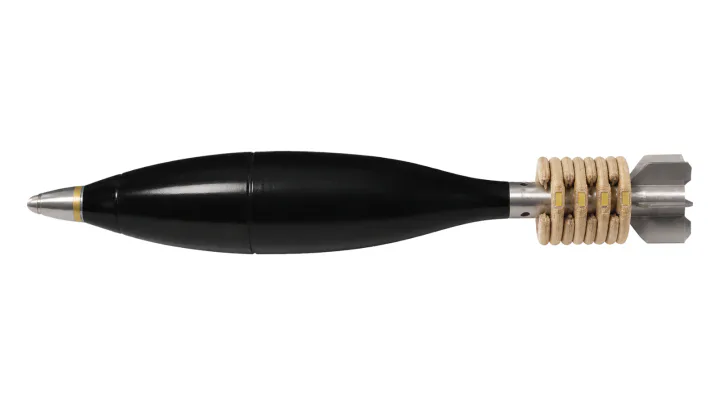

Mk12P1
120 mm Mk12P1 HE mortar bomb
120 mm high-explosive mortar bomb with 2900 g hexolite fill, fired with eight increment charges to 7400 m.
- Maximum range
- 7400 m (0+8) (120 mm mortar M75, barrel length 1500 mm)
- Fuze
- UTU M93P SQ/D, impact
- Length with fuze
- 800 mm

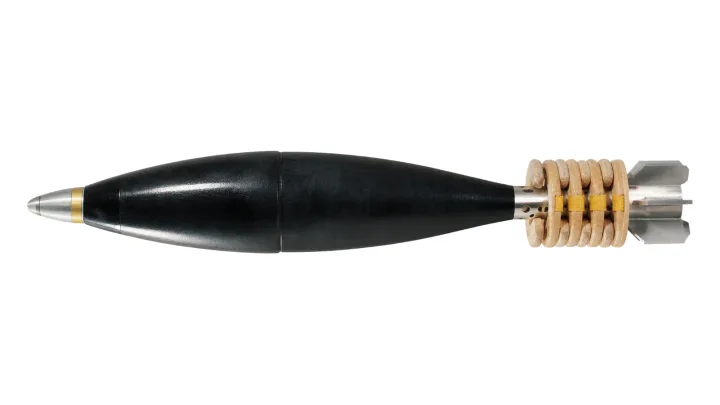

Mk12P1-L
120 mm Mk12P1-L HE mortar bomb
Long-range 120 mm high-explosive mortar bomb with 2900 g hexolite fill, fired with ten increment charges to 9400 m.
- Maximum range
- 9400 m (0+10) (120 mm mortar M75, barrel length 1800 mm)
- Fuze
- UTU M93P1 SQ/D, impact
- Length with fuze
- 800 mm
M08
60 mm M08 HE mortar bomb
60 mm high-explosive mortar bomb with 220 g TNT fill and impact fuze, ranging 94 m to 2550 m with four increment charges.
- Maximum range
- 2550 m (0+4) (60 mm mortar M57, barrel length 720 mm)
- Fuze
- UT M88 P1, impact
- Length with fuze
- 301 mm

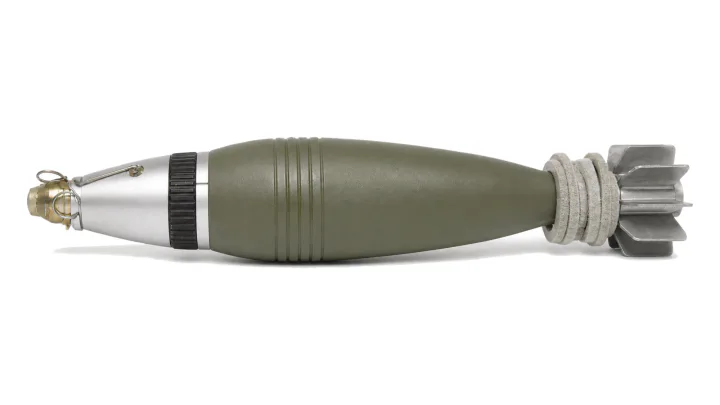

M08 P1
60 mm M08 P1 HE mortar bomb
60 mm high-explosive mortar bomb with 220 g TNT fill, fitted with the UTU M93-N impact fuze giving 50 m muzzle safety.
- Maximum range
- 2550 m (0+4) (60 mm mortar M57, barrel length 720 mm)
- Fuze
- UTU M93-N, impact
- Length with fuze
- 301 mm
M73
60 mm M73 HE mortar bomb
60 mm high-explosive mortar bomb with 250 g TNT fill and superquick impact fuze, reaching 2500 m from a 650 mm barrel.
- Maximum range
- 2500 m (60 mm mortar M57, barrel length 650 mm)
- Fuze
- UT M68P1, impact superquick action
- Length with fuze
- 286 mm

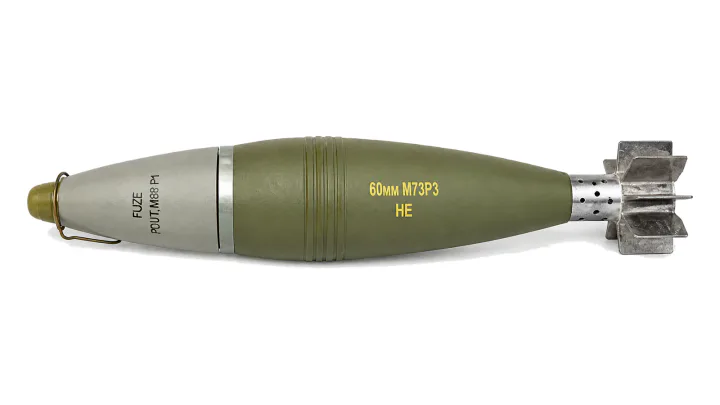

M73P3
60 mm M73P3 HE mortar bomb
60 mm high-explosive mortar bomb with 250 g TNT fill, fitted with the UT M88 P1 superquick fuze giving 70 m muzzle safety.
- Maximum range
- 2500 m (60 mm mortar, barrel length 650 mm)
- Fuze
- UT M88 P1, impact superquick action
- Length with fuze
- 301 mm

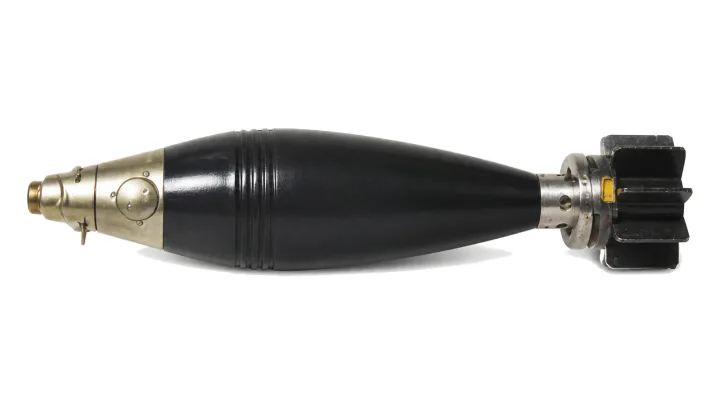

M73P4
60 mm M73P4 HE mortar bomb
60 mm high-explosive mortar bomb with 220 g TNT fill and UT M68 P1 impact fuze, ranging 94 m to 2550 m.
- Maximum range
- 2550 m (0+4) (60 mm mortar M57, barrel length 720 mm)
- Fuze
- UT M68 P1, impact
- Length with fuze
- 291 mm
M73P5
60 mm M73P5 HE mortar bomb
60 mm high-explosive mortar bomb with 220 g TNT fill and UTU M93-N impact fuze giving 50 m muzzle safety.
- Maximum range
- 2550 m (0+4) (60 mm mortar M57, barrel length 720 mm)
- Fuze
- UTU M93-N, impact
- Length with fuze
- 301 mm

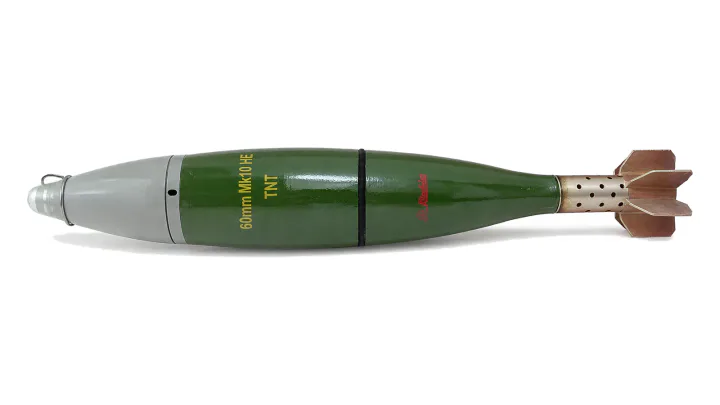

Mk10
60 mm Mk10 HE mortar bomb
60 mm high-explosive mortar bomb with 380 g fill and superquick impact fuze, reaching 5035 m from a 1200 mm barrel.
- Maximum range
- 5035 m (60 mm mortar M90, barrel length 1200 mm)
- Fuze
- UT M88 P1, impact superquick action
- Length with fuze
- 410 mm
Mk10P1
60 mm Mk10P1 HE mortar bomb
60 mm high-explosive mortar bomb with 400 g fill and superquick-delay fuze, fired with up to six increment charges to 5100 m.
- Maximum range
- 5100 m (0+6) (60 mm mortar M95, barrel length 1300 mm)
- Fuze
- UTU M93, superquick-delay action
- Length with fuze
- 410 mm

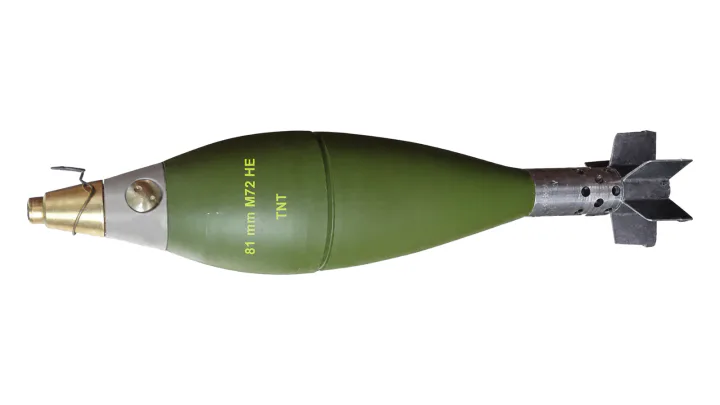

M72
81 mm M72 HE mortar bomb
81 mm high-explosive mortar bomb with 650 g TNT fill and superquick impact fuze, reaching 4900 m from a 1150 mm barrel.
- Maximum range
- 4900 m (81 mm mortar, barrel length 1150 mm)
- Fuze
- UT M68 P1, impact superquick action
- Length with fuze
- 387 mm
M72 (UTU M93-N)
81 mm M72 HE mortar bomb, UTU M93-N fuzed
81 mm high-explosive mortar bomb with 0.650 kg TNT fill, fuzed UTU M93-N for 50 m muzzle safety, reaching 4900 m.
- Maximum range
- 4900 m (barrel length 1150 mm)
- Fuze
- UTU M93-N
- Length with fuze
- 400 mm

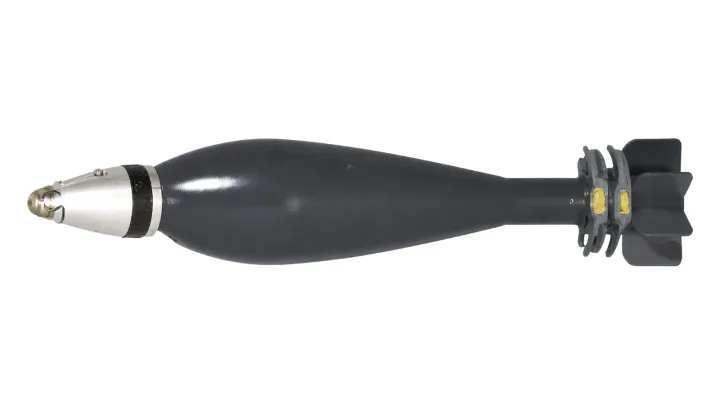

M09P1
81/82 mm M09P1 HE mortar bomb
81/82 mm high-explosive mortar bomb with 680 g fill, fired with six increment charges from 91 m to 5070 m.
- Maximum range
- 5070 m (0+6) (81/82 mm mortar M69 B-D, barrel length 1450 mm)
- Fuze
- UT M93-N, impact
- Length with fuze
- 400 mm

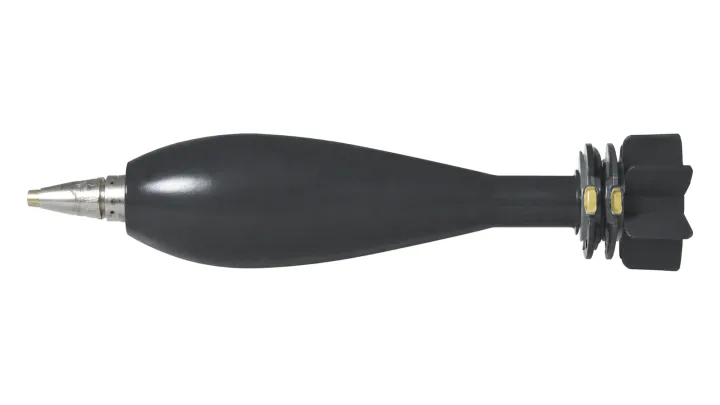

M72/M74
81/82 mm M72/M74 HE mortar bomb
81/82 mm high-explosive mortar bomb with 680 g fill and UT M68P1 impact fuze, ranging 91 m to 5070 m.
- Maximum range
- 5070 m (0+6) (81/82 mm mortar M69 B-D, barrel length 1450 mm)
- Fuze
- UT M68P1, impact
- Length with fuze
- 375 mm

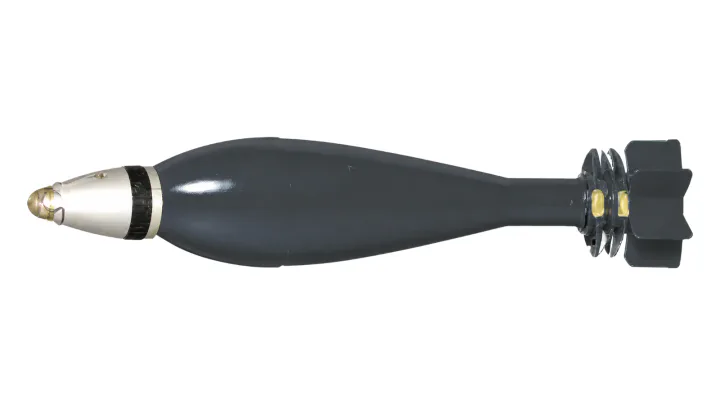

M72P3/M74P3
81/82 mm M72P3/M74P3 HE mortar bomb
81/82 mm high-explosive mortar bomb with 680 g fill and UT M93-N impact fuze giving 50 m muzzle safety.
- Maximum range
- 5070 m (0+6) (81/82 mm mortar M69 B-D, barrel length 1450 mm)
- Fuze
- UT M93-N, impact
- Length with fuze
- 400 mm

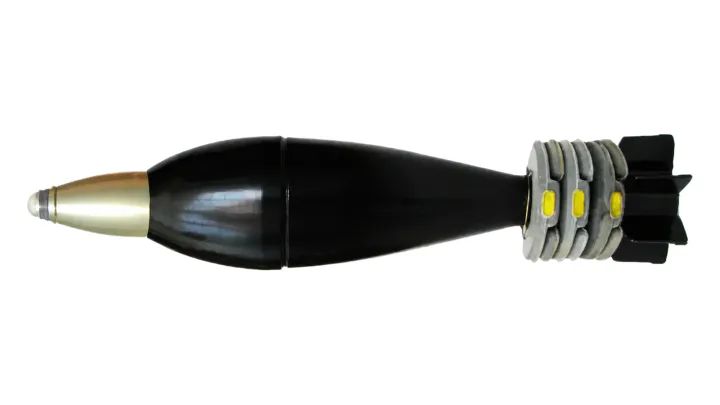

M72P4/M74P4
81/82 mm M72P4/M74P4 HE mortar bomb
81/82 mm high-explosive mortar bomb with 680 g fill and UT M88P1 impact fuze giving 70 m muzzle safety.
- Maximum range
- 5070 m (0+6) (81/82 mm mortar M69 B-D, barrel length 1450 mm)
- Fuze
- UT M88P1, impact
- Length with fuze
- 400 mm

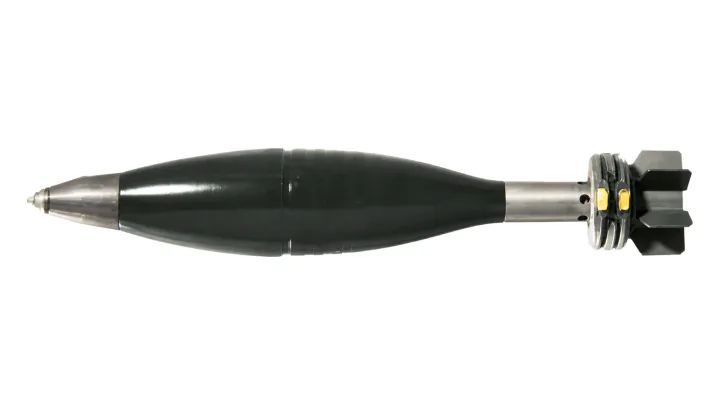

M91
81/82 mm M91 HE mortar bomb
Extended-range 81/82 mm high-explosive mortar bomb with 850 g hexolite fill, reaching 6500 m with 18 m killing radius.
- Maximum range
- 6500 m (0+6) (81/82 mm mortar M69 B-D, barrel length 1450 mm)
- Fuze
- UT M88 P1, impact
- Length with fuze
- 480 mm

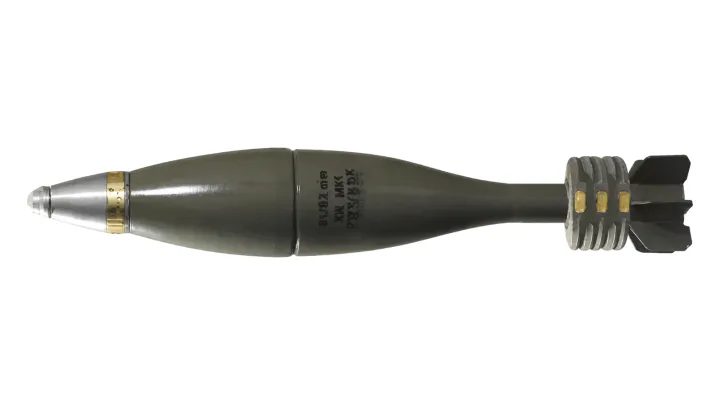

Mk11P1
81/82 mm Mk11P1 HE mortar bomb
Extended-range 81/82 mm high-explosive mortar bomb with 850 g hexolite fill and UTU M93N fuze, reaching 6500 m.
- Maximum range
- 6500 m (0+6) (81/82 mm mortar M69 B-D, barrel length 1450 mm)
- Fuze
- UTU M93N, impact
- Length with fuze
- 480 mm

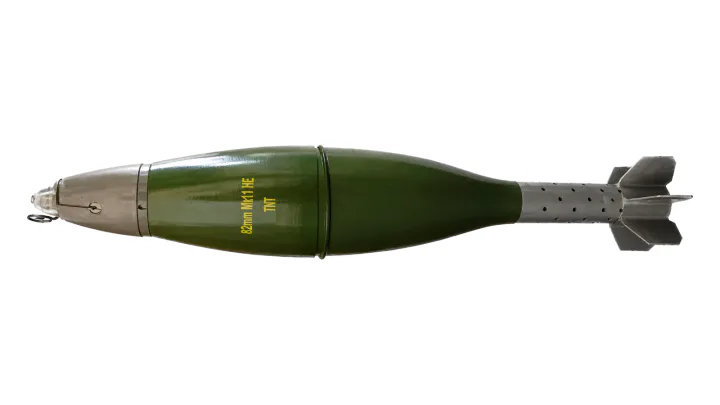

Mk11
82 mm Mk11 HE mortar bomb
82 mm high-explosive mortar bomb with 900 g TNT fill and superquick impact fuze, reaching 6500 m with 18 m killing radius.
- Maximum range
- 6500 m (82 mm mortar M69 B-D, barrel length 1450 mm)
- Fuze
- UT M88 P1, impact superquick action
- Length with fuze
- 478 mm
Smoke mortar bombs
Explore this typeThe smoke group covers sixteen line items in 60 mm, 81 mm, 81/82 mm and 120 mm. Designation families are M64P2, M64P3 and M64P4, M89, Mk12, M08, M93, M73, M73P1 and M73P2, Mk10, M72P1, M09, M88P1 and M91. Every entry states the calibre, the mass with fuze, the mass of the smoke charge, a fuze designation and a maximum range figure. Six are white phosphorus lines, five carry an HC composition described as screening smoke, and the remainder state a smoke charge without naming the composition.
M64P2
120 mm M64P2 white phosphorus smoke mortar bomb
120 mm white phosphorus smoke mortar bomb with 2450 g fill and UT M68P1 impact fuze, ranging 255 m to 6500 m.
- Maximum range
- 6500 m (0+6) (120 mm mortar M75, barrel length 1500 mm)
- Fuze
- UT M68P1, impact
- Length with fuze
- 600 mm

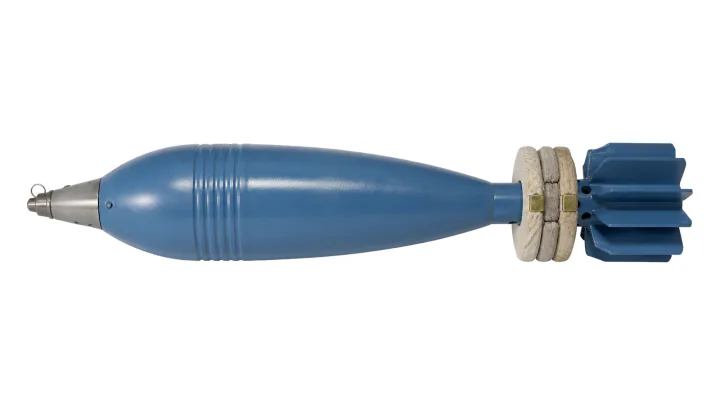

M64P3
120 mm M64P3 white phosphorus smoke mortar bomb
120 mm white phosphorus smoke mortar bomb with 2.35 kg fill and point detonating fuze, reaching 6555 m.
- Maximum range
- 6555 m (barrel length 1500 mm)
- Fuze
- UT M88P1, point detonating
- Length with fuze
- 606 mm

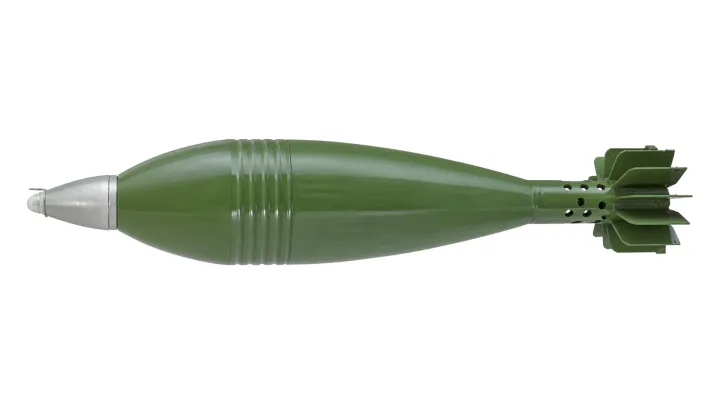

M64P4
120 mm M64P4 white phosphorus smoke mortar bomb
120 mm white phosphorus smoke mortar bomb with 2350 g fill and UT M88 P1 superquick fuze, reaching 7000 m.
- Maximum range
- 7000 m (120 mm mortar, barrel length 1500 mm)
- Fuze
- UT M88 P1, impact superquick
- Length with fuze
- 626 mm

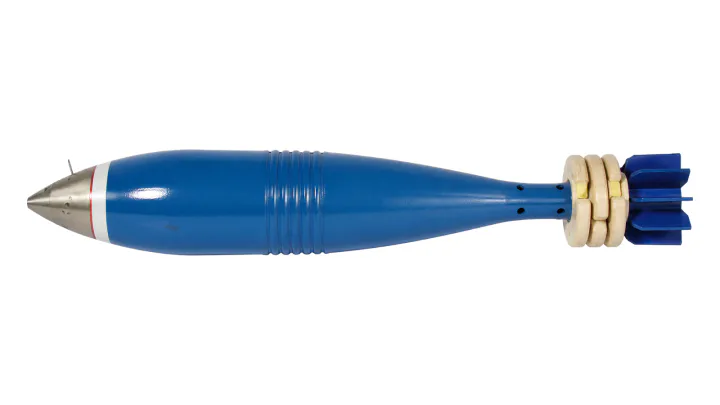

M89
120 mm M89 HC smoke mortar bomb
120 mm screening smoke mortar bomb with 1650 g HC smoke pot smoking for at least 210 s, ranging 400 m to 6000 m.
- Maximum range
- 6000 m (0+5) (120 mm mortar M75, barrel length 1500 mm)
- Fuze
- TP M87, pyrotechnical time fuze
- Length with fuze
- 670 mm
Mk12
120 mm Mk12 smoke mortar bomb
120 mm smoke mortar bomb with 2350 g smoke charge and UT M88 P1 superquick fuze, reaching 7400 m.
- Maximum range
- 7400 m (120 mm mortar, barrel length 1500 mm)
- Fuze
- UT M88 P1, impact superquick
- Length with fuze
- 807 mm

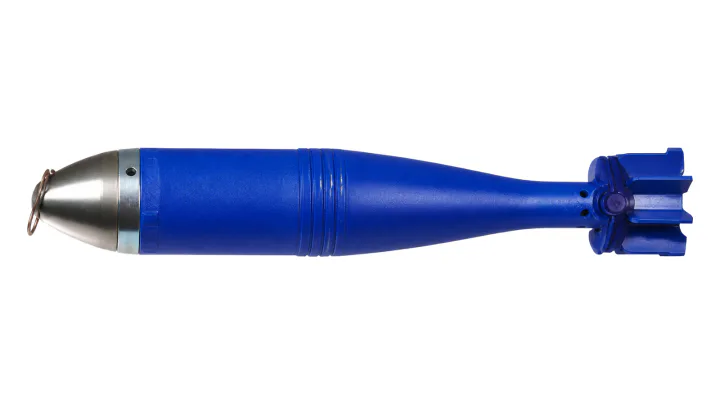

M08
60 mm M08 HC smoke mortar bomb
60 mm screening smoke mortar bomb with 450 g HC composition and pyrotechnic time fuze, ranging 300 m to 2400 m.
- Maximum range
- 2400 m (0+4) (60 mm mortar M57, barrel length 720 mm)
- Fuze
- TP M67, pyrotechnical time fuze
- Length with fuze
- 330 mm

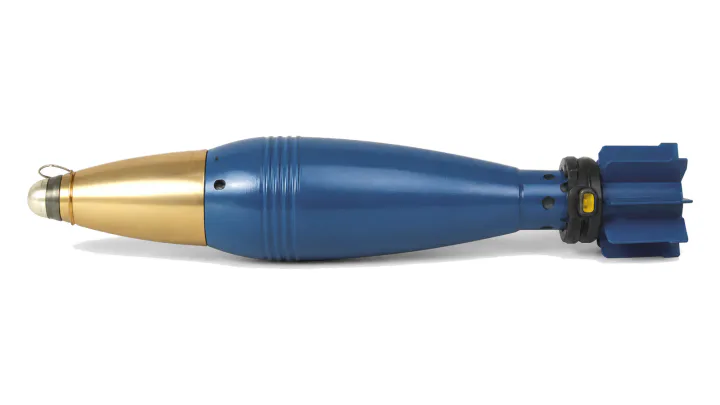

M08
60 mm M08 smoke mortar bomb
60 mm smoke mortar bomb with 190 g smoke charge and superquick impact fuze, ranging 94 m to 2550 m.
- Maximum range
- 2550 m (0+4) (60 mm mortar M57, barrel length 720 mm)
- Fuze
- UT M68 P1, impact superquick action
- Length with fuze
- 296 mm

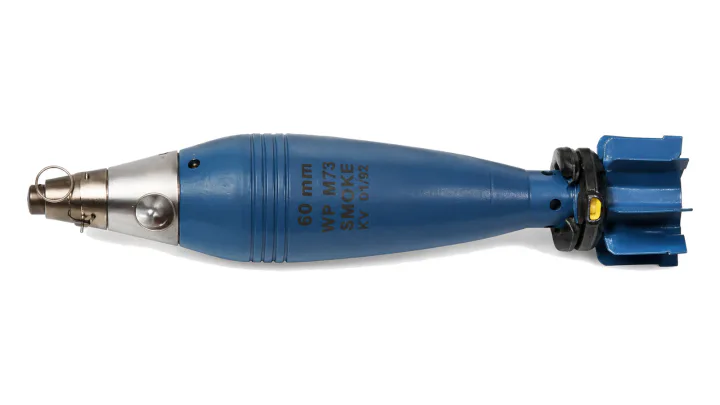

M73
60 mm M73 smoke mortar bomb
60 mm smoke mortar bomb with 190 g smoke charge and UT M68 P1 superquick fuze, ranging 94 m to 2550 m.
- Maximum range
- 2550 m (0+4) (60 mm mortar M57, barrel length 720 mm)
- Fuze
- UT M68 P1, impact superquick action
- Length with fuze
- 286 mm

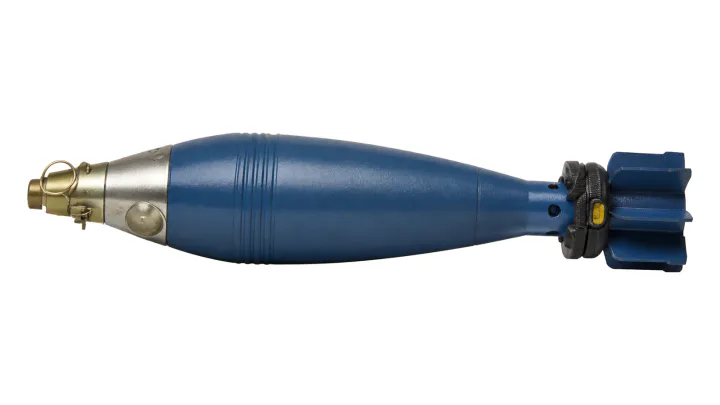

M73P1
60 mm M73P1 white phosphorus smoke mortar bomb
60 mm white phosphorus smoke mortar bomb with 0.22 kg fill and point detonating fuze, reaching 2500 m.
- Maximum range
- 2500 m (barrel length 650 mm)
- Fuze
- UT M68P1, point detonating
- Total length with fuze
- 286 mm

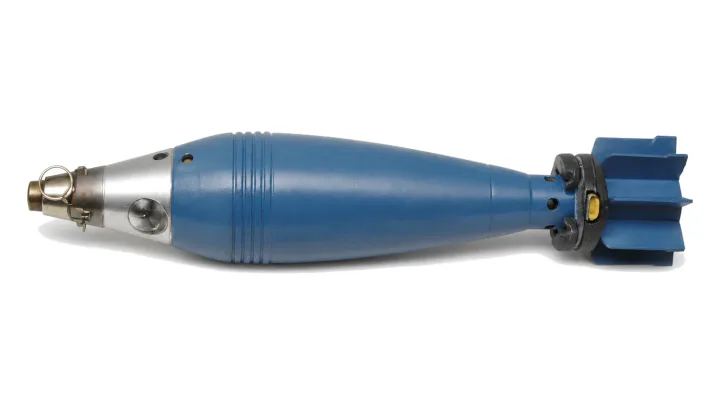

M73P2
60 mm M73P2 smoke mortar bomb
60 mm smoke mortar bomb with 190 g smoke charge, M98 waterproof ignition cartridge and four increment charges.
- Maximum range
- 2550 m (0+4) (60 mm mortar M57, barrel length 720 mm)
- Fuze
- UT M68 P1, impact superquick action
- Length with fuze
- 286 mm

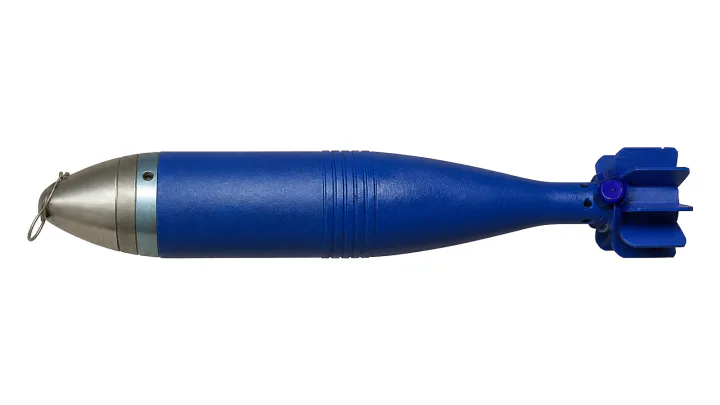

M93
60 mm M93 HC smoke mortar bomb
60 mm screening smoke mortar bomb with 450 g HC composition, using the M98 ignition cartridge, ranging 300 m to 2400 m.
- Maximum range
- 2400 m (0+4) (60 mm mortar M57, barrel length 720 mm)
- Fuze
- TP M67, pyrotechnical time fuze
- Length with fuze
- 330 mm

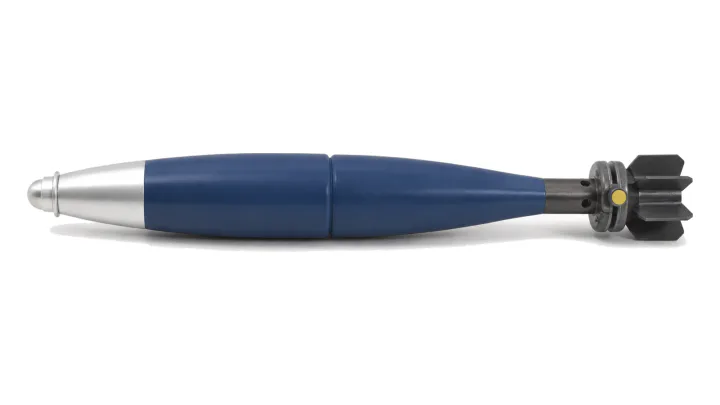

Mk10
60 mm Mk10 smoke mortar bomb
Long-range 60 mm smoke mortar bomb with 300 g smoke charge, fired with six increment charges to 5100 m.
- Maximum range
- 5100 m (60 mm mortar, barrel length 1300 mm)
- Fuze
- UT M88 P1, impact
- Length with fuze
- 410 mm

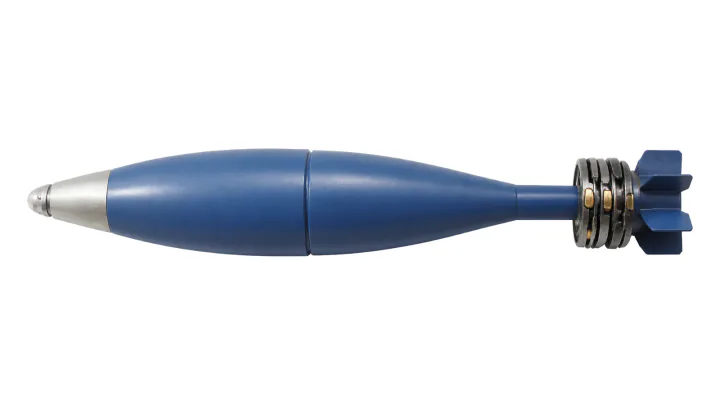

M72P1
81 mm M72P1 white phosphorus smoke mortar bomb
81 mm white phosphorus smoke mortar bomb with 0.6 kg fill and point detonating fuze, reaching 4900 m.
- Maximum range
- 4900 m (barrel length 1150 mm)
- Fuze
- UT M68P1, point detonating
- Length with fuze
- 387 mm

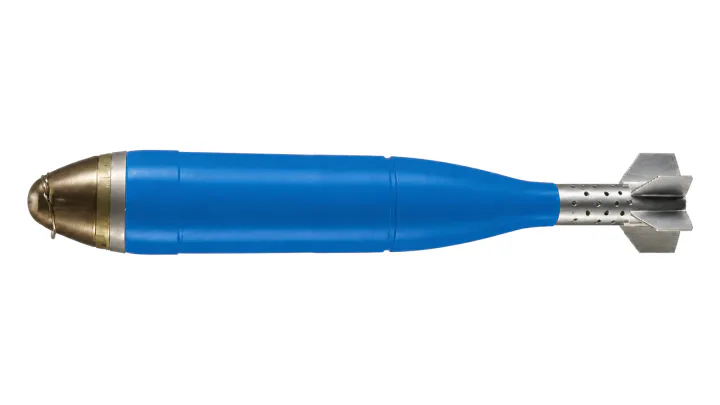

M09
81/82 mm M09 HC smoke mortar bomb
81/82 mm screening smoke mortar bomb with 850 g HC composition smoking for at least 120 s, ranging 300 m to 5480 m.
- Maximum range
- 5480 m (81/82 mm mortar M69 B-D, barrel length 1450 mm)
- Fuze
- TP M67, pyrotechnical time fuze
- Length with fuze
- 480 mm
M88P1
81/82 mm M88P1 HC smoke mortar bomb
81/82 mm screening smoke mortar bomb with 850 g HC composition smoking for at least 120 s, ranging 300 m to 3400 m.
- Maximum range
- 3400 m (0+4) (81/82 mm mortar M69 B-D, barrel length 1150 mm)
- Fuze
- TP M67, pyrotechnical time fuze
- Length with fuze
- 410 mm

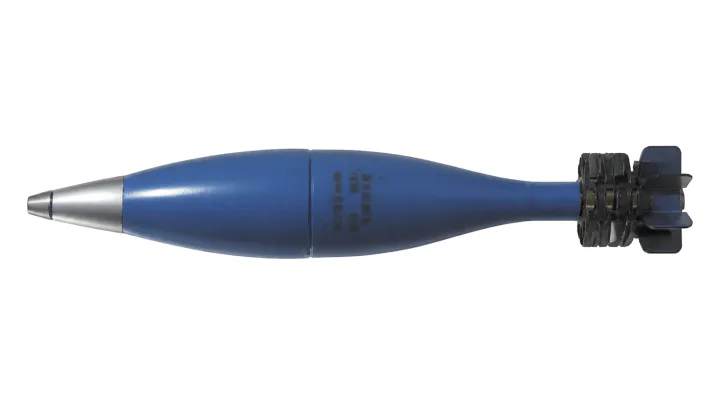

M91
81/82 mm M91 white phosphorus smoke mortar bomb
Extended-range 81/82 mm white phosphorus smoke mortar bomb with 700 g fill, ranging 90 m to 6500 m.
- Maximum range
- 6500 m (0+6) (81/82 mm mortar M69 B-D, barrel length 1450 mm)
- Fuze
- UT M88 P1, impact
- Length with fuze
- 478 mm
Illuminating mortar bombs
Explore this typeThe illuminating group covers twelve line items in 60 mm, 81/82 mm and 120 mm. Designation families are M01, M87P1 and Mk15 in 120 mm; M08, M67, M67P2, M91 and Mk10 in 60 mm; and M09, M67, M95 and Mk11 in 81/82 mm. Every entry states the mass of the illuminating candle, composition or shell charge, a fuze designation, a light output in candela with a burning time, and a maximum range figure. All but the Mk15 are described as parachute bombs; the Mk15 states a 2 m2 canopy.

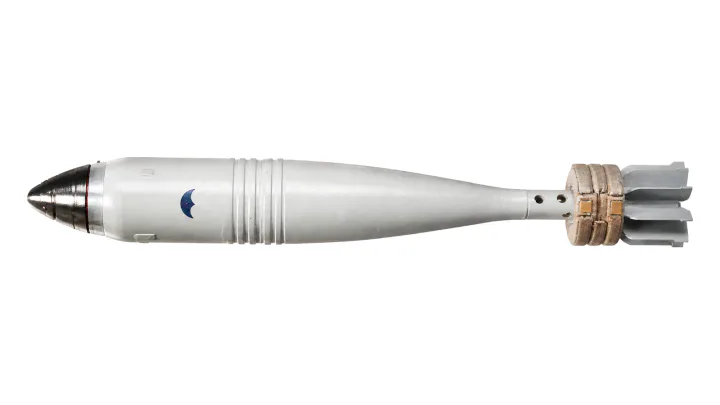

M01
120 mm M01 illuminating mortar bomb
120 mm parachute illuminating mortar bomb with 1200 g candle giving 1000000 Cd for 60 s, ranging 400 m to 6600 m.
- Maximum range
- 6600 m (0+5) (120 mm mortar M75, barrel length 1500 mm)
- Fuze
- TP M87P1, pyrotechnical time fuze
- Length with fuze
- 752 mm
M87P1
120 mm M87P1 illuminating mortar bomb
120 mm parachute illuminating mortar bomb giving 1000000 Cd for 60 s, ranging 400 m to 6000 m on five increment charges.
- Maximum range
- 6000 m (0+5) (120 mm mortar M75, barrel length 1500 mm)
- Fuze
- TP M87, pyrotechnical time fuze
- Length with fuze
- 670 mm
Mk15
120 mm Mk15 illuminating mortar bomb
120 mm illuminating mortar bomb with electronic time fuze, 1230 g composition burning at 1000000 Cd for at least 60 s.
- Maximum range
- 5900 m (barrel length 1500 mm)
- Fuze
- ETSQ M365 electronic time fuze, time setting 5 to 99.9 s
- Total length with fuze
- 725 mm
M08
60 mm M08 illuminating mortar bomb
60 mm parachute illuminating mortar bomb giving 180000 Cd for 35 s, fired to 2450 m with a pyrotechnic time fuze.
- Maximum range
- 2450 m (0+4) (60 mm mortar M57, barrel length 720 mm)
- Fuze
- TP M67, pyrotechnical time fuze
- Length with fuze
- 330 mm
M67
60 mm M67 illuminating mortar bomb
60 mm parachute illuminating mortar bomb with 200 g candle giving 180000 Cd for 35 s, using the M80 ignition cartridge.
- Maximum range
- 2450 m (0+4) (60 mm mortar M57, barrel length 720 mm)
- Fuze
- TP M67, pyrotechnical time fuze
- Length with fuze
- 330 mm
M67P2
60 mm M67P2 illuminating mortar bomb
60 mm parachute illuminating mortar bomb with 200 g candle giving 180000 Cd for 35 s, using the M98 ignition cartridge.
- Maximum range
- 2450 m (0+4) (60 mm mortar M57, barrel length 720 mm)
- Fuze
- TP M67, pyrotechnical time fuze
- Length with fuze
- 330 mm
M91
60 mm M91 illuminating mortar bomb
Long-range 60 mm parachute illuminating mortar bomb with 300 g candle giving 350000 Cd for 30 s out to 4000 m.
- Maximum range
- 4000 m (60 mm mortar, barrel length 1300 mm)
- Fuze
- TP M67, pyrotechnical time fuze
- Length with fuze
- 495 mm
Mk10
60 mm Mk10 illuminating mortar bomb
Long-range 60 mm parachute illuminating mortar bomb, 350000 Cd for 30 s to 4000 m, using the M10 ignition cartridge.
- Maximum range
- 4000 m (60 mm mortar, barrel length 1300 mm)
- Fuze
- TP M67, pyrotechnical time fuze
- Length with fuze
- 495 mm
M09
81/82 mm M09 illuminating mortar bomb
81/82 mm parachute illuminating mortar bomb with 400 g candle giving 500000 Cd for 40 s, ranging 250 m to 3650 m.
- Maximum range
- 3650 m (81/82 mm mortar M69 B-D, barrel length 1450 mm)
- Fuze
- TP M67, pyrotechnical time fuze
- Length with fuze
- 410 mm
M67
81/82 mm M67 illuminating mortar bomb
81/82 mm parachute illuminating mortar bomb, 500000 Cd for 40 s, using the M11 waterproof ignition cartridge.
- Maximum range
- 3650 m (81/82 mm mortar M69 B-D, barrel length 1450 mm)
- Fuze
- TP M67, pyrotechnical time fuze
- Length with fuze
- 410 mm
M95
81/82 mm M95 illuminating mortar bomb
Extended-range 81/82 mm illuminating mortar bomb giving 750000 Cd for 40 s out to 5480 m on six increment charges.
- Maximum range
- 5480 m (0+6) (81/82 mm mortar M69 B-D, barrel length 1450 mm)
- Fuze
- TP M67P2, pyrotechnical time fuze
- Length with fuze
- 530 mm
Mk11
81/82 mm Mk11 illuminating mortar bomb
Extended-range 81/82 mm illuminating mortar bomb, 750000 Cd for 40 s to 5480 m, using the M11 ignition cartridge.
- Maximum range
- 5480 m (0+6) (81/82 mm mortar M69 B-D, barrel length 1450 mm)
- Fuze
- TP M67P2, pyrotechnical time fuze
- Length with fuze
- 530 mm
Thermobaric mortar bombs and air-drop shells
Explore this typeThe thermobaric group covers eight 120 mm line items under the designations HAL-20, TB, Mk12-TB, Mk12L-TB, Mk12PX-TB and Mk12LPX-TB. Six are mortar-launched bombs and two are air-drop shells released from a stated minimum height of 50 m. Every entry names a thermobaric explosive charge with its mass, a length and mass with fuze, a fuze designation, an overpressure figure at a stated distance and an operating temperature range. Fills are HAL-20, PBX or a charge given simply as thermobaric.
HAL-20
120 mm HAL-20 thermobaric air-drop shell
120 mm air-dropped thermobaric shell with 4000 g HAL-20 fill and special impact fuze, released from a minimum height of 50 m.
- Fuze
- UT M18, special impact fuze
- Length with fuze
- 675 mm
- Mass with fuze
- 13000 g
HAL-20
120 mm HAL-20 thermobaric mortar bomb
120 mm mortar-launched thermobaric bomb with 4000 g HAL-20 fill, reaching 6400 m at 320 m/s with six increment charges.
- Maximum range
- 6400 m (0+6) at +55 deg C (120 mm mortar M75, barrel length 1500 mm)
- Muzzle velocity
- 320 m/s (0+6) at +55 deg C, barrel length 1500 mm
- Fuze
- UT M88 P2, impact
Mk12-TB
120 mm Mk12-TB thermobaric mortar bomb
120 mm thermobaric mortar bomb with 3100 g charge and superquick impact fuze, reaching 8000 m from a 1500 mm barrel.
- Maximum range
- up to 8000 m (120 mm mortar, barrel length 1500 mm)
- Fuze
- UT M88 P2, impact superquick action
- Length with fuze
- 807 mm
Mk12L-TB
120 mm Mk12L-TB thermobaric mortar bomb
120 mm thermobaric mortar bomb with 3100 g charge for long-barrel mortars, reaching 9400 m from a 1900 mm barrel.
- Maximum range
- 9400 m (120 mm mortar, barrel length 1900 mm)
- Fuze
- UT M88 P2, impact superquick action
- Length with fuze
- 807 mm
Mk12LPX-TB
120 mm Mk12LPX-TB thermobaric mortar bomb
120 mm thermobaric mortar bomb with proximity fuze for long-barrel mortars, reaching 9400 m from a 1900 mm barrel.
- Maximum range
- 9400 m (120 mm mortar, barrel length 1900 mm)
- Fuze
- MBU M18, proximity fuze with superquick
- Length with fuze
- 835 mm
Mk12PX-TB
120 mm Mk12PX-TB thermobaric mortar bomb
120 mm thermobaric mortar bomb with proximity fuze and superquick back-up, reaching 8000 m from a 1500 mm barrel.
- Maximum range
- 8000 m (120 mm mortar, barrel length 1500 mm)
- Fuze
- MBU M18, proximity fuze with superquick
- Length with fuze
- 835 mm
TB
120 mm TB thermobaric air-drop shell
120 mm air-dropped shell for UAV release, filled with 2525 g insensitive PBX thermobaric explosive and plastic fins.
- Fuze
- UT M18, special impact fuze
- Length with fuze
- 610 mm
- Mass with fuze
- 12650 g
TB
120 mm TB thermobaric mortar bomb
120 mm mortar bomb filled with 2525 g insensitive PBX thermobaric explosive, ranging 255 m to 6500 m.
- Maximum range
- 6500 m (0+6) (120 mm mortar M75, barrel length 1500 mm)
- Fuze
- UT M88 P2, impact
- Length with fuze
- 606 mm
Practice mortar bombs
The practice group holds a single line item, the 60 mm M62. The source describes it as a short-range practice round made up of a shell-launcher of 202 mm and 1080 g and a separate projectile of 193 mm and 235 g. Published ranges are 50 m minimum and 280 m maximum, quoted for the 60 mm mortar M57 with a 720 mm barrel and the Commando M70 with a 650 mm barrel. Packaging is one shell per carton, twelve cartons per wooden box of 18 kg.
M62
60 mm M62 practice mortar bomb
60 mm short-range practice round consisting of a shell-launcher and a 235 g projectile, ranging 50 m to 280 m.
- Maximum range
- 280 m (60 mm mortar M57, barrel length 720 mm; Commando M70, barrel length 650 mm)
- Length of shell-launcher
- 202 mm
- Projectile length
- 193 mm
