M18

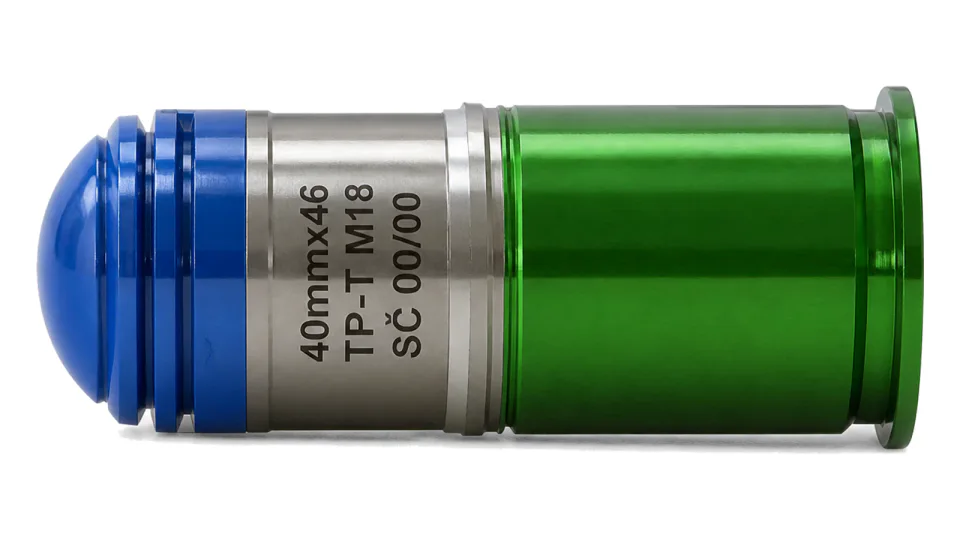

40x46 mm TP-T M18 practice-marking round with tracer
A training-practice round with tracer and orange marking powder that breaks on hitting the target or the ground to mark the hit location, used for training and determining firing procedures with 40x46 mm grenade launchers.
Also written: 40x46
Enlarge 40x46 mm TP-T M18 practice-marking round with tracer
Specification
| Calibre (mm) | 40 |
|---|---|
| Round mass (g) | 235 |
| Grenade mass (g) | 185 |
| Round length (mm) | 103 |
| Muzzle velocity (m/s) | 78 |
| Tracer time (s) | 4 |
| Max range (m) | 400 |
All data provided for information purposes; final specification is defined per contract. Full technical data sheets are issued on request against a stated end-user.
