PG-7VN with PG-7N
40 mm PG-7VN HEAT Round
40 mm shoulder-launched shaped-charge round with 72.3 mm warhead penetrating 400 mm of armour, sighting range 500 m.
Also written: 40

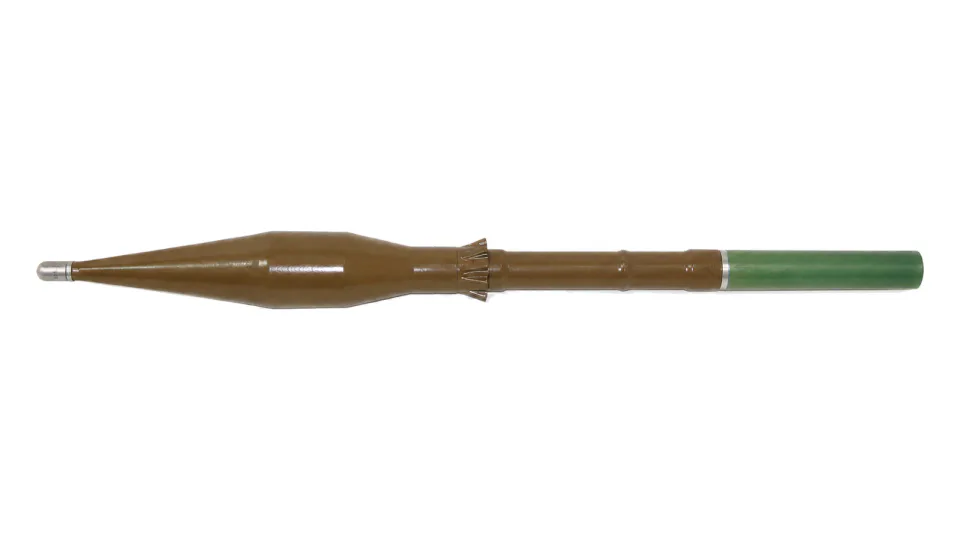

Enlarge 40 mm PG-7VN HEAT Round
Specification
| Grenade launcher calibre | 40 mm |
|---|---|
| Warhead calibre | 72.3 mm |
| Round weight | 1.945 kg |
| Grenade weight | 1.570 kg |
| Propellant charge weight | 0.375 kg |
| Muzzle velocity | 140 m/s |
| Direct fire range | 300 m |
| Sighting range | 500 m |
| Armour penetration | 400 mm |
| Rate of fire | 4 to 6 rds/min |
| Safe operational temperature range | -40 to +50 deg C |
| Packing | 6 rounds in a case of 851 x 432 x 273 mm, gross weight 28 kg |
All data provided for information purposes; final specification is defined per contract.
