M04
40 mm Smoke Underbarrel Grenade Round
40 mm smoke round for underbarrel launchers producing 30 s of white, red, green or yellow smoke at 50 to 400 m.
Also written: 40

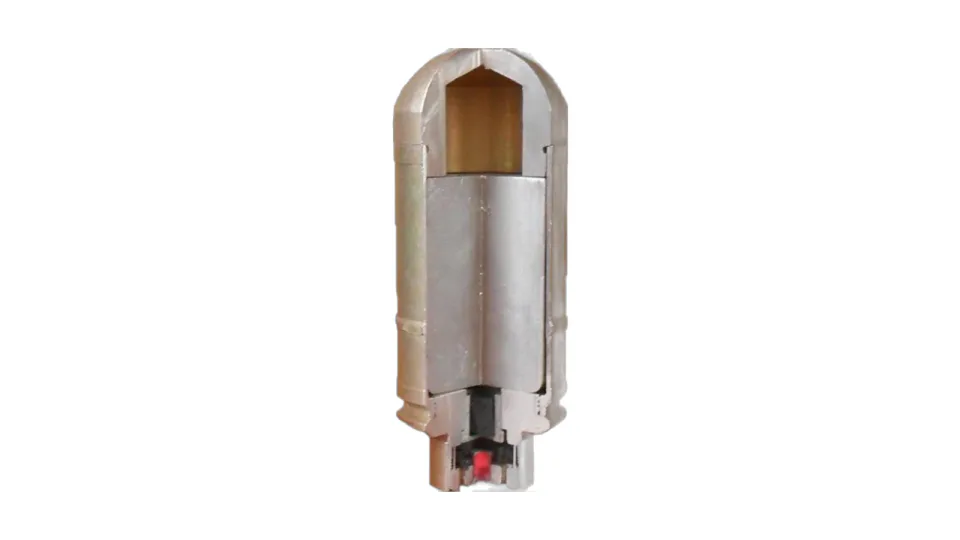

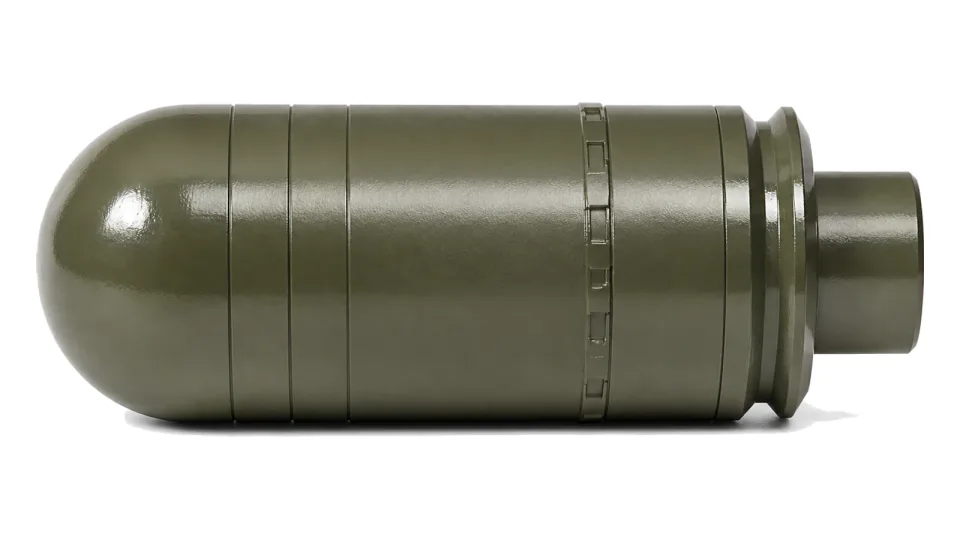

Show 40 mm Smoke Underbarrel Grenade Round, view 1 of 2Show 40 mm Smoke Underbarrel Grenade Round, sectioned
Enlarge 40 mm Smoke Underbarrel Grenade RoundEnlarge 40 mm Smoke Underbarrel Grenade Round, sectioned
Specification
| Calibre | 40 mm |
|---|---|
| Round mass | 232 g |
| Round length | 110 mm |
| Delay time | 3 to 6 s |
| Smoke time | 30 s |
| Muzzle velocity | 76 m/s |
| Firing range | 50 to 400 m |
| Smoke type | White, red, green, yellow |
| Operating temperature | -30 to +50 deg C |
| Weapon compatibility | Underbarrel grenade launchers 40 mm GP-25, GP-30 and BGP-40 |
All data provided for information purposes; final specification is defined per contract.
