M01
40x46 mm Sound and Flash Round, Impact Fuze
40x46 mm sound and flash round with impact fuze producing 120 dB, for anti-terrorist and riot control use from 50 to 400 m.
Also written: 40 mm LV, 40 mm NATO low velocity, 40 mm grenade, 40 x 46, 40X46, 40mm LV, 40x46

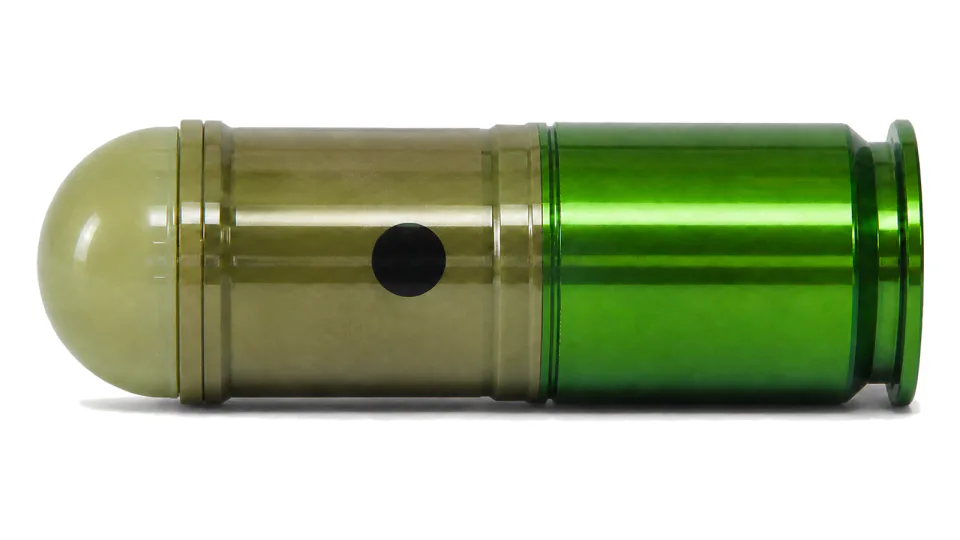

Enlarge 40x46 mm Sound and Flash Round, Impact Fuze
Specification
| Calibre | 40x46 mm |
|---|---|
| Round mass | 235 g |
| Grenade mass | 185 g |
| Round length | 111 mm |
| Sound intensity | 120 dB at 1 m |
| Fuze arming distance | 8 to 35 m |
| Muzzle velocity | 78 m/s |
| Firing range | 50 to 400 m |
| Operating temperature | -42 to +63 deg C |
| Weapon compatibility | M203, M79 and similar 40 mm low-velocity grenade launchers |
All data provided for information purposes; final specification is defined per contract.
