M02
40 mm HE bullet-trap rifle grenade M02

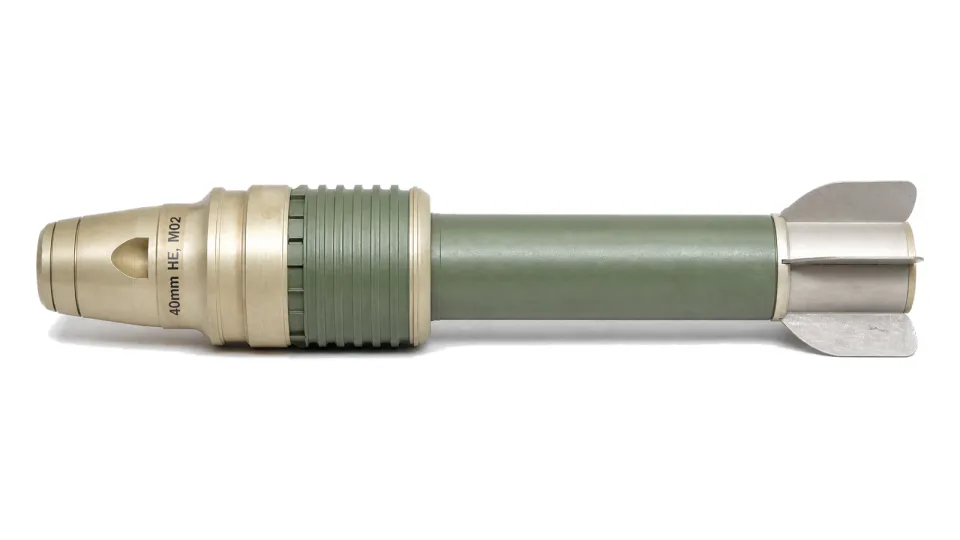

A 40 mm fragmentation rifle grenade with a bullet trap and an impact superquick fuze with 15 s self-destruction, weighing 450 g.
Also written: 40
Enlarge 40 mm HE bullet-trap rifle grenade M02
Specification
| Caliber | 40 mm |
|---|---|
| Type | fragmentation |
| Length | 270 mm |
| Mass | 450 g |
| Fuze | impact, superquick action, self destruction (UT - M00, SD) |
| Self destruction time | 15 s |
| Safety distance | min. 15 m in front of barrel |
| Arming distance | grenade must act upon cardboard 1 mm thick at a distance of 50 m |
| Grenade effect | min. 100 penetrations through a board 20 mm thick at D = 20 m and 1,5 m high; 200 penetrations through a board 20 mm thick at D = 10 m and 1,5 m high |
| Action on fragments in field | 100 m in diameter |
| Cartridges | 5,56x45 SS109; 7,62x51 |
| Muzzle velocity with 5.56x45 mm SS109 | 58 m/s |
| Range at 14° with 5.56x45 mm SS109 | 150 m |
| Maximum range at 45° with 5.56x45 mm SS109 | 350 m |
| Muzzle velocity with 7.62x51 mm | 72 m/s |
| Range at 14° with 7.62x51 mm | 300 m |
| Maximum range at 45° with 7.62x51 mm | 500 m |
| Accuracy | when firing at 14 degrees the shot pattern in field is Rmax - Rmin max 15 m; span in traverse max 3 m |
| Packing | 40 grenades per sheet metal box, 1 box with 40 grenades in a wooden case |
| Wooden case dimensions | 65 x 32 x 25 cm |
| Case gross mass | 30 kg |
| Case volume | 0,052 m3 |
All data provided for information purposes; final specification is defined per contract.
