OG-7VMZ with OG-7MZ
40 mm OG-7VMZ Fragmentation Round
40 mm shoulder-launched fragmentation round with 42 mm warhead producing over 1200 fragments, maximum range 1000 m.
Also written: 40

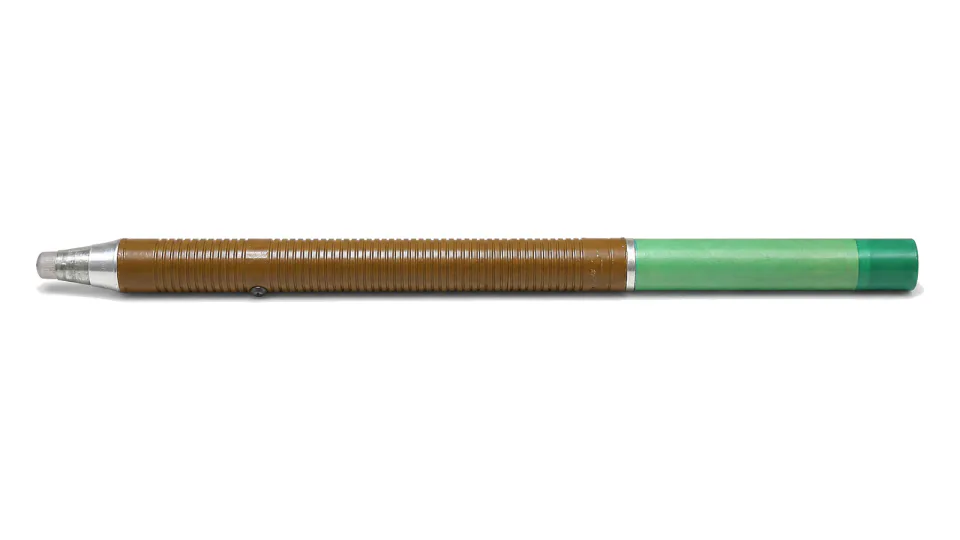

Enlarge 40 mm OG-7VMZ Fragmentation Round
Specification
| Grenade launcher calibre | 40 mm |
|---|---|
| Warhead calibre | 42 mm |
| Round weight | 1.755 kg |
| Grenade weight | 1.380 kg |
| Propellant charge weight | 0.375 kg |
| Number of fragments over 0.25 g | > 1200 |
| Muzzle velocity | 152 m/s |
| Direct fire range | 165 m |
| Maximum range | 1000 m |
| Rate of fire | 4 to 6 rds/min |
| Safe operational temperature range | -40 to +50 deg C |
| Packing | 18 rounds in a case of 900 x 478 x 267 mm, gross weight 54 kg |
All data provided for information purposes; final specification is defined per contract.
