M08
40 mm HEDP Bullet-Trap Rifle Grenade
40 mm bullet-trap high explosive dual purpose rifle grenade with 42 g charge and 10 m lethal radius.
Also written: 40

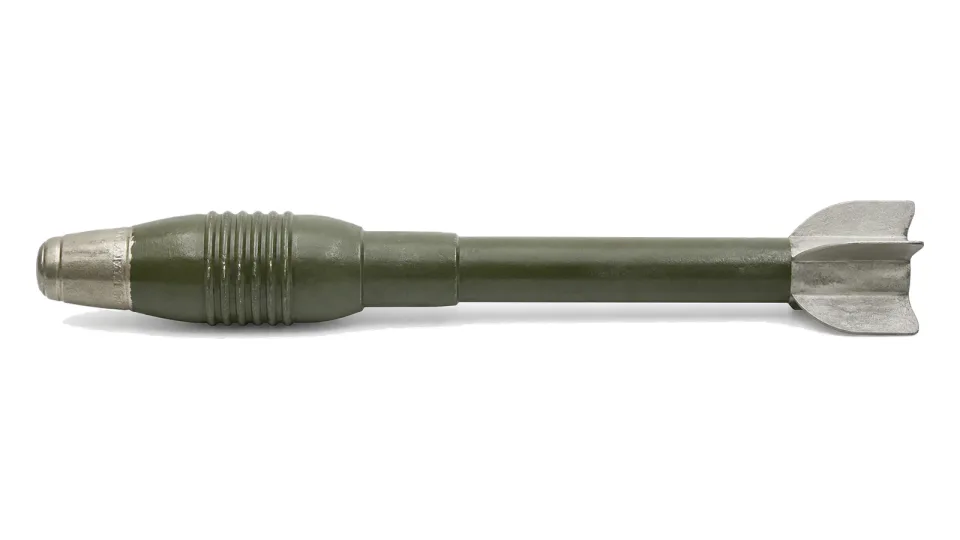

Enlarge 40 mm HEDP Bullet-Trap Rifle Grenade
Specification
| Calibre | 40 mm |
|---|---|
| Grenade mass | 405 g |
| Explosive mass | 42 g |
| Length | 263 mm |
| Muzzle velocity with 5.56x45 mm SS 109 | 58 m/s |
| Muzzle velocity with 7.62x51 mm | 72 m/s |
| Max range with 5.56x45 mm SS 109 | 300 m |
| Max range with 7.62x51 mm | 400 m |
| Fuze arming distance | 6 to 30 m |
| Lethal radius | 10 m |
| Operating temperature | -30 to +50 deg C |
| Weapon compatibility | 7.62 mm semi-automatic and automatic rifles and 5.56 mm automatic rifles with grenade attachment |
All data provided for information purposes; final specification is defined per contract.
