M04

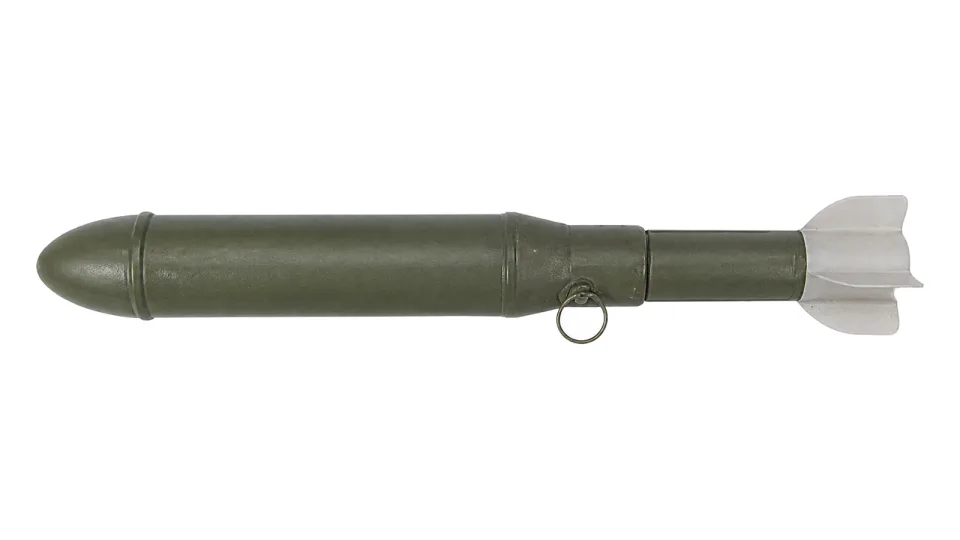

40 mm Smoke Bullet-Trap Rifle Grenade
40 mm bullet-trap smoke rifle grenade emitting for 80 s after a delay of 7.5 s.
Also written: 40
Enlarge 40 mm Smoke Bullet-Trap Rifle Grenade
Specification
| Calibre | 40 mm |
|---|---|
| Grenade mass | 580 g |
| Length | 370 mm |
| Muzzle velocity with 5.56x45 mm SS 109 | 56 m/s |
| Muzzle velocity with 7.62x51 mm | 68 m/s |
| Max range with 5.56x45 mm SS 109 | 250 m |
| Max range with 7.62x51 mm | 380 m |
| Delay time | 7.5 s |
| Smoke time | 80 s |
| Operating temperature | -30 to +50 deg C |
| Packing | 39 grenades in a tin box, box in a wooden case, 12 cases on a pallet |
All data provided for information purposes; final specification is defined per contract.
