M62
40 mm Illuminating Rifle Grenade M62
40 mm parachute illuminating rifle grenade of 400 g burning 25 s at 80000 cd, parachute opening at 250 m when fired at 45 degrees.
Also written: 40

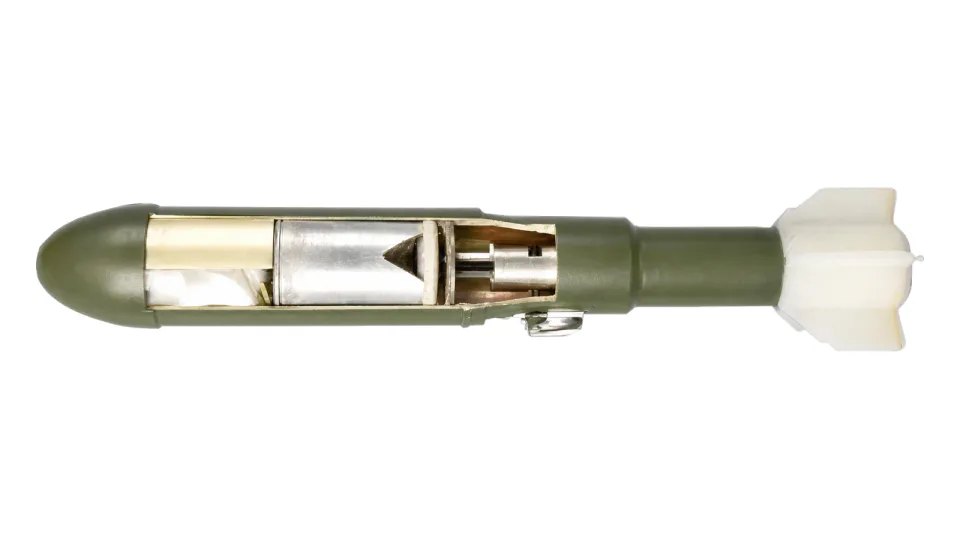

Enlarge 40 mm Illuminating Rifle Grenade M62
Specification
| Calibre | 40 mm |
|---|---|
| Grenade mass | 400 g |
| Length | 330 mm |
| Range of parachute opening at firing under 45 deg | 250 m |
| Delay time | 4.3 to 5.1 s |
| Burning time of star | 25 s |
| Light intensity of star | 80000 cd |
| Operating temperature | -30 to +50 deg C |
| Weapon compatibility | 7.62 mm semi-automatic and automatic rifles and 5.56 mm automatic rifles with grenade attachment |
| Packing | 40 grenades in a tin box, box in a wooden case, 12 cases on a pallet |
All data provided for information purposes; final specification is defined per contract.
