MN-01 / MN-01-T
38 mm colour and white smoke cartridge
38 mm signalling and screening smoke cartridge in coloured or white fill, also available as a three-part dispersing version.
Also written: 1.5 inch, 37/38 mm, 38

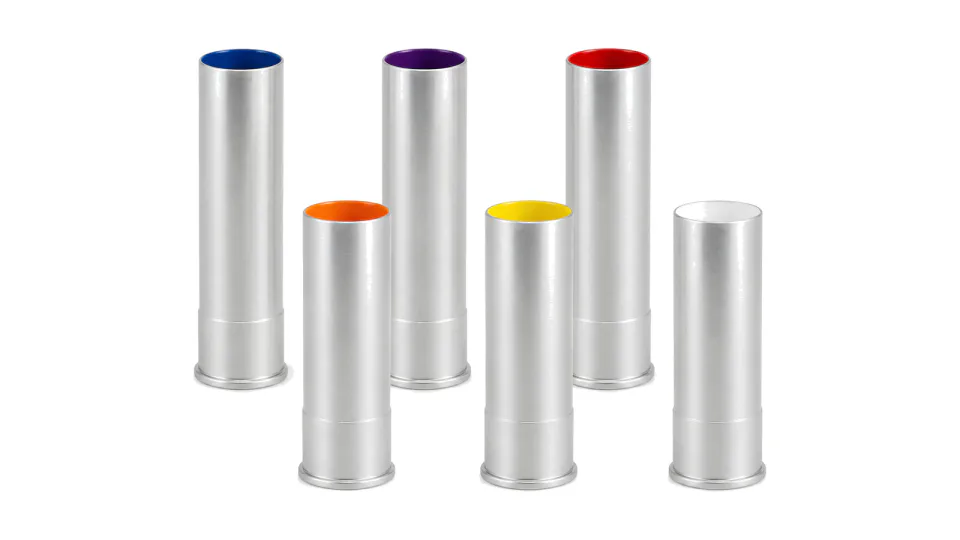

Enlarge 38 mm colour and white smoke cartridge
Specification
| Diameter | 38 mm |
|---|---|
| Height | 122 mm |
| Weight | 150 g (MN-01 colour); 218 +/- 8 g (MN-01-T three part); 235 +/- 20 g (MN-01 white) |
| Weight of smoke mixture | 100 +/- 10 g (colour); 135 +/- 15 g (white) |
| Smoke colours | Yellow, green, blue, orange, red; white (hexachlorethane) |
| Smoke emission time | 15-35 s |
| Delay time | 2-3 s |
| Launch | 38 mm weapon |
| Dispersion, three part version | 15-30 m between projectiles |
| Shelf life | 5 years |
| Packaging | 40 units per waterproof carton box 100 x 440 x 270 mm, 8/11/13 kg gross |
| Classification | UN 0197 colour smoke, UN 0303 white smoke, Class 1.4 G |
All data provided for information purposes; final specification is defined per contract.
