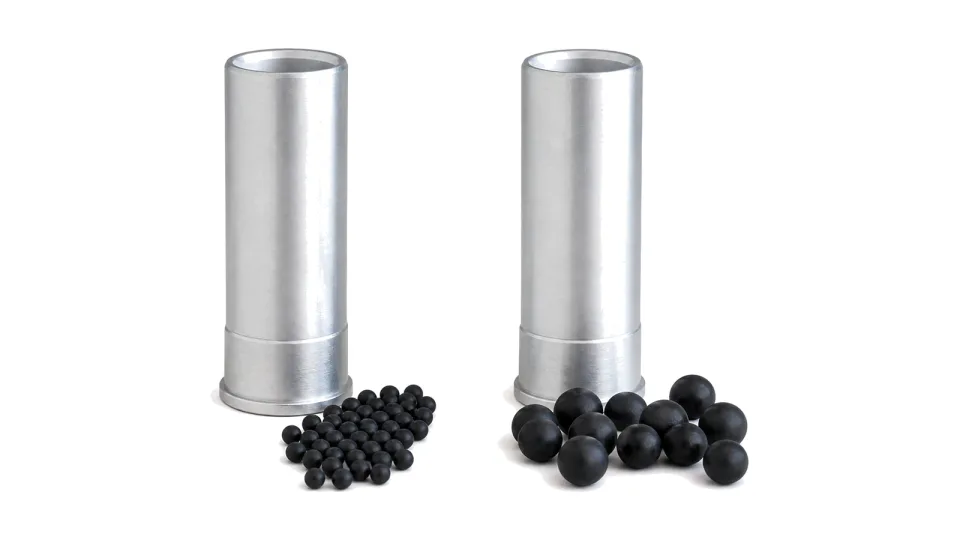

MN-24 GK
38 mm rubber ball cartridge
38 mm cartridge dispersing 24 rubber balls for area shock effect against aggressive individuals at short range.
Also written: 1.5 inch, 37/38 mm, 38
Enlarge 38 mm rubber ball cartridge
Specification
| Diameter | 38 mm |
|---|---|
| Height | 122 mm |
| Weight | 125 +/- 5 g |
| Weight of ejecting charge | 3 g |
| Payload | 24 rubber balls of 75 +/- 5 Sh hardness; 8 mm ball variant available |
| Launch | 38 mm weapon |
| Range | min. 20 m |
| Dispersion | 5 m diameter pattern at minimum 20 m |
| Shelf life | 5 years |
| Packaging | 40 units per waterproof carton box 100 x 440 x 270 mm, 6 kg gross |
| Classification | UN 0339, Class 1.4 C |
All data provided for information purposes; final specification is defined per contract.
