20 mm x 110 TP
20x110 mm TP round for subcalibre training barrels M78 and M79
A 20 mm x 110 training round for the 20 mm subcalibre training barrels M78 and M79 fitted to larger weapons, whose projectile is loaded with flash composition and fitted with a point-detonating fuze with mechanical self-destruction.
Also written: 20x110

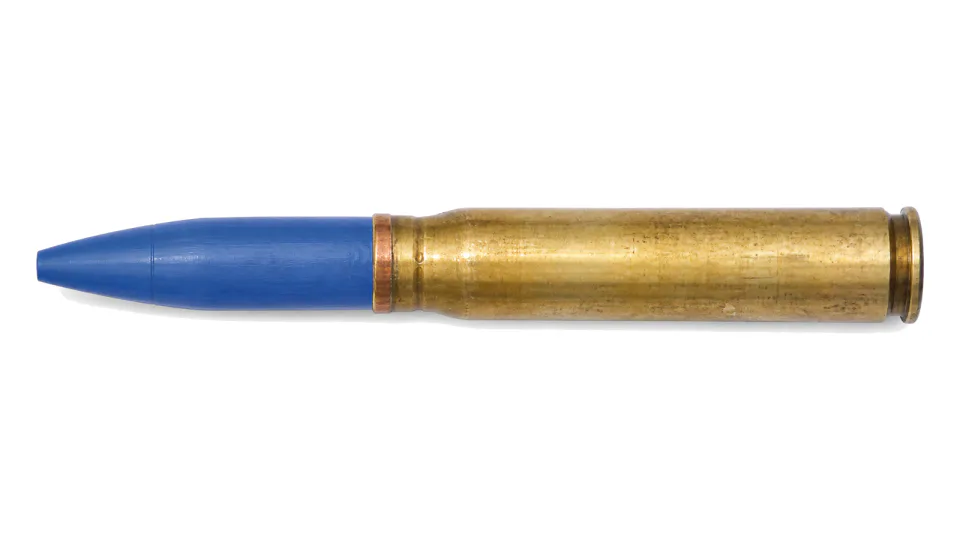

Enlarge 20x110 mm TP round for subcalibre training barrels M78 and M79
Specification
| Calibre | 20 mm |
|---|---|
| Muzzle velocity | 850±10 m/s |
| Maximum pressure of powder gases | 303 MPa |
| Fuze arming distance | 150 m |
| Fuze self-destruction time | min 12 s |
| Round mass | 257 g |
| Projectile mass | 127±2 g |
| Operating temperature | -30 to +50 °C |
All data provided for information purposes; final specification is defined per contract.
