40 mm x 365 AP
40x365 mm AP round for 40 mm L/70 anti-aircraft gun
A 40 mm x 365 round consisting of a brass cartridge case with a percussion gun primer, propellant charge and an armour-piercing projectile.
Also written: 40x365

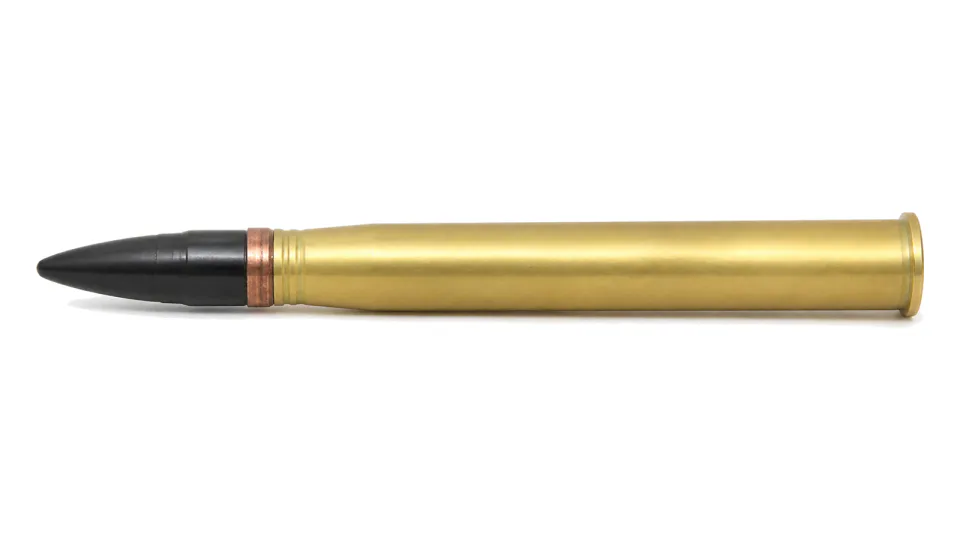

Enlarge 40x365 mm AP round for 40 mm L/70 anti-aircraft gun
Specification
| Calibre | 40 mm |
|---|---|
| Muzzle velocity | 1025 ± 12 m/s |
| Maximum pressure of powder gases | 319 MPa |
| Round mass | 2500 g |
| Projectile mass | 935 ± 15 g |
| Operating temperature | -30 to +50 °C |
All data provided for information purposes; final specification is defined per contract.
