40 mm x 365 AHEAD
40x365 mm AHEAD anti-drone round
An anti-drone round for the 40 mm L/70 gun consisting of a brass cartridge case with percussion gun primer, propellant charge and an AHEAD projectile filled with steel rollers released by a small ejection charge, fitted with a point-detonating remote-settable electronic time fuze with electronic self-destruction.
Also written: 40x365

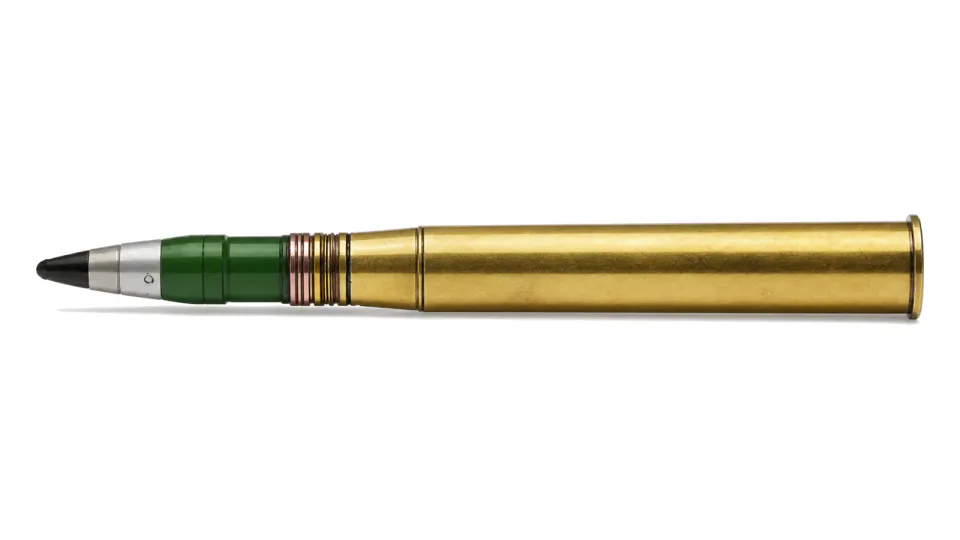

Enlarge 40x365 mm AHEAD anti-drone round
Specification
| Calibre | 40 mm |
|---|---|
| Cartridge | 40 mm x 365 |
| Muzzle velocity | 980±15 m/s |
| Maximum pressure of powder gases | 319 MPa |
| Round mass | max 2500 g |
| Projectile mass | 1025±15 g |
| Fuze self-destruction time | 13 s |
| Gun | 40 mm L/70 |
| Operating temperature | -30 ÷ +50 °C |
All data provided for information purposes; final specification is defined per contract.
