MN-03 / MN-05
38 mm rubber baton cartridge
38 mm kinetic cartridge firing a rubber flying-baton projectile, in one-part (MN-05) and three-part (MN-03) versions.
Also written: 1.5 inch, 37/38 mm, 38

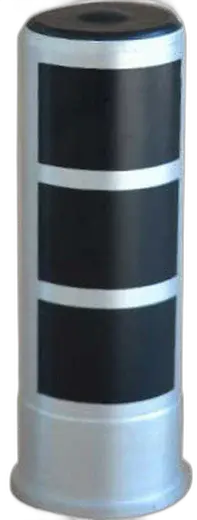

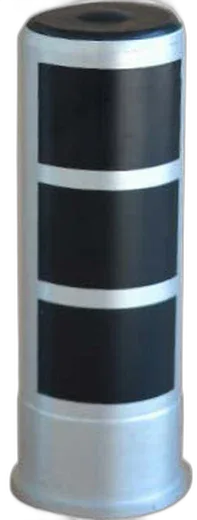

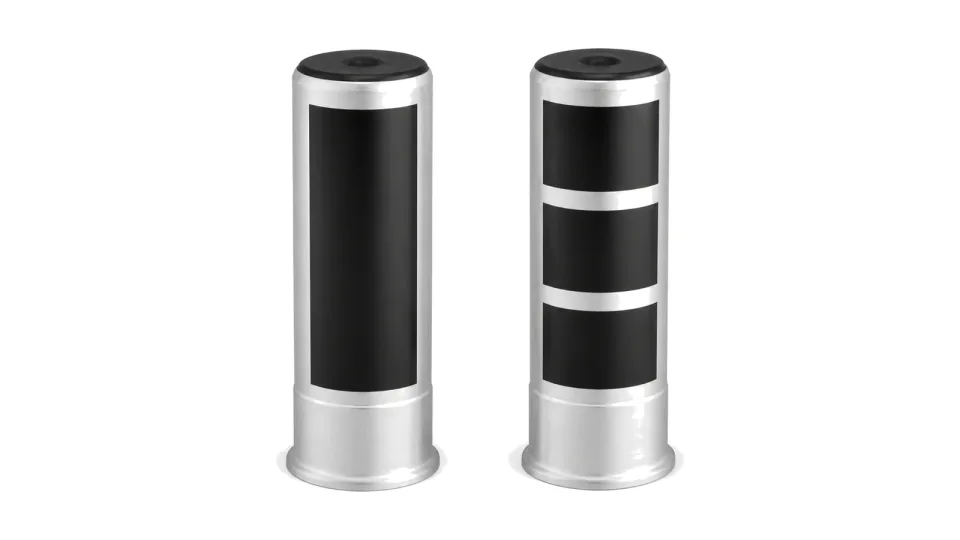

Show 38 mm rubber baton cartridge, view 1 of 2Show 38 mm rubber baton cartridge, three-part baton
Enlarge 38 mm rubber baton cartridgeEnlarge 38 mm rubber baton cartridge, three-part baton
Specification
| Diameter | 38 mm |
|---|---|
| Height | 122 mm |
| Weight | 170 +/- 5 g |
| Weight of ejecting charge | 3 g |
| Projectile | Rubber, 75 +/- 5 Sh hardness |
| Variants | One-part (MN-05), three-part (MN-03) |
| Launch | 38 mm weapon |
| Range | 80-120 m |
| Shelf life | 5 years |
| Packaging | 40 units per waterproof carton box 100 x 440 x 270 mm, 9 kg gross |
| Classification | UN 0339, Class 1.4 C |
All data provided for information purposes; final specification is defined per contract.
