30 mm x 165, AP-T
30x165 mm AP-T (autocannon loading)

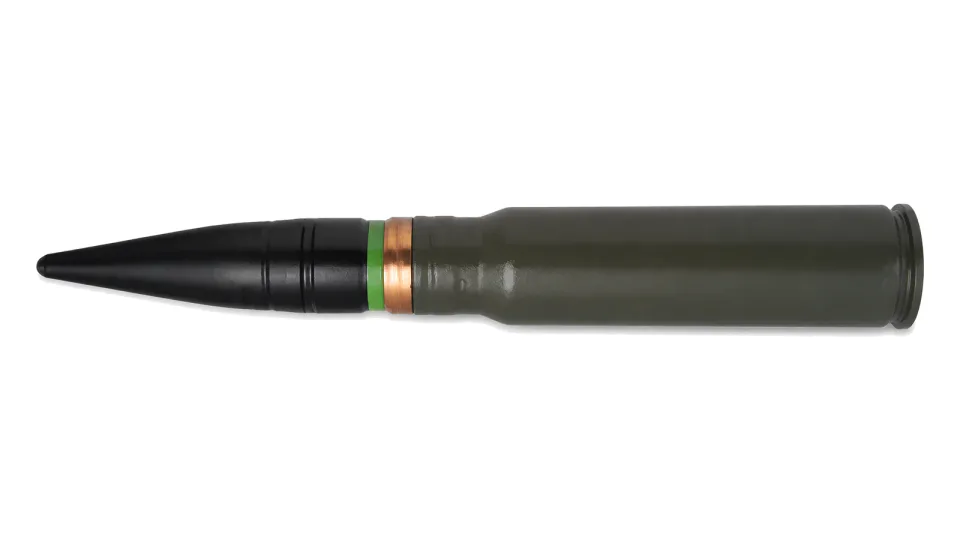

30x165 mm armour-piercing tracer round in the autocannon loading, 400 g projectile at 970 m/s with 3.5 s tracer.
Also written: 30 mm, 30 mm x 165, 30 x 165, 30X165, 30x165
Enlarge 30x165 mm AP-T (autocannon loading)
Specification
| Projectile type | AP-T (armour-piercing, tracer) |
|---|---|
| Round mass | 853 g |
| Projectile mass | 400 +/- 6 g |
| Propellant mass | 126 g |
| Round length | 290.83 to 292.25 mm |
| Muzzle velocity | 970 +/- 15 m/s |
| Mean max pressure (group of rounds) | 3600 bar |
| Tracer burning time | 3.5 s |
| Operating temperature | -40 to +50 deg C |
| Weapon compatibility | 30 mm antiaircraft guns 2A72, 2A42 and 2A38M |
| Packing | 15 rounds in a tin box, 2 boxes in a wooden case, 30 cases per pallet |
All data provided for information purposes; final specification is defined per contract.
