30 mm x 165, TP
30x165 mm TP round
A 30 mm x 165 target practice round for the 2A42, 2A72 and 2A38M antiaircraft guns, consisting of a steel cartridge case with percussion gun primer, propellant charge and a target practice projectile.
Also written: 30x165

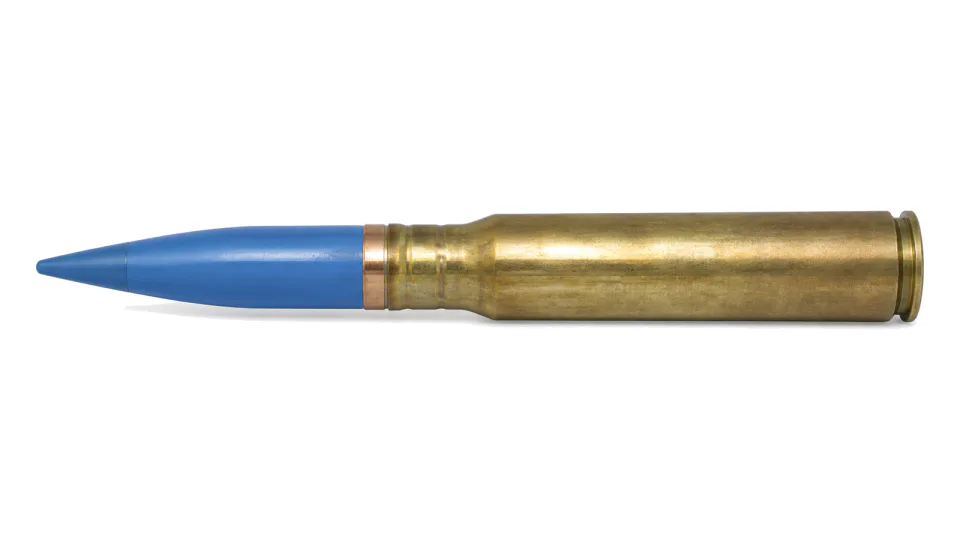

Enlarge 30x165 mm TP round
Specification
| Calibre | 30 mm |
|---|---|
| Muzzle velocity | 960 ± 15 m/s |
| Maximum pressure of powder gases | 360 MPa |
| Round mass | 833 g |
| Projectile mass | 389 ± 6 g |
| Operating temperature | -40 to +50 °C |
| Weapons | antiaircraft guns 2A42, 2A72 and 2A38M |
| Configuration | steel cartridge case with percussion gun primer, propellant charge and target practice projectile |
All data provided for information purposes; final specification is defined per contract.
