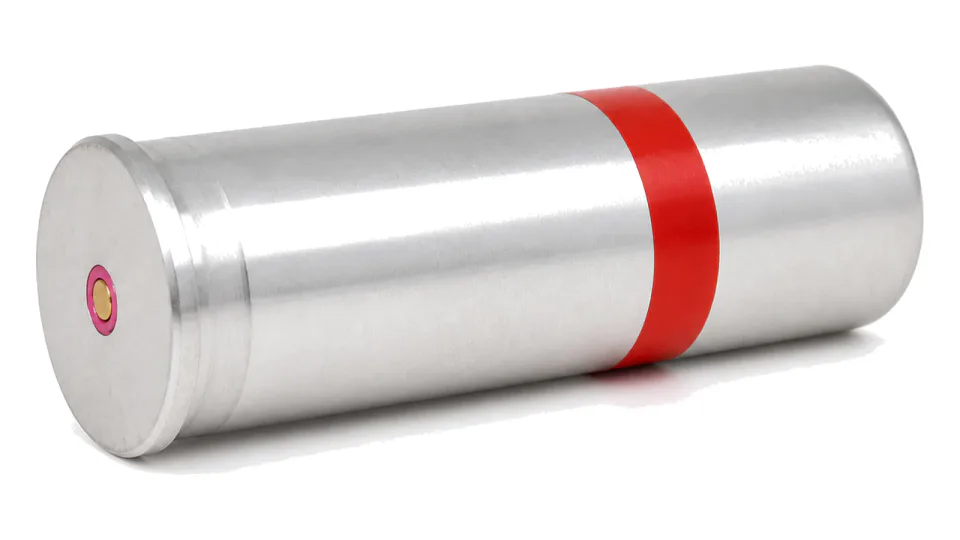

38 mm CS muzzle blast cartridge
Close-contact 38 mm cartridge that discharges a powdered CS cloud directly from the weapon muzzle.
Also written: 1.5 inch, 37/38 mm, 38
Specification
| Diameter | 38 mm |
|---|---|
| Height | 122 mm |
| Weight | 110 +/- 5 g |
| Active charge | CS-1 |
| Weight of active charge | 45 g |
| Launch | 38 mm weapon |
| Range | min. 10 m |
| Effect | Powdered CS cloud of 10 m diameter from the muzzle hole |
| Shelf life | 5 years |
| Packaging | 40 units per waterproof carton box 100 x 440 x 270 mm, 6 kg gross |
| Classification | UN 0301, Class 1.4 G |
All data provided for information purposes; final specification is defined per contract. Full technical data sheets are issued on request against a stated end-user.
