38 mm shock/flash cartridge
38 mm airburst distraction cartridge producing blast and flash above a crowd from a fragment-free carton shell.
Also written: 1.5 inch, 37/38 mm, 38

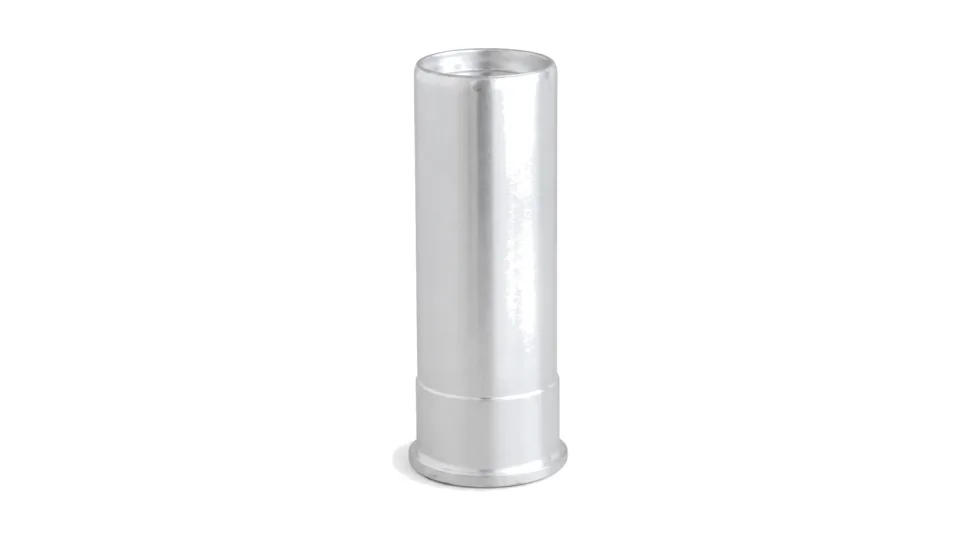

Enlarge 38 mm shock/flash cartridge
Specification
| Diameter | 38 mm |
|---|---|
| Height | 122 mm |
| Weight | 110 +/- 5 g |
| Weight of pyrotechnic mixture | 11 g |
| Weight of photo/flash mixture | 15 g |
| Delay time | 2-3 s |
| Launch | 38 mm weapon |
| Range | min. 90 m |
| Burst height | 90-100 m from the ground |
| Report | min. 120 dB |
| Shelf life | 5 years |
| Packaging | 40 units per waterproof carton box 100 x 440 x 270 mm, 9 kg gross |
| Classification | UN 0431, Class 1.4 G |
All data provided for information purposes; final specification is defined per contract.
