MN-01
38 mm CS irritant cartridge
Thermal-generating 38 mm irritant cartridge producing a dense CS smoke cloud on the target for crowd control in open and closed areas.
Also written: 1.5 inch, 37/38 mm, 38

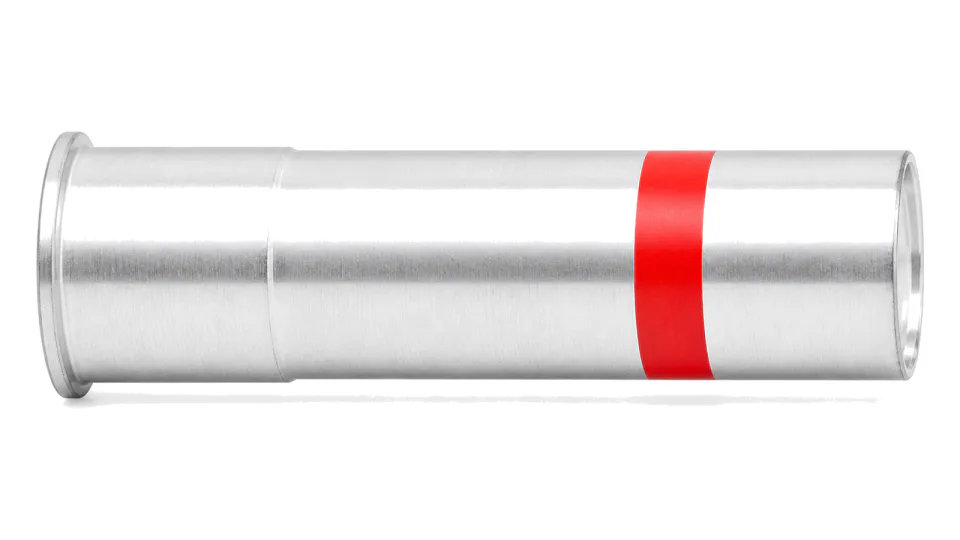

Enlarge 38 mm CS irritant cartridge
Specification
| Diameter | 38 mm |
|---|---|
| Height | 122 mm |
| Weight | 218 +/- 8 g |
| Weight of pyrotechnic mixture | 100 g |
| Active charge | CS |
| Weight of active charge | 40 g |
| Delay time | 2-3 s |
| Launch | 38 mm weapon |
| Range | min. 100 m; long range version min. 150 m |
| Smoke emission time | 25 +/- 5 s |
| Shelf life | 5 years |
| Packaging | 40 units per waterproof carton box 100 x 440 x 270 mm, 9.5 kg gross |
| Classification | UN 0301, Class 1.4 G |
All data provided for information purposes; final specification is defined per contract.
