23 mm x 115, HE-T/HEI-T

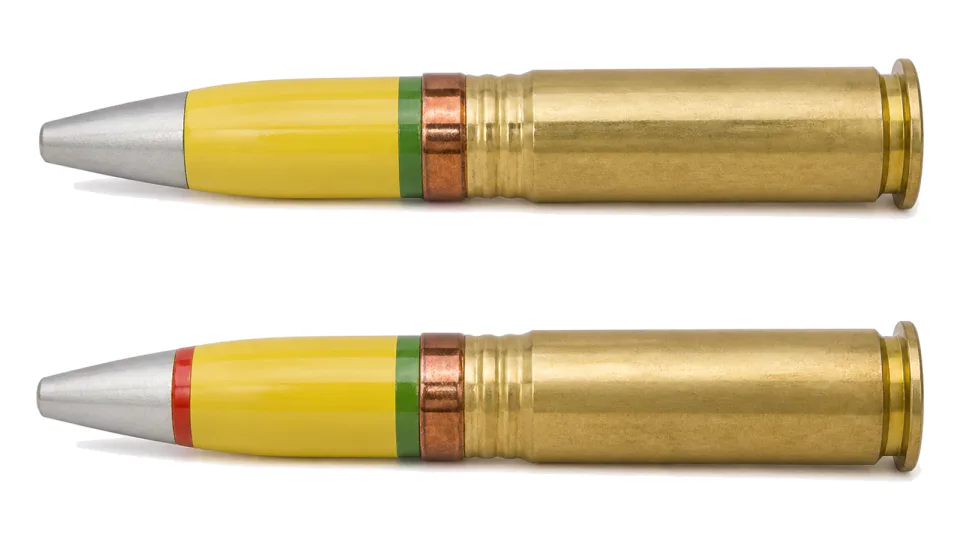

23x115 mm HE-T/HEI-T round
A 23 mm x 115 round for aircraft guns, made up of a brass cartridge case with a percussion gun primer, a propellant charge and a high-explosive tracer projectile with a point-detonating fuze; the HEI-T variant is loaded with explosive-incendiary and tracer composition.
Also written: 23x115
Enlarge 23x115 mm HE-T/HEI-T round
Specification
| Calibre | 23 mm |
|---|---|
| Weapon | 23 mm aircraft guns GSh-23L, GSh-23LU and GSh-6-23 |
| Muzzle velocity | 720±10 m/s |
| Maximum pressure of powder gases | 300 MPa |
| Fuze arming distance | 100 m |
| Tracer burning time | min 3.6 s |
| Round mass | 329±8 g |
| Projectile mass | 174±3.5 g |
| Operating temperature | -30 ÷ +50 °C |
All data provided for information purposes; final specification is defined per contract. Full technical data sheets are issued on request against a stated end-user.
