20 mm x 110RB, TP-T OERLIKON
20x110RB mm TP-T (Oerlikon)
20x110RB mm target-practice tracer round with a 122 g inert projectile, matched to service ballistics.
Also written: 20 mm, 20 mm Oerlikon, 20 mm x 110RB, 20 x 110RB, 20X110RB, 20x110 RB, 20x110RB

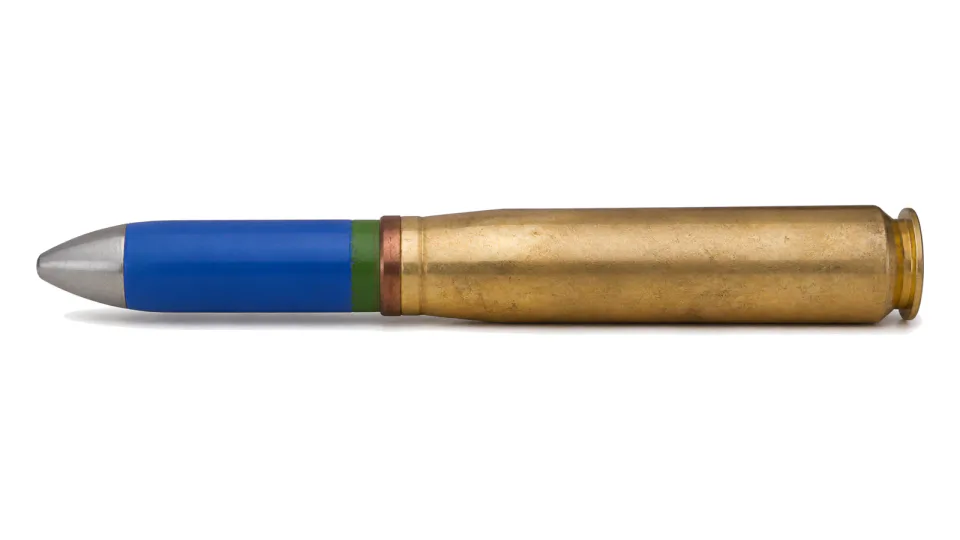

Enlarge 20x110RB mm TP-T (Oerlikon)
Specification
| Projectile type | TP-T (target practice, tracer) |
|---|---|
| Round mass | 246 +/- 6 g |
| Projectile mass | 122 g |
| Propellant mass | 29 g |
| Round length | 183.7 to 184.4 mm |
| Muzzle velocity | 845 +/- 10 m/s |
| Mean max pressure (group of rounds) | 3286 bar |
| Operating temperature | -30 to +50 deg C |
| Weapon compatibility | 20 mm antiaircraft gun MK-IV Oerlikon |
| Packing | 100 rounds in a tin box, box in a nailed case with tow handle, 30 cases per pallet |
All data provided for information purposes; final specification is defined per contract.
