MN-01/P

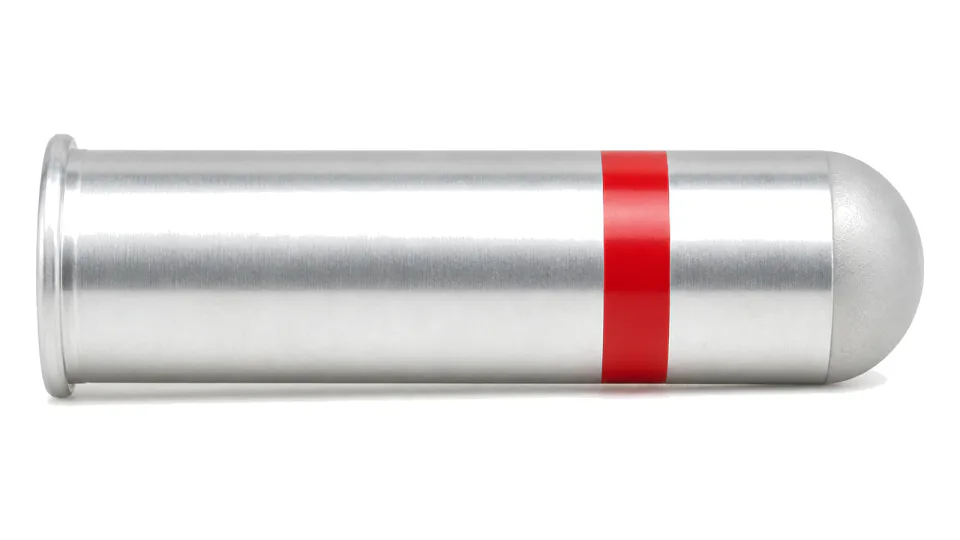

38 mm CS barricade-penetrating cartridge
38 mm CS cartridge with a plastic penetrating head that breaks a barricade before the irritant charge is released behind it.
Also written: 1.5 inch, 37/38 mm, 38
Enlarge 38 mm CS barricade-penetrating cartridge
Specification
| Diameter | 38 mm |
|---|---|
| Height | 130 +/- 2 mm |
| Weight | 145 g |
| Weight of pyrotechnic mixture | 45 g |
| Active charge | CS |
| Weight of active charge | 35 g |
| Delay time | 2-3 s |
| Launch | 38 mm weapon |
| Range | min. 150 m |
| Range for breaking barricade | min. 50 m |
| Smoke emission time | min. 20 s |
| Shelf life | 5 years |
| Packaging | 40 units per waterproof carton box 100 x 440 x 270 mm, 8 kg gross |
| Classification | UN 0301, Class 1.4 G |
All data provided for information purposes; final specification is defined per contract.
