40 mm x 365 PFHE
40x365 mm PFHE anti-drone round
An anti-drone round for the 40 mm L/70 gun, made up of a brass cartridge case with percussion gun primer, propellant charge and a pre-fragmented high explosive projectile lined with tungsten balls, fitted with a point-detonating remote-settable electronic time fuze with electronic self-destruction.
Also written: 40x365

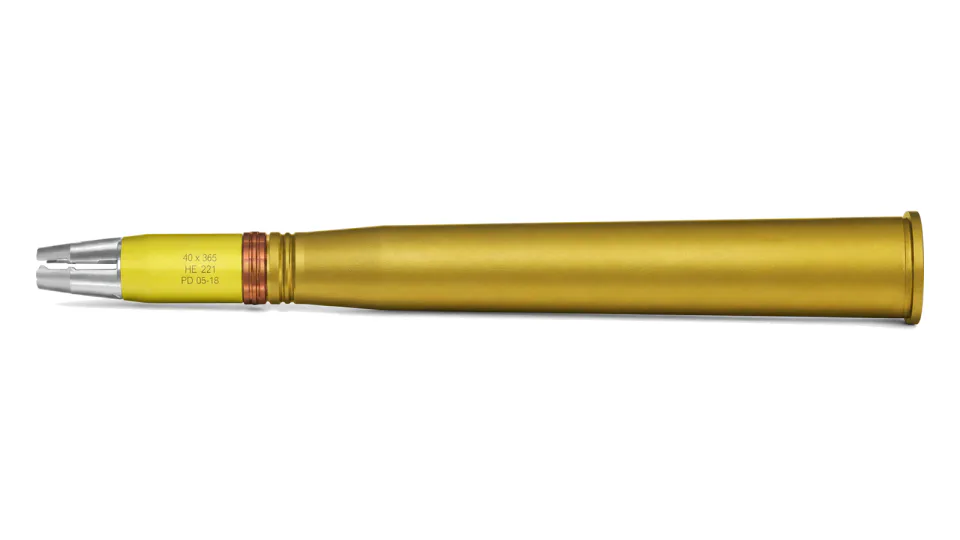

Enlarge 40x365 mm PFHE anti-drone round
Specification
| Calibre | 40 mm |
|---|---|
| Cartridge | 40 mm x 365 |
| Muzzle velocity | 1025±12 m/s |
| Maximum pressure of powder gases | 319 MPa |
| Round mass | max 2500 g |
| Projectile mass | 880±13 g |
| Fuze self-destruction time | 13 s |
| Gun | 40 mm L/70 |
| Operating temperature | -30 ÷ +50 °C |
All data provided for information purposes; final specification is defined per contract.
