M62P8
120 mm M62P8 HE mortar bomb
120 mm high-explosive mortar bomb with 2.4 kg TNT fill and superquick-delay fuze, reaching 6555 m with 20 m killing radius.
Also written: 120

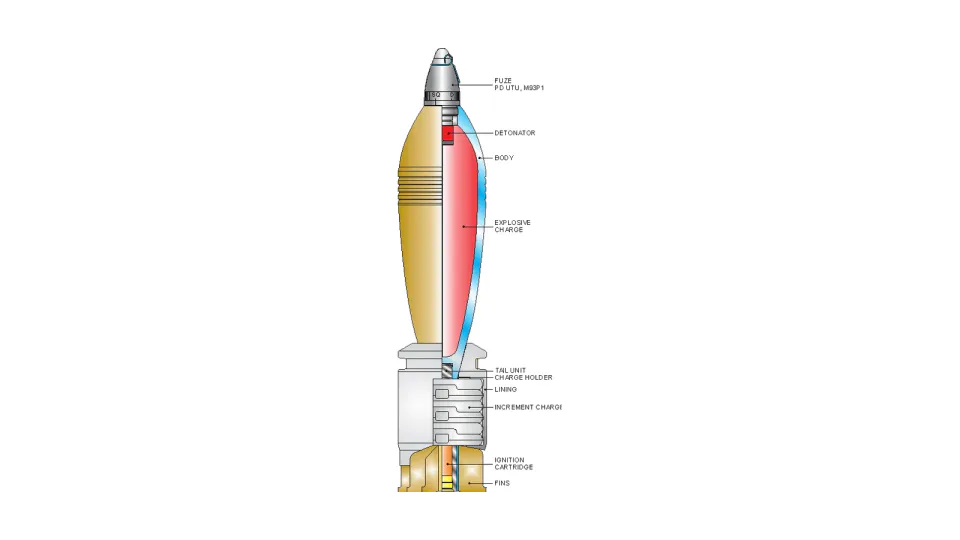

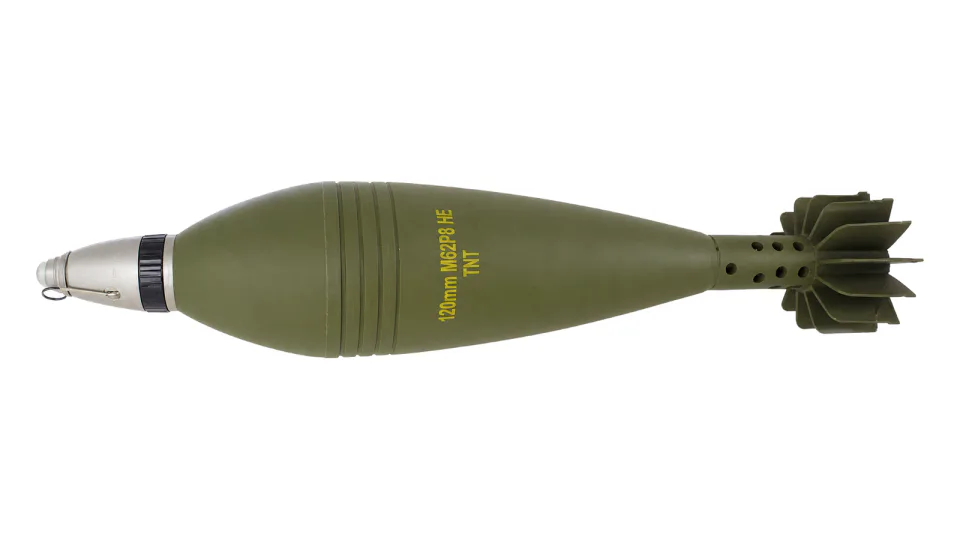

Show 120 mm M62P8 HE mortar bomb, view 1 of 2Show 120 mm M62P8 HE mortar bomb, sectioned
Enlarge 120 mm M62P8 HE mortar bombEnlarge 120 mm M62P8 HE mortar bomb, sectioned
Specification
| Length with fuze | 606 mm |
|---|---|
| Mass with fuze | 12.6 kg |
| Explosive charge | TNT |
| Mass of explosive charge | 2.4 kg |
| Fuze | UTU M93P1, point detonating with delay |
| Muzzle safety when firing with ignition cartridge | 50 m |
| Service life (complete round, fuze, increment charge, body) | 15 years |
| Maximum range | 6555 m (120 mm mortar M75, barrel length 1500 mm) |
| Max. mean operating pressure | max. 922 bars |
| Killing range (1 penetration/m2) radius | 20 m |
| Operating temperature range | -30 deg C to +50 deg C |
All data provided for information purposes; final specification is defined per contract.
