Mk11P1
81/82 mm Mk11P1 HE mortar bomb
Extended-range 81/82 mm high-explosive mortar bomb with 850 g hexolite fill and UTU M93N fuze, reaching 6500 m.
Also written: 81 mm, 81/82, 82 mm

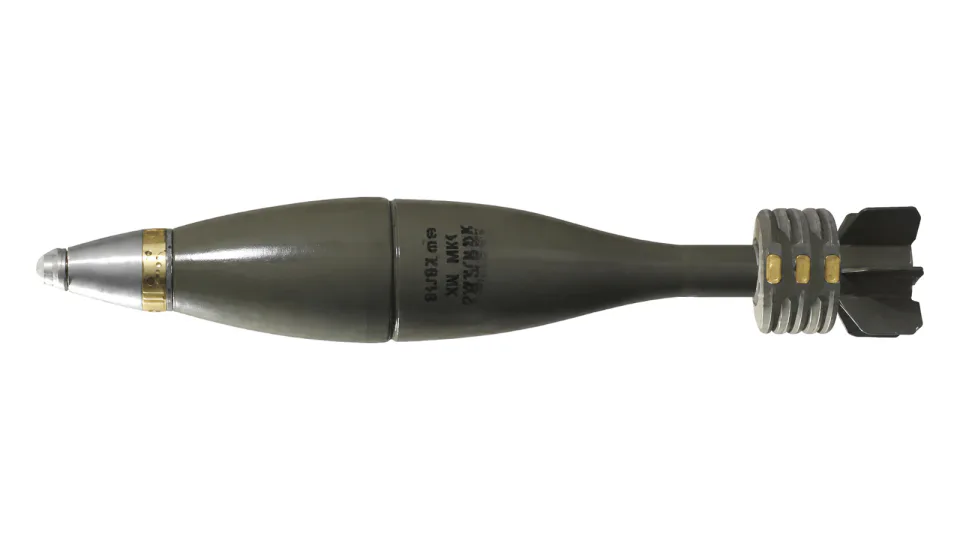

Enlarge 81/82 mm Mk11P1 HE mortar bomb
Specification
| Length with fuze | 480 mm |
|---|---|
| Mass with fuze | 4100 g |
| Explosive charge | Hexolite (RDX/TNT) |
| Mass of explosive charge | 850 g |
| Fuze | UTU M93N, impact |
| Muzzle safety at lowest initial velocity | 50 m |
| Increment charges | Ignition cartridge and six increment charges (0+6) |
| Ignition cartridge | M11, waterproof |
| Maximum range | 6500 m (0+6) (81/82 mm mortar M69 B-D, barrel length 1450 mm) |
| Minimum range | 100 m (0) |
| Max. mean operating pressure | 647 bars |
| Killing range (1 penetration/m2) radius | 18 m |
| Operating temperature range | -46 deg C to +63 deg C |
| Packaging | 1 shell per carton, 5 cartons per wooden box 58 x 55 x 16 cm, 34 kg, 0.051 m3 |
All data provided for information purposes; final specification is defined per contract.
