M88P1
81/82 mm M88P1 HC smoke mortar bomb
81/82 mm screening smoke mortar bomb with 850 g HC composition smoking for at least 120 s, ranging 300 m to 3400 m.
Also written: 81 mm, 81/82, 82 mm

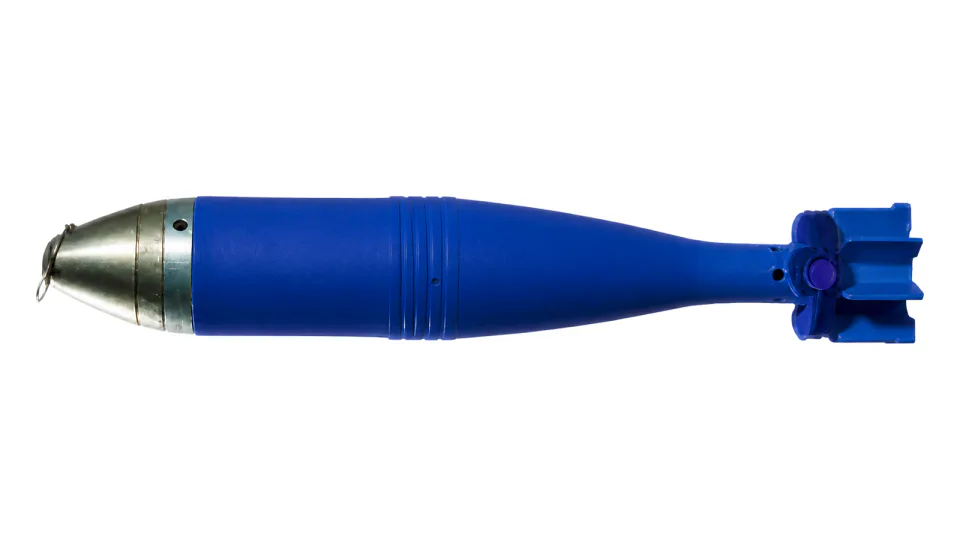

Enlarge 81/82 mm M88P1 HC smoke mortar bomb
Specification
| Length with fuze | 410 mm |
|---|---|
| Mass with fuze | 2950 g |
| Mass of HC composition | 850 g |
| Smoking time | min. 120 s |
| Average fall speed of smoke box | 20 m/s |
| Fuze | TP M67, pyrotechnical time fuze |
| Increment charges | Ignition cartridge and four increment charges (0+4) |
| Ignition cartridge | M06, waterproof |
| Maximum range | 3400 m (0+4) (81/82 mm mortar M69 B-D, barrel length 1150 mm) |
| Minimum range | 300 m (0) |
| Max. mean operating pressure | 422 bars |
| Operating temperature range | -30 deg C to +50 deg C |
| Packaging | 1 shell per carton, 5 cartons per wooden box 54 x 48 x 16 cm, 29 kg, 0.042 m3 |
All data provided for information purposes; final specification is defined per contract.
