M64P4

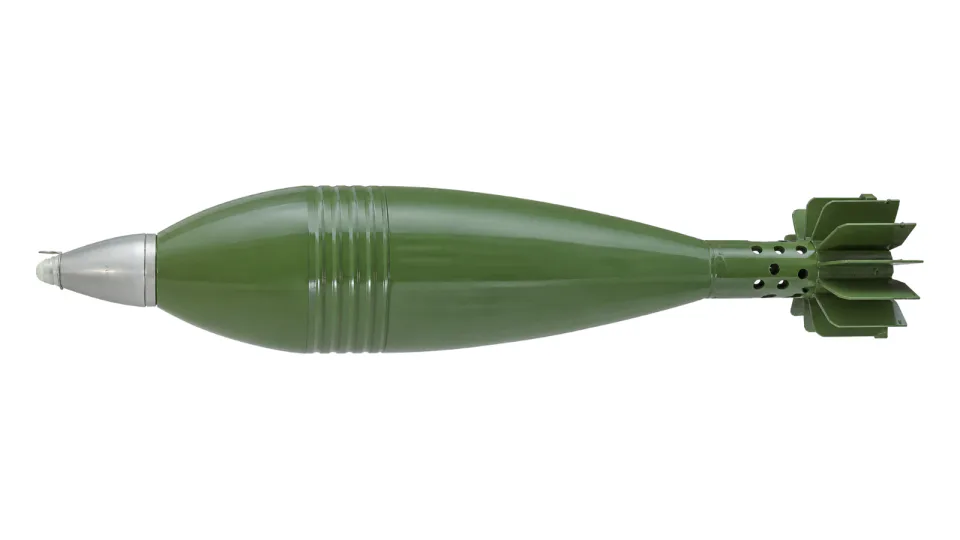

120 mm M64P4 white phosphorus smoke mortar bomb
120 mm white phosphorus smoke mortar bomb with 2350 g fill and UT M88 P1 superquick fuze, reaching 7000 m.
Also written: 120
Enlarge 120 mm M64P4 white phosphorus smoke mortar bomb
Specification
| Length with fuze | 626 mm |
|---|---|
| Mass with fuze | 12600 g |
| Weight of smoke charge | 2350 g |
| Type of smoke charge | White phosphorus |
| Fuze | UT M88 P1, impact superquick |
| Muzzle safety at lowest initial velocity | 70 m |
| Maximum range | 7000 m (120 mm mortar, barrel length 1500 mm) |
| Max. mean operating pressure | 104.9 MPa |
| Operating temperature range | -30 deg C to +50 deg C |
All data provided for information purposes; final specification is defined per contract.
