Mk10

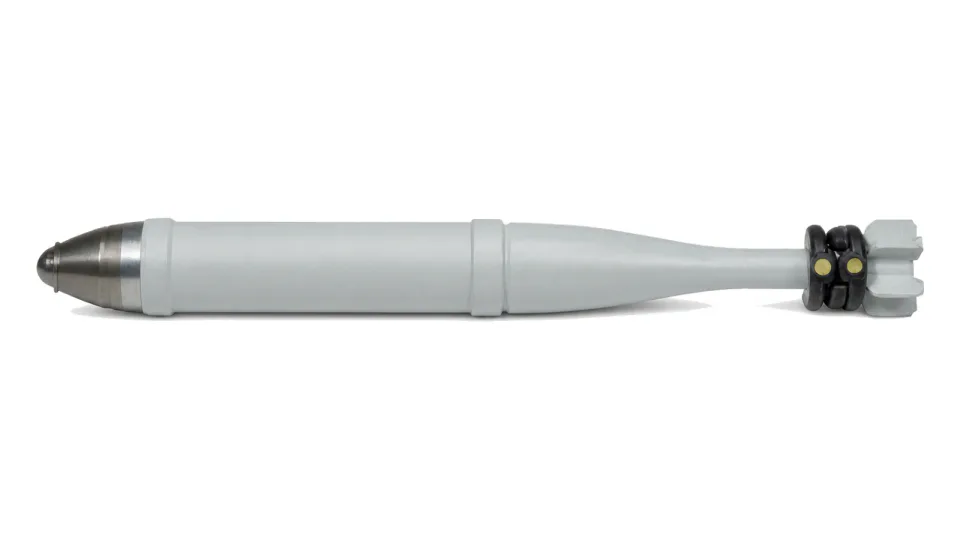

60 mm Mk10 illuminating mortar bomb
Long-range 60 mm parachute illuminating mortar bomb, 350000 Cd for 30 s to 4000 m, using the M10 ignition cartridge.
Also written: 60, 60 mm mortar
Enlarge 60 mm Mk10 illuminating mortar bomb
Specification
| Length with fuze | 495 mm |
|---|---|
| Mass with fuze | 2100 g |
| Mass of illuminating candle | 300 g |
| Fuze | TP M67, pyrotechnical time fuze |
| Illuminating power | 350000 Cd for 30 s |
| Increment charges | Ignition cartridge and six increment charges (0+6) |
| Ignition cartridge | M10, waterproof |
| Maximum range | 4000 m (60 mm mortar, barrel length 1300 mm) |
| Minimum range | 400 m (0) |
| Max. mean operating pressure | 647 bars |
| Operating temperature range | -30 deg C to +50 deg C |
| Packaging | 1 shell per carton, 12 cartons per wooden box 50 x 35 x 20 cm, 27 kg, 0.035 m3 |
All data provided for information purposes; final specification is defined per contract.
