M72 (UTU M93-N)

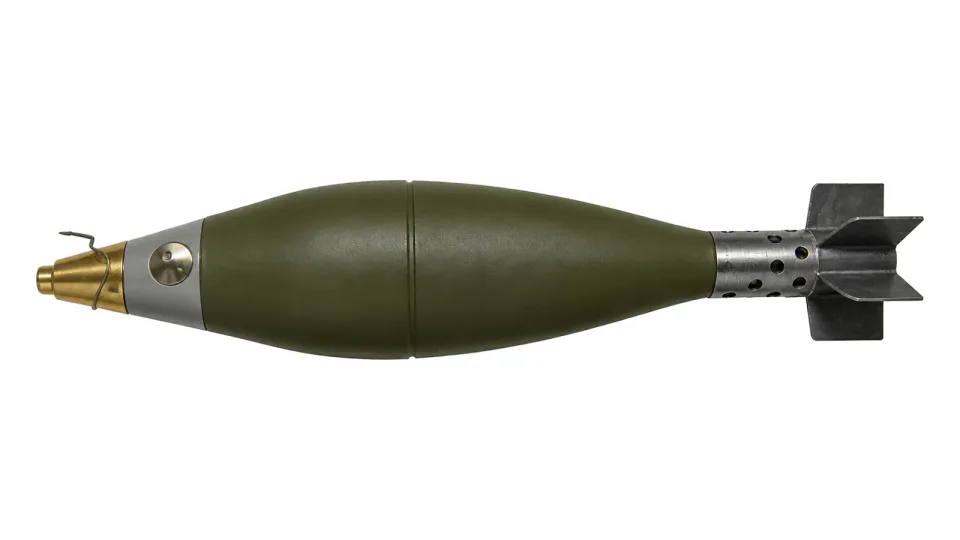

81 mm M72 HE mortar bomb, UTU M93-N fuzed
81 mm high-explosive mortar bomb with 0.650 kg TNT fill, fuzed UTU M93-N for 50 m muzzle safety, reaching 4900 m.
Also written: 81
Enlarge 81 mm M72 HE mortar bomb, UTU M93-N fuzed
Specification
| Length with fuze | 400 mm |
|---|---|
| Mass with fuze | 3.05 kg |
| Explosive charge | TNT |
| Mass of explosive charge | 0.650 kg |
| Fuze | UTU M93-N |
| Muzzle safety when firing with ignition cartridge | 50 m |
| Maximum range | 4900 m (barrel length 1150 mm) |
| Pressure in barrel | max. 618 bar |
| Killing range (1 penetration/m2) radius | 14 m |
| Operating temperature range | -30 deg C to +50 deg C |
All data provided for information purposes; final specification is defined per contract.
