M09

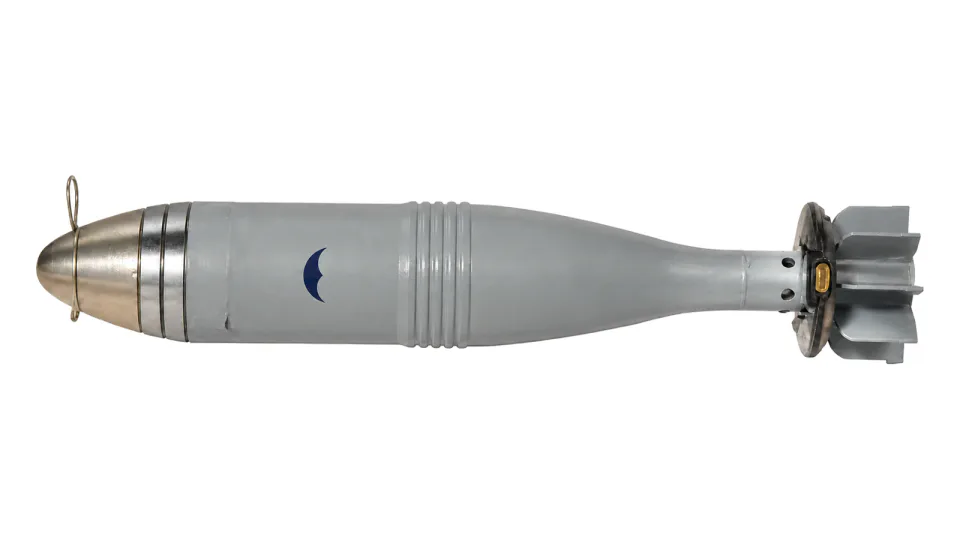

81/82 mm M09 illuminating mortar bomb
81/82 mm parachute illuminating mortar bomb with 400 g candle giving 500000 Cd for 40 s, ranging 250 m to 3650 m.
Also written: 81 mm, 81/82, 82 mm
Enlarge 81/82 mm M09 illuminating mortar bomb
Specification
| Length with fuze | 410 mm |
|---|---|
| Mass with fuze | 2950 g |
| Mass of illuminating candle | 400 g |
| Fuze | TP M67, pyrotechnical time fuze |
| Illuminating power | 500000 Cd for 40 s |
| Mean rate of parachute descent with candle | 2.5 m/s |
| Increment charges | Ignition cartridge and four increment charges (0+4) |
| Ignition cartridge | M09, waterproof |
| Maximum range | 3650 m (81/82 mm mortar M69 B-D, barrel length 1450 mm) |
| Minimum range | 250 m (0) |
| Max. mean operating pressure | 422 bars |
| Operating temperature range | -30 deg C to +50 deg C |
| Packaging | 1 shell per carton, 5 cartons per wooden box 54 x 48 x 16 cm, 29 kg, 0.042 m3 |
All data provided for information purposes; final specification is defined per contract.
