Mk10
60 mm Mk10 smoke mortar bomb
Long-range 60 mm smoke mortar bomb with 300 g smoke charge, fired with six increment charges to 5100 m.
Also written: 60, 60 mm mortar

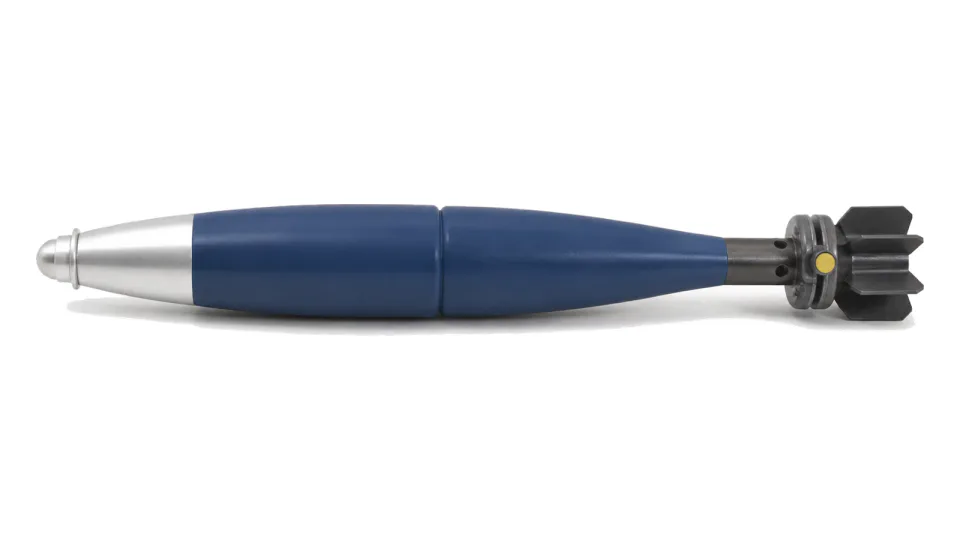

Enlarge 60 mm Mk10 smoke mortar bomb
Specification
| Length with fuze | 410 mm |
|---|---|
| Mass with fuze | 2100 g |
| Mass of smoke charge | 300 g |
| Fuze | UT M88 P1, impact |
| Fuze mass | 230 g |
| Muzzle safety at lowest initial velocity | 70 m |
| Increment charges | Ignition cartridge and six increment charges (0+6) |
| Ignition cartridge | M10, waterproof |
| Maximum range | 5100 m (60 mm mortar, barrel length 1300 mm) |
| Minimum range | 90 m |
| Max. mean operating pressure | 647 bars |
| Operating temperature range | -46 deg C to +63 deg C |
| Packaging | 1 shell per carton, 12 cartons per wooden box 50 x 35 x 20 cm, 28 kg, 0.035 m3 |
All data provided for information purposes; final specification is defined per contract.
