M64P3

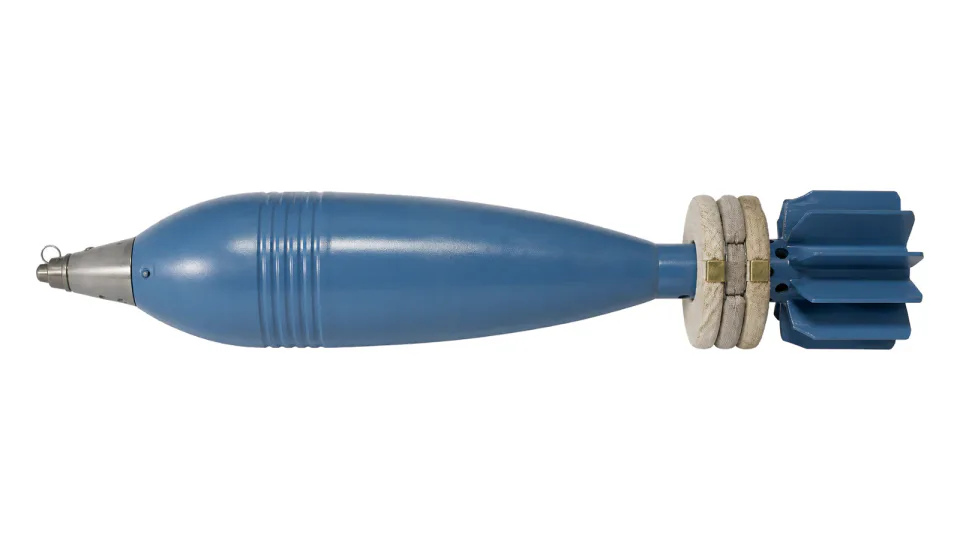

120 mm M64P3 white phosphorus smoke mortar bomb
120 mm white phosphorus smoke mortar bomb with 2.35 kg fill and point detonating fuze, reaching 6555 m.
Also written: 120
Enlarge 120 mm M64P3 white phosphorus smoke mortar bomb
Specification
| Length with fuze | 606 mm |
|---|---|
| Mass with fuze | 12.6 kg |
| Smoke charge | White phosphorus |
| Mass of smoke charge | 2.35 kg |
| Fuze | UT M88P1, point detonating |
| Muzzle safety when firing with ignition cartridge | 70 m |
| Service life (complete round, fuze, increment charge, body) | 15 years |
| Maximum range | 6555 m (barrel length 1500 mm) |
| Pressure in barrel | max. 922 bar |
| Operating temperature range | -30 deg C to +50 deg C |
All data provided for information purposes; final specification is defined per contract.
