Mk12P1-L
120 mm Mk12P1-L HE mortar bomb
Long-range 120 mm high-explosive mortar bomb with 2900 g hexolite fill, fired with ten increment charges to 9400 m.
Also written: 120

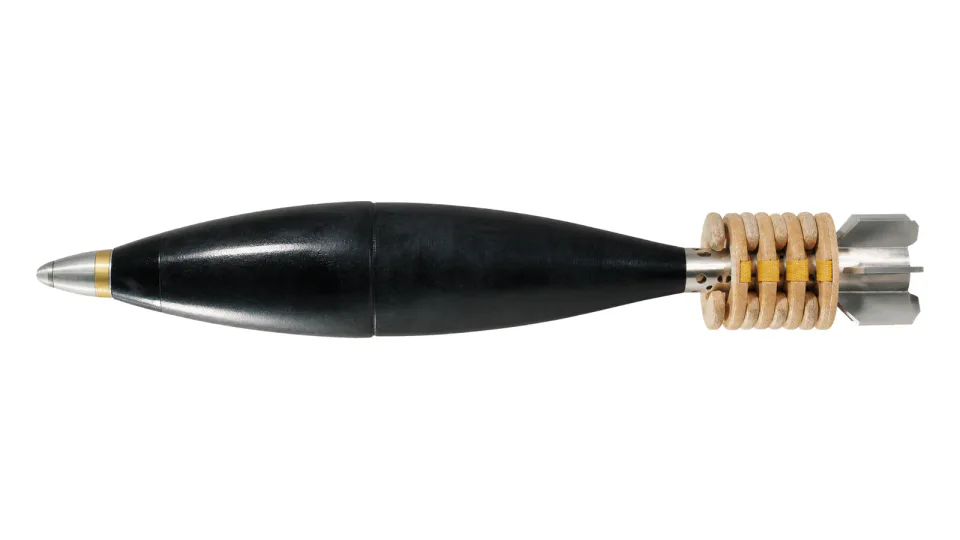

Enlarge 120 mm Mk12P1-L HE mortar bomb
Specification
| Length with fuze | 800 mm |
|---|---|
| Mass with fuze | 14800 g |
| Explosive charge | Hexolite (RDX/TNT) or trotyl (TNT) |
| Mass of explosive charge | 2900 g |
| Fuze | UTU M93P1 SQ/D, impact |
| Muzzle safety at lowest initial velocity | 50 m |
| Increment charges | Ignition cartridge and ten increment charges (0+10) |
| Ignition cartridge | M12, waterproof |
| Maximum range | 9400 m (0+10) (120 mm mortar M75, barrel length 1800 mm) |
| Minimum range | 275 m (0) |
| Max. mean operating pressure | 1300 bars |
| Killing range (1 penetration/m2) radius | 24 m |
| Operating temperature range | -46 deg C to +63 deg C |
| Packaging | 1 shell per carton, 5 cartons per wooden box 93 x 35 x 18 cm, 44 kg, 0.058 m3 |
All data provided for information purposes; final specification is defined per contract.
