MIP-1

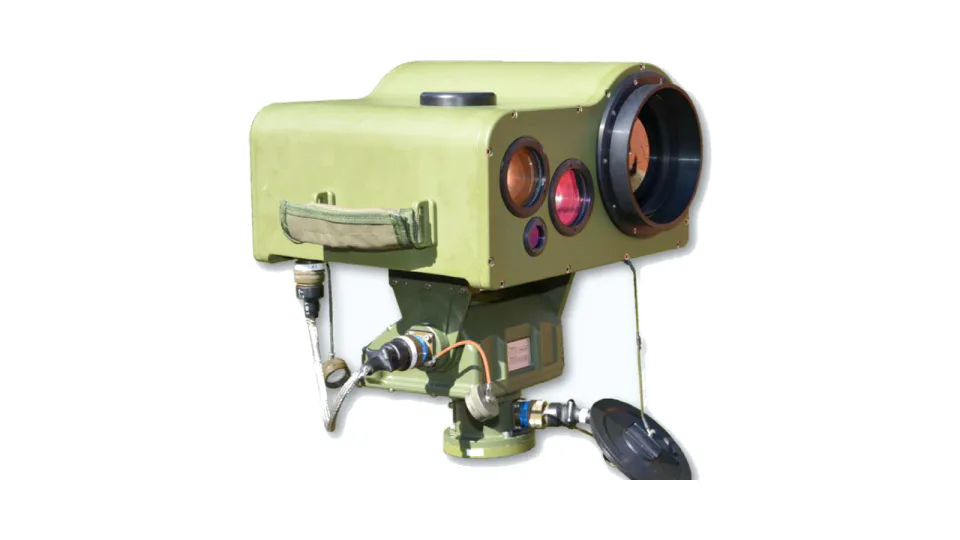

MIP-1 multisensor observation unit
Remotely controlled multisensor head with thermal camera, daytime camera and eye-safe laser rangefinder for real time observation and target position measurement.
Specification
| Laser type | Eye-safe |
|---|---|
| Laser wavelength | 1540 nm |
| Laser energy | <= 8 mJ |
| Laser beam divergence | <= 1 mrad |
| Distance measuring range | 80-5200 m |
| Distance measuring accuracy | +/-5 m |
| Measuring distance frequency | >= 6 measurements/min |
| Daytime camera | 30x optical zoom, 16x digital zoom |
| Thermal camera | Uncooled VOx, 800x600 pixels, 1-6x optical and 2x/4x digital zoom |
| Digital magnetic compass | North accuracy 0.45 deg (8 mils), 20 measurements/s |
| Angle measuring accuracy | 0.05 deg horizontal and vertical |
| Positioning speed | 0.001 deg/s to 30 deg/s |
| Data transfer | RS232 |
All data provided for information purposes; final specification is defined per contract. Full technical data sheets are issued on request against a stated end-user.
