FOU-3
FOU-3 forward observation unit
Forward observation unit with selectable eye-safe or Nd:YAG rangefinder, 12x day camera, thermal camera, GPS and digital compass.

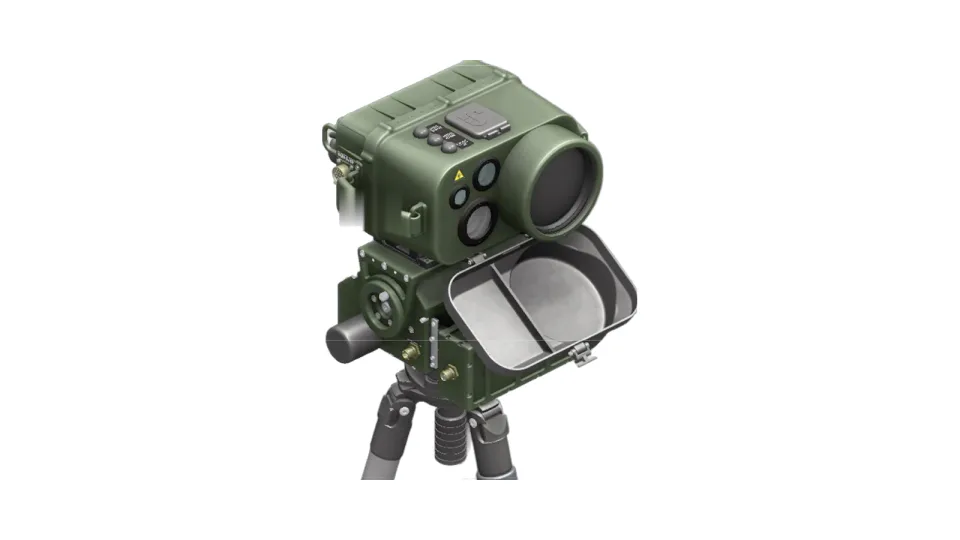

Show FOU-3 forward observation unit, view 1 of 2Show FOU-3 forward observation unit, front optics side
Enlarge FOU-3 forward observation unitEnlarge FOU-3 forward observation unit, front optics side
Specification
| Laser type | Eye-safe or Nd:YAG |
|---|---|
| Laser wavelength | 1540 nm or 1064 nm |
| Laser energy | <= 8 mJ or <= 15 mJ |
| Laser beam divergence | <= 1 mrad |
| Distance measuring range | >= 50-20000 m |
| Distance measuring accuracy | +/-2 m |
| Measuring distance frequency | >= 6 measurements/min |
| Daytime video camera | 1/1.8 in 16:9 CMOS, 12x magnification |
| Thermal camera | Uncooled VOx, 640x512 pixels, digital zoom 2x/4x/8x |
| Display | Digital TFT LCD, 3.5 in |
| Digital magnetic compass | North accuracy 0.45 deg (8 mils), 15 measurements/s |
| GPS position accuracy | CEP50; SPS <= 5 m, SBAS <= 5 m |
| Angle measuring accuracy | <= 1 mil |
| Angle measuring range | 0-6400 mils horizontal; +/-500 mils vertical |
All data provided for information purposes; final specification is defined per contract.
