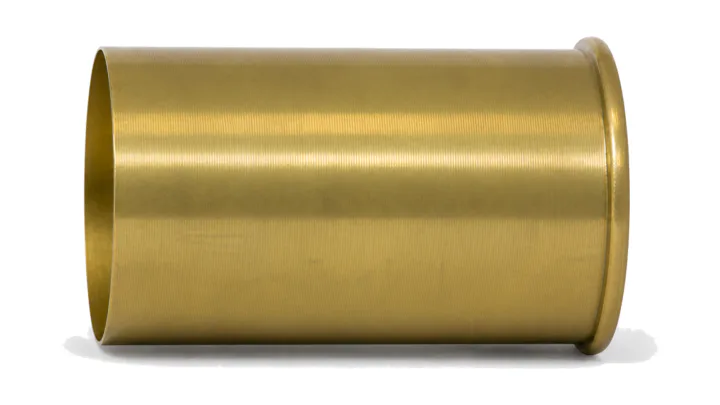

105 mm blank round
105 mm blank cartridge for training, saluting and live-fire simulation.
- Round mass
- 2.4 kg
- Round length
- max 153 mm
- Propellant charge mass
- 270 g
All artillery ammunition
Blank, salute and practice artillery rounds
Five line items cover the non-service natures. Four are blank or salute cartridges, built on the 76 mm M72P1 case, the 76 mm M48 B-1 case, a 105 mm case and the 122 mm M78 case; each is a cartridge case loaded with a propellant charge of NC-01 powder and a black powder No 7 igniter, fired by a KT-series gun primer, with a minimum muzzle safety distance of 100 m. The fifth is the 125 mm training round M17, which carries a training HEAT-T projectile instead of a blank charge.
- Line items
- 5
- Calibres
- 4
- Natures
- 2
- Standards
- NATO · Eastern
By calibre
Related supply domains
Models and specifications
—

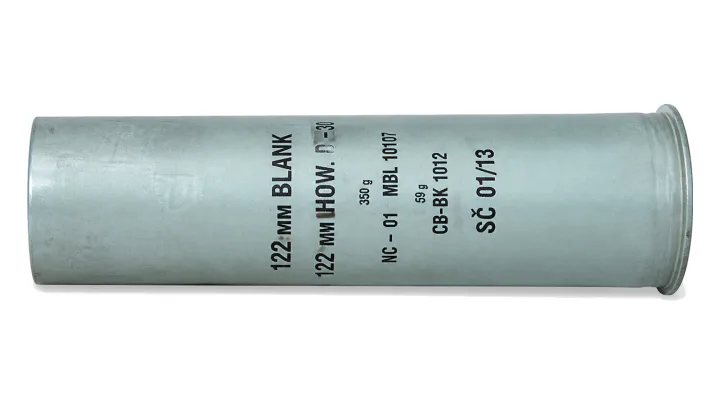

122 mm blank (salute) round
A 122 mm blank round made up of a cartridge case M78 loaded with a propellant charge and igniter and fired by a gun primer KT M71, used to simulate live firing during manoeuvres, exercises and tactical operations and for gun salutes.
- Calibre
- 122 mm
- Round length
- max 447 mm
- Round mass
- 4.41 kg

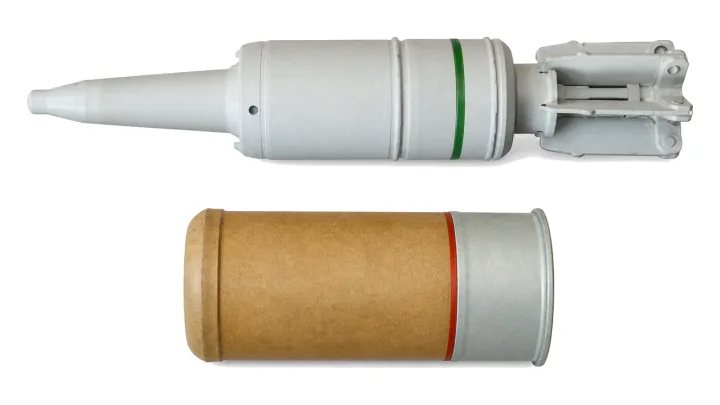

M17
125 mm training HEAT-T round M17
A 125 mm round with a training HEAT-T projectile M17 carrying a No 12 tracer and a base propellant charge M88, used for antiarmour direct-fire training with the 125 mm tank gun.
- Calibre
- 125 mm
- Projectile muzzle velocity
- 905 m/s
- Mean maximum pressure of powder gases
- 2942 bar

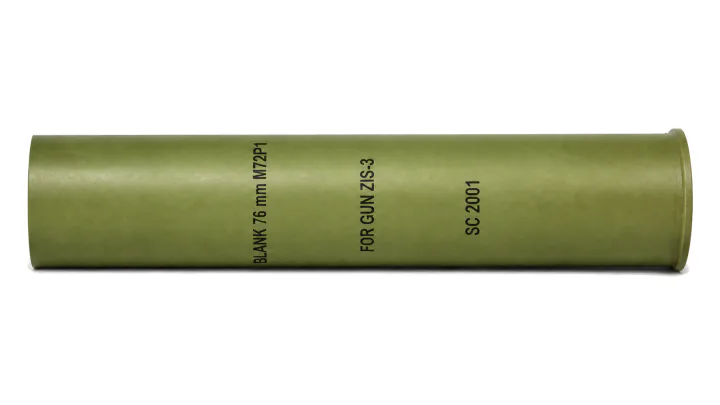

M72P1
76 mm blank (salute) round for gun M42 (ZIS-3)
A 76 mm blank (salute) round for live fire simulation during manoeuvres, exercises and tactical operations and for gun salutes, consisting of a 76 mm M72P1 cartridge case filled with a propellant charge and igniter, with gun primer KT M71.
- Calibre
- 76 mm
- Round length
- max 320 mm
- Round mass
- 1.91 kg
—

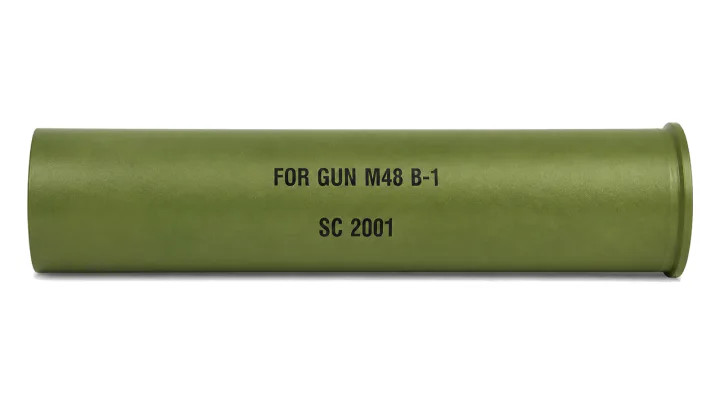

76 mm blank (salute) round for mountain gun M48 B-1
A 76 mm blank (salute) round for live fire simulation during manoeuvres, exercises and tactical operations and for gun salutes, consisting of a 76 mm M48 B-1 cartridge case filled with a propellant charge and igniter, with gun primer KT M71.
- Calibre
- 76 mm
- Round length
- max 320 mm
- Round mass
- 2 kg
How blank and practice items are specified in tender documents
A tender annex gives round mass and length, propellant charge mass, igniter mass, cartridge case designation and mass, the primer, the muzzle safety distance and the powder type, then the operating temperature band, the guns the source lists and the number of rounds per case. Noise level appears on three of the four blank records. The training round is specified instead like a service round, with velocity and range.
Designation families and what varies by model
The blank items are distinguished mainly by the cartridge case they are built on and by charge mass: 120 g at 76 mm on the M72P1 and M48 B-1 cases, 270 g at 105 mm, and 350 g in the 122 mm M78 case. Primers follow the weapon, KT M1 on the 105 mm item and KT M71 on the others. The 125 mm M17 stands apart, with a No 12 tracer, base propellant charge M88 and the KT-EU M84 primer.
Questions about this equipment
Do these records state a noise level?
Three of them do. Both 76 mm salute rounds are quoted at a minimum 120 dB and the 122 mm round at a minimum 100 dB. The 105 mm blank record gives a minimum muzzle safety distance of 100 m but no noise figure, and the 125 mm training round states neither.
What separates the two 76 mm entries?
The cartridge case and the gun. One is built on the 76 mm M72P1 case and listed for the gun M42 (ZIS-3) at 1.91 kg round mass; the other is built on the 76 mm M48 B-1 case and listed for the mountain gun M48 B-1 at 2 kg. Both quote 120 g of propellant and a 30 g igniter.
