105 mm blank round
105 mm blank cartridge for training, saluting and live-fire simulation.
Also written: 105

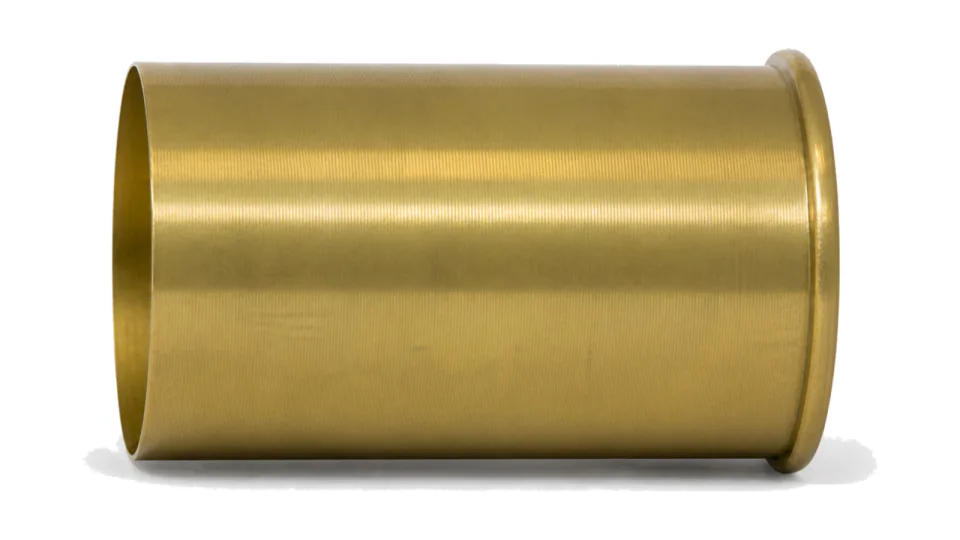

Enlarge 105 mm blank round
Specification
| Round mass | 2.4 kg |
|---|---|
| Round length | max 153 mm |
| Propellant charge mass | 270 g |
| Cartridge case mass | 1.9 kg |
| Cartridge case length | 153 mm |
| Igniter (black powder No 7) mass | 50 g |
| Primer | KT M1, percussion type |
| Muzzle safety | min. 100 m |
| Powder | NC-01 |
| Operating temperature | -30 to +50 deg C |
| Weapon compatibility | 105 mm howitzers M56, M2A1, M56/33 and M2A1/33 |
| Packaging | 21 rounds in a wooden case |
All data provided for information purposes; final specification is defined per contract.
