M55
76 mm HE shell M55
Separate-loaded 76 mm high-explosive round with TNT filling for the 76 mm gun M48B1, maximum range 8750 m.
- Maximum range
- 8750 m
- Muzzle velocity
- 398 m/s
- Fuze
- UTI M68, impact, superquick and delay action
Calibre
76 mm
Line items supplied in 76 mm, each with a dedicated page carrying the technical data available for that item so a tender line can be matched by designation before any correspondence begins. The same calibre appears under several names depending on the army and the standard; all of them are listed below and all reach these items. Quotations are issued to government end-users and licensed entities against a government-issued export licence and a verified End-User Certificate.
Also written: 76mm
- Line items
- 5
- Natures
- 2
- Standard
- Eastern
- Domains
- 1
Natures availableHESmoke
By domain
Related calibres
Line items
M70

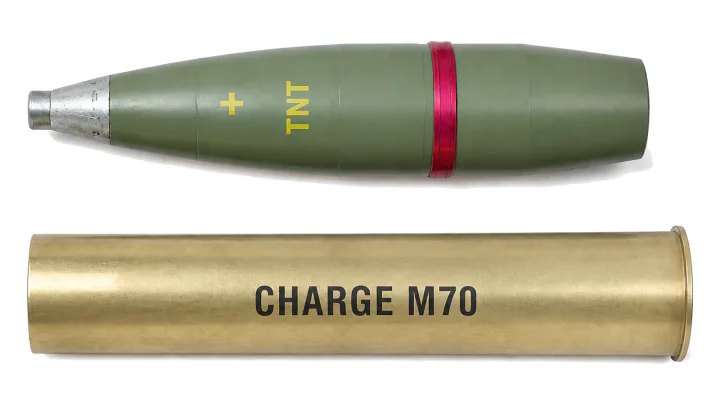

76 mm HE shell M70
Separate-loaded 76 mm HE M70 round with TNT-filled projectile for the M48B1 gun, with 398 m/s muzzle velocity and 8750 m maximum range.
- Maximum range
- 8750 m
- Muzzle velocity
- 398 m/s
- Fuze
- UTI, M68 P1
M72P1
76 mm blank (salute) round for gun M42 (ZIS-3)
A 76 mm blank (salute) round for live fire simulation during manoeuvres, exercises and tactical operations and for gun salutes, consisting of a 76 mm M72P1 cartridge case filled with a propellant charge and igniter, with gun primer KT M71.
- Calibre
- 76 mm
- Round length
- max 320 mm
- Round mass
- 1.91 kg
—
76 mm blank (salute) round for mountain gun M48 B-1
A 76 mm blank (salute) round for live fire simulation during manoeuvres, exercises and tactical operations and for gun salutes, consisting of a 76 mm M48 B-1 cartridge case filled with a propellant charge and igniter, with gun primer KT M71.
- Calibre
- 76 mm
- Round length
- max 320 mm
- Round mass
- 2 kg
M60

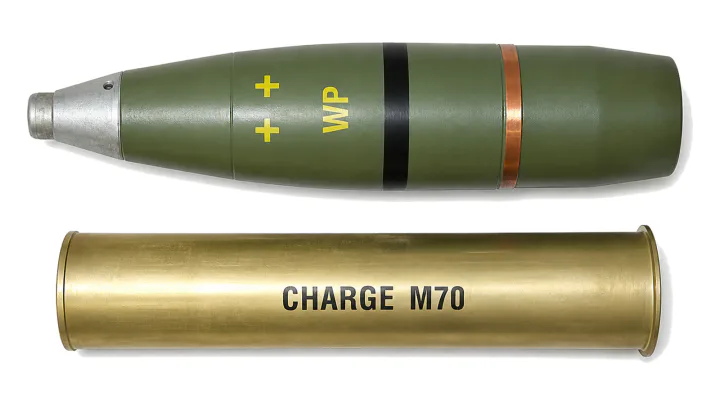

76 mm smoke shell M60
Separate-loaded 76 mm white-phosphorus smoke M60 round for the M48B1 gun, ballistically matched to the HE M70 round.
- Maximum range
- 8750 m
- Muzzle velocity
- 398 m/s
- Fuze
- UTI, M68 P1
All data provided for information purposes; final specification is defined per contract. Full technical data sheets are issued on request against a stated end-user.
