WRJ 2004 wideband radio jammer against RCIEDs
A rack-mounted modular wideband radio jammer against radio-controlled improvised explosive devices, covering up to 12 subbands with separate exciter-amplifier modules and used for convoy and VIP protection, anti-terror units, bomb squads and military bases.

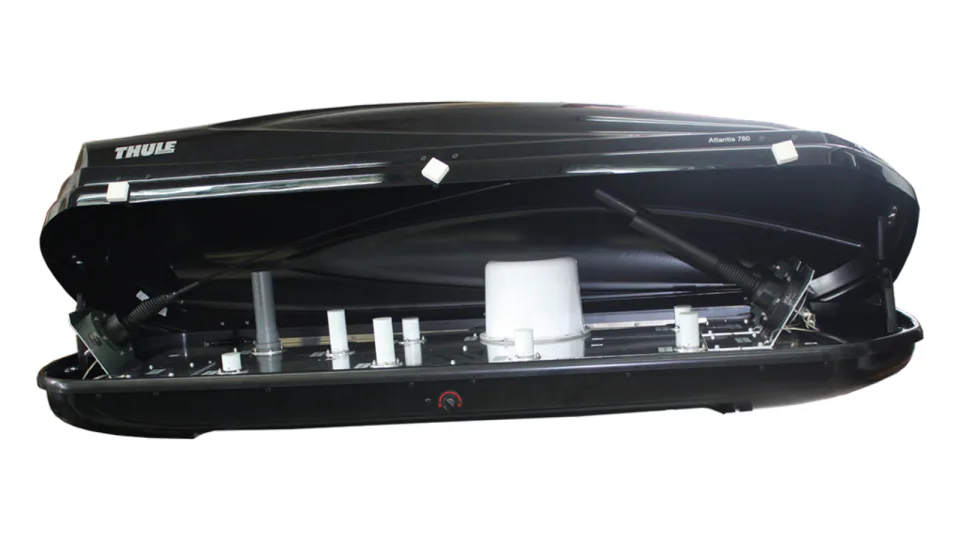

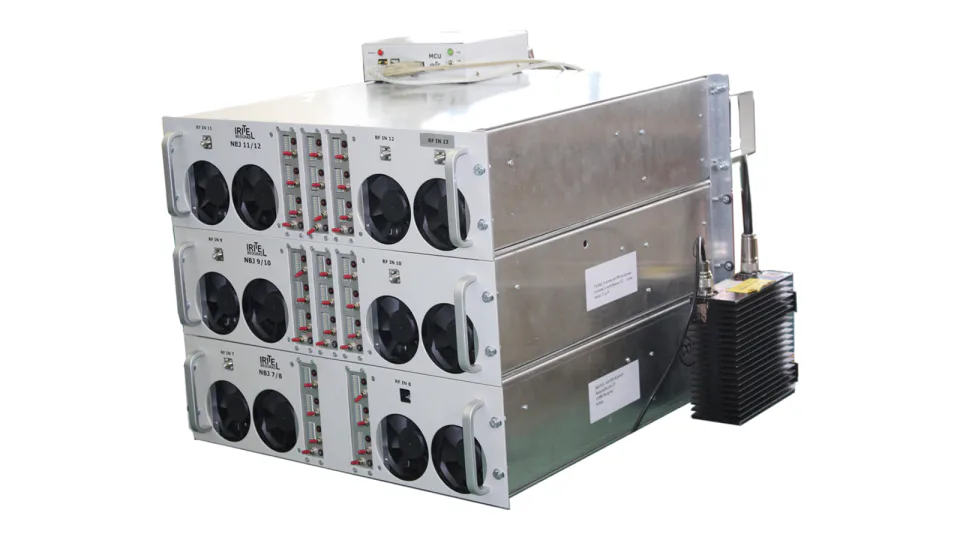

Show WRJ 2004 wideband radio jammer against RCIEDs, view 1 of 2Show WRJ 2004 wideband radio jammer against RCIEDs, Vehicle roof antenna enclosure
Enlarge WRJ 2004 wideband radio jammer against RCIEDsEnlarge WRJ 2004 wideband radio jammer against RCIEDs, Vehicle roof antenna enclosure
Specification
| Jamming range | up to ~200 m |
|---|---|
| Frequency range | 20 MHz to 3.6 GHz, separated in multiple subranges |
| Jamming signal type | wideband noise, FM sweep, multicarrier |
| Communications bands/channels | programmable as required |
| Total output power | up to 1100 W; 30-200 W per band, with output power amplifier protection (VSWR, temperature, input power) |
| DC power supply | 24 Vdc / 200 A, optionally 12 Vdc or 220 Vac |
| Remote control | via Ethernet interface (Windows application included): ON/OFF per band, power adjust, jamming signal bandwidth adjust, modulation type choice, system monitoring |
| Case type | 19" rack with separated power supply and exciter/power amplifier units |
| Antennas | external omnidirectional (360°) antennas along with suitable RF cables |
| Operating temperature | 5 °C to +45 °C |
| Subbands | up to 12, covered by separated exciter-amplifier modules mounted in racks; focus on 150 MHz, 450 MHz, GSM900, GSM1800, UMTS subbands |
All data provided for information purposes; final specification is defined per contract. Full technical data sheets are issued on request against a stated end-user.
