SPJ-1
SPJ-1 wideband self-protection radio jammer against RCIEDs
A 6U rack-mounted wideband self-protection jammer against radio-controlled improvised explosive devices, covering 20 MHz to 6 GHz in eight bands with up to 310 W total output and fed by two external multiport omnidirectional antennas.

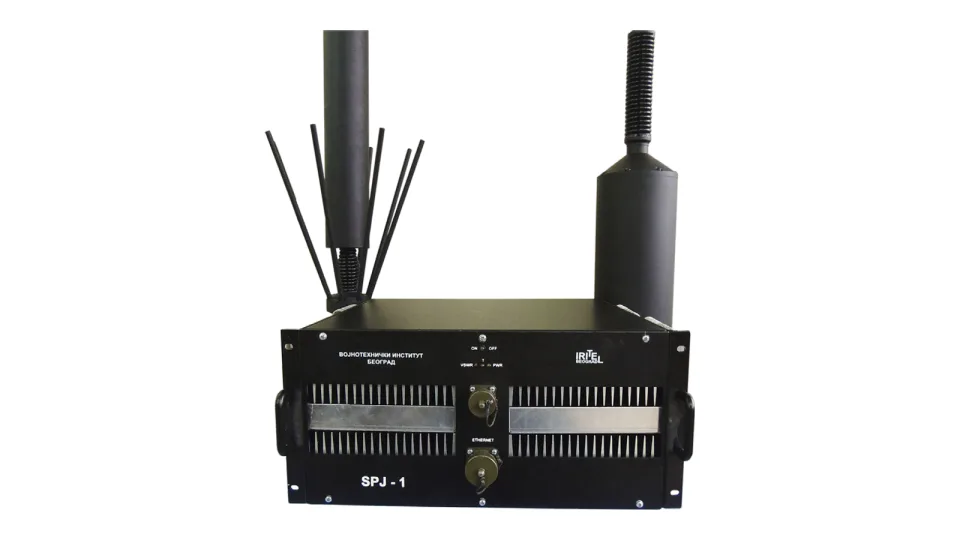

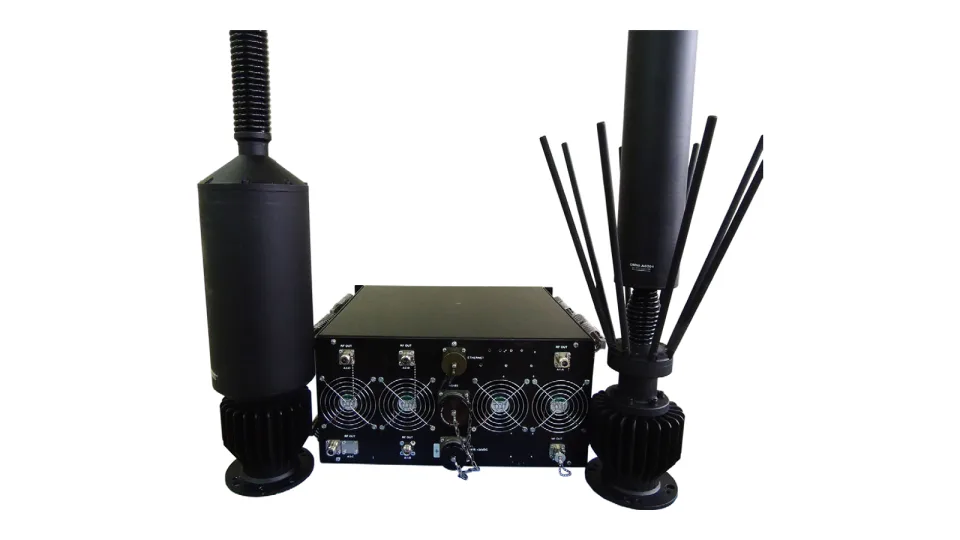

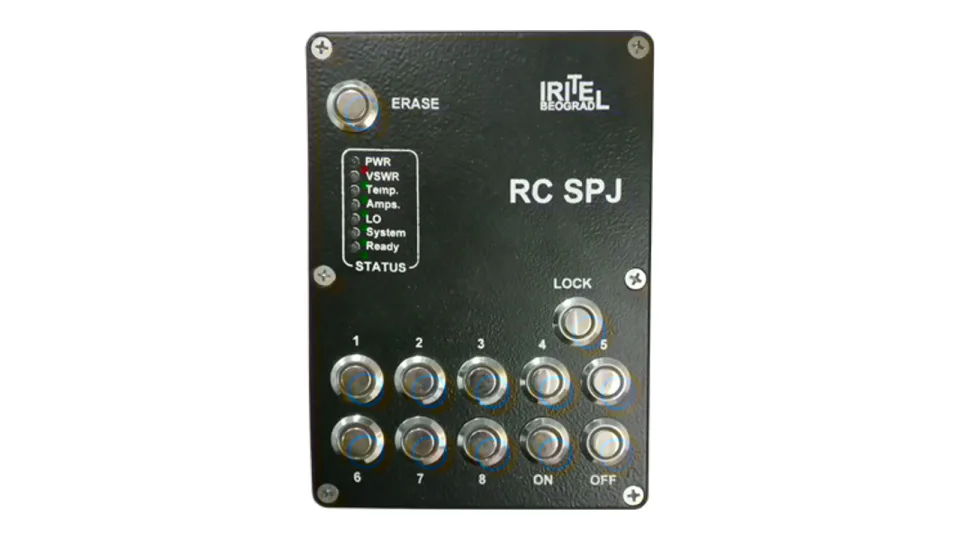

Show SPJ-1 wideband self-protection radio jammer against RCIEDs, view 1 of 3Show SPJ-1 wideband self-protection radio jammer against RCIEDs, Rear connector panel and antennasShow SPJ-1 wideband self-protection radio jammer against RCIEDs, RC SPJ remote control panel
Enlarge SPJ-1 wideband self-protection radio jammer against RCIEDsEnlarge SPJ-1 wideband self-protection radio jammer against RCIEDs, Rear connector panel and antennasEnlarge SPJ-1 wideband self-protection radio jammer against RCIEDs, RC SPJ remote control panel
Specification
| Jamming range | up to ~100 m (depends on terrain configuration) |
|---|---|
| Frequency range | 20 MHz – 6 GHz, separated in 8 bands |
| Jamming signal types | fast multisweep (50 µs) up to 3 subbands per every band; fast FM sweep (whole band, subbands) |
| Communications bands/channels | programmable as required |
| Total output power | up to 310 W; 10-100 W per band, with output power amplifier protection (VSWR, temperature, input power) |
| DC power supply | 24 Vdc / 51 A |
| Mission programming | via USB or LAN interface |
| Manual control | via preprogrammed push buttons |
| Remote control | via Ethernet interface (Windows application included): ON/OFF per band, power adjust, jamming signal bandwidth adjust, modulation type choice, system monitoring |
| Case type | amortized 19" rack, 6U |
| Weight | 45 kg |
| Antennas | two external multiport omnidirectional (360°) antennas along with suitable RF cables |
| Operating temperature | -15 °C to +55 °C |
All data provided for information purposes; final specification is defined per contract. Full technical data sheets are issued on request against a stated end-user.
