VPJ-2

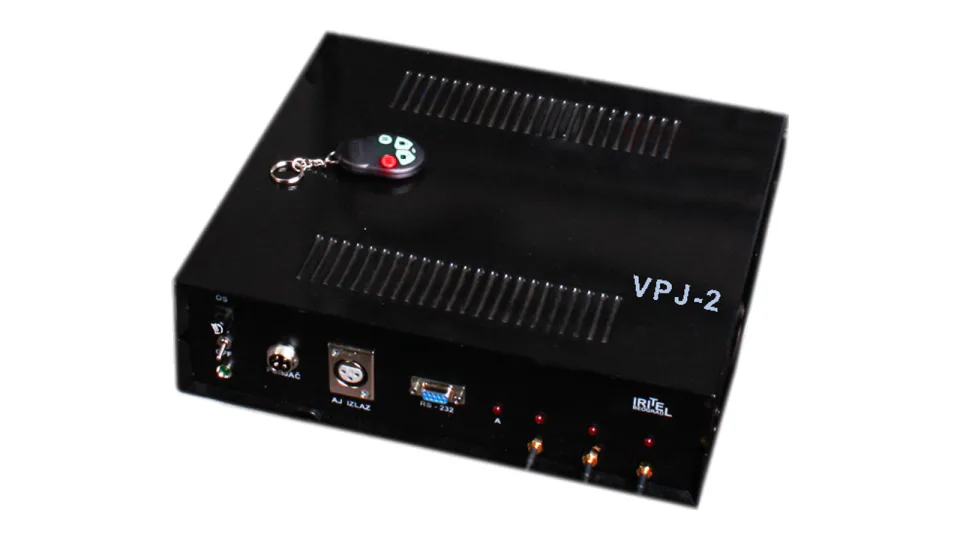

VPJ-2 vehicle protection jammer
A vehicle-mounted jamming unit for protection against radio-controlled improvised explosive devices and unauthorised use of cellular communication devices, blocking up to three frequency bands between 100 and 800 MHz simultaneously and independently within a 5-10 metre radius of the vehicle.
Specification
| Frequency ranges | BL1 100 - 200 MHz; BL2 200 - 400 MHz; BL3 400 - 800 MHz |
|---|---|
| Synthesizer type | digital |
| Jamming signal type | fast CW sweep signal, chirp (sweep time as low as 20 usec) |
| Output power | 27 dBm for all bands independently |
| Antenna system | three PCB antennas |
| Antenna frequency ranges | ANTENNA1 100 - 200 MHz; ANTENNA2 200 - 400 MHz; ANTENNA3 400 - 800 MHz |
| Impedance | 50 Ω unbalanced |
| Radiation (H-plane), beamwidth at -3 dB | 70° at 920 MHz; 60° at 1920 MHz |
| Radiation (E-plane), beamwidth at -3 dB | 70° at 920 MHz; 60° at 1920 MHz |
| Polarization | linear vertical |
| Gain | 5 dBi |
| S.W.R. in bandwidth | ≤ 3.0:1 from 100 to 200 MHz; ≤ 2.0:1 from 200 to 400 MHz; ≤ 1.8:1 from 400 to 800 MHz |
| Max. power | 0.5 Watt (CW) per band at 50°C |
| Connector | SMA-female |
| Dimensions | ANTENNA1 148.3 x 127 x 45 mm; ANTENNA2 148.3 x 127 x 30 mm; ANTENNA3 120.5 x 75.5 x 20 mm; JAMMER UNIT 300 x 265 x 80 mm |
| Power supply | 12 Vdc / 24 Vdc |
| Consumption | 40 VA |
| Operated temperature range | -20°C to +60°C |
| Effective jamming radius | 5-10 meters of vehicle surroundings (depending on signal strength at site) |
| Bands blocked | up to three frequency bands simultaneously and independently |
| Remote control | optional |
All data provided for information purposes; final specification is defined per contract. Full technical data sheets are issued on request against a stated end-user.
