PVS-7

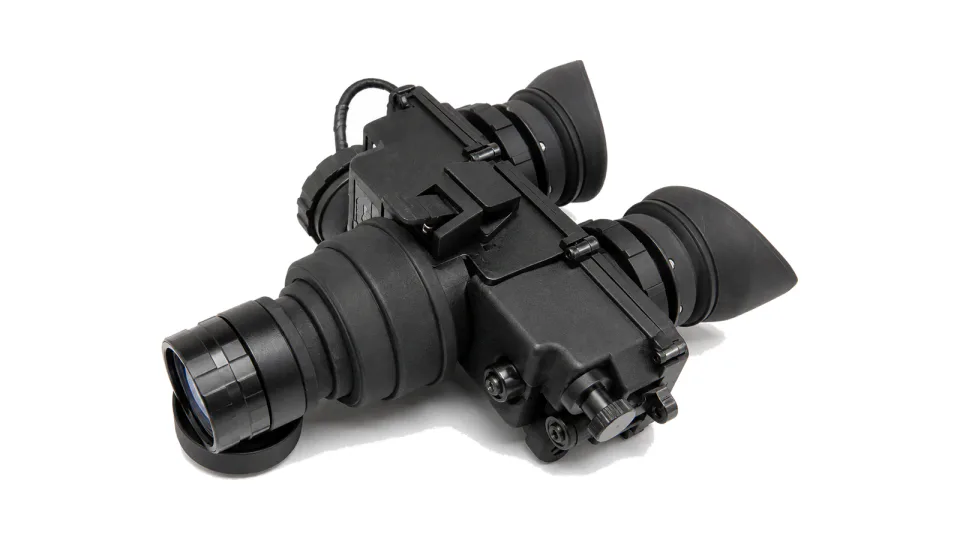

PVS-7 single tube night vision goggle
Single tube night vision goggle for observation, surveillance and land navigation, hand-held or head-mask worn, with built-in IR illuminator and ABC/BSP.
Enlarge PVS-7 single tube night vision goggle
Specification
| Magnification | X1 |
|---|---|
| Field of view | 40 deg |
| Objective focal length | 26 mm |
| Focus range | 0.25 m to infinity |
| Diopter adjustment | +2 to -6 |
| Exit pupil / eye relief | 10 mm / 15 mm |
| Interpupillary distance | 53 to 72 mm |
| Input voltage | 2.2 to 3.1 VDC |
| Battery type | 2 x AA or NiCd |
| Optional objective | A-focal clip-on x3, x4, x5 |
| Goggle weight | 570 g |
| Length/Width/Height | 150x152x77 mm |
| Operating temperature | -45 deg C to +50 deg C |
| Immersion | 1 m for 30 min |
All data provided for information purposes; final specification is defined per contract.
