ANVG

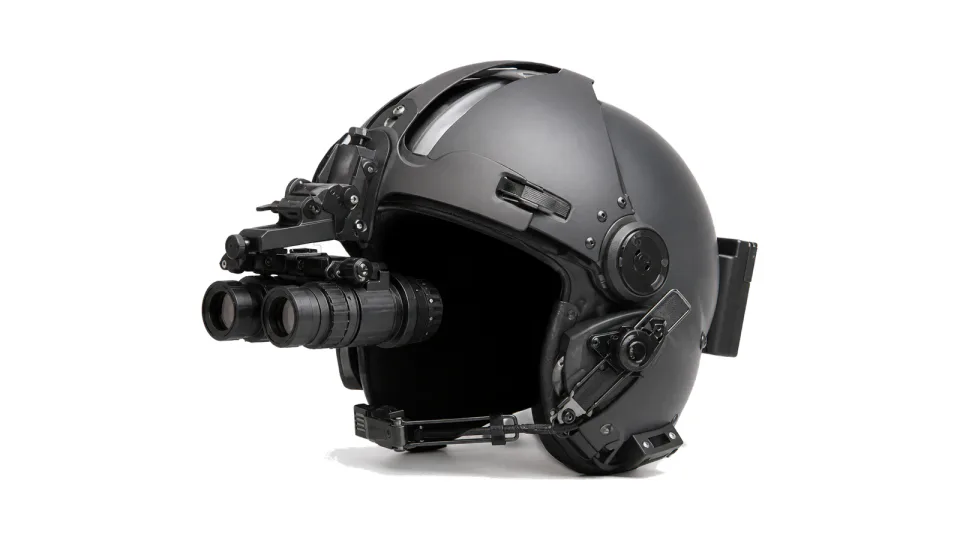

ANVG aviator night vision goggle
Helmet mounted double tube Gen III night vision goggle for night flight and navigation, with rear battery pack counterweight and automatic breakaway.
Enlarge ANVG aviator night vision goggle
Specification
| Image intensifier type | Generation III |
|---|---|
| Field of view | 40 deg |
| Magnification | X1 |
| Objective lens | 27 mm focal length, F# 1.23 |
| Minus blue filter | Class A (class B and C optional) |
| Minimum resolution | 0.95 cy/mrad |
| Image intensifier minimum resolution | 64-72 lp/mm |
| Eye relief | 25 mm |
| Diopter adjustment | +2 to -6 |
| Interpupillary adjustment | 52 to 72 mm |
| Automatic breakaway | 10 to 15 g |
| Weight of binocular | 570 g |
| Battery type | 2 x AA alkaline |
| Operating temperature range | -32 deg C to +52 deg C |
All data provided for information purposes; final specification is defined per contract. Full technical data sheets are issued on request against a stated end-user.
